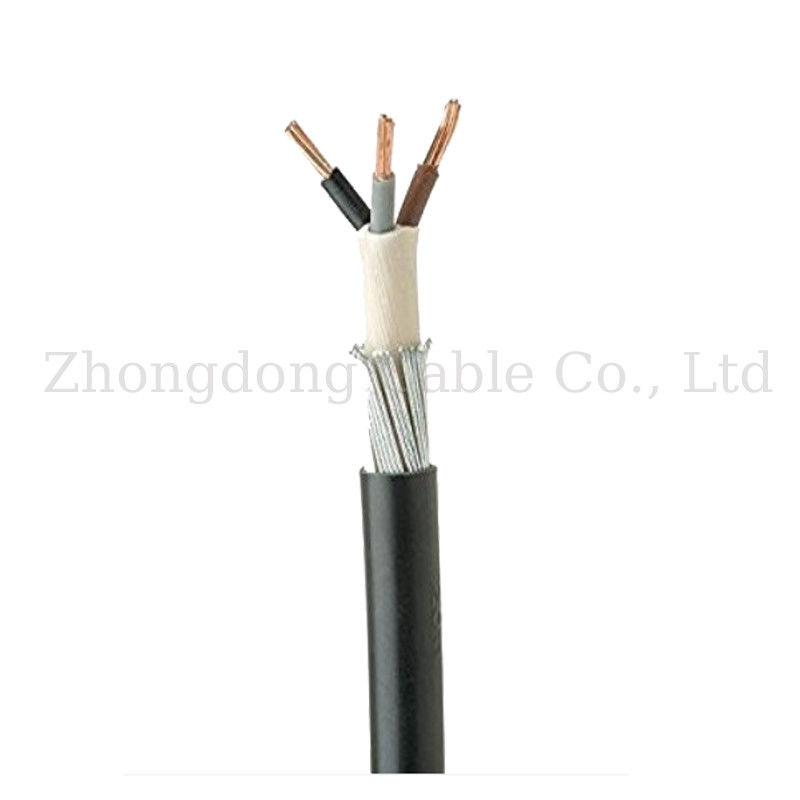

Cu XLPE PVC SWA PVC 3 Core Armored Cable XLPE Insulated Electrical Wire
| Armour: | Steel Wire | Insulation: | XLPE |
| Voltage: | 18/30 36kV 19/33 36 KV | Sheath: | LSZH |
| Conductor: | Copper Or Alumium | Application: | Outdoor |
| High Light: | PVC 3 Core Armored Cable,Armored XLPE Insulated Electrical Wire |
||
Cu/XLPE/PVC/SWA/PVC Armoured Electrical Cable XLPE Insulated Cable 3 Core
Application
Armored cables designed for permanent installations, suitable for both indoor and outdoor use, whether installed in air or underground.They can be mounted on walls, placed in cable ducts, or laid on cable trays.These cables are not intended for installation in wet or submerged conditions.
Characteristics
- Size: 3 core 1.5mm-35mm
- Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005
- Insulation: XLPE (Cross-Linked Polyethylene)
- Bedding: PVC (Polyvinyl Chloride)
- Multi Core: SWA (Steel Wire Armour)
- Sheath: PVC (Polyvinyl Chloride)
- Sheath colour: black
- Voltage rating: 21/35kV
- Temperature rating: 0°C to +70°C
- Minimum bending radius: 6 x overall diameter
Construction
- Conductor :Class 2 stranded copper conductor
- Insulation :XLPE (Cross-Linked Polyethylene)
- Bedding :LSZH (Low Smoke Zero Halogen)
- Armour :SWA (Steel Wire Armour)
- Sheath :LSZH (Low Smoke Zero Halogen)
Specification
|
Specification |
Outer diameter |
Approx. outer diameter of cable |
Approx. weight of cable |
Max. D.C. resistance of conductor at 20℃ |
||
|
mm2 |
mm |
mm |
kg/km |
Ω/km |
||
|
|
|
|
Cu |
Al |
Cu |
Al |
|
3×50 |
8.4 |
80.4 |
10082 |
9222 |
0.387 |
0.641 |
|
3×70 |
10 |
84.1 |
11219 |
9979 |
0.268 |
0.443 |
|
3×95 |
11.5 |
87.6 |
12487 |
10762 |
0.193 |
0.32 |
|
3×120 |
13 |
92 |
13784 |
11611 |
0.153 |
0.253 |
|
3×150 |
14.5 |
94.4 |
14923 |
12236 |
0.124 |
0.206 |
|
3×185 |
16.2 |
98.8 |
16650 |
13294 |
0.0991 |
0.164 |
|
3×240 |
18.4 |
103.3 |
18842 |
14427 |
0.0754 |
0.125 |
|
3×300 |
20.5 |
108.2 |
21293 |
15746 |
0.0601 |
0.1 |
|
3×400 |
23.5 |
114.7 |
24939 |
17862 |
0.047 |
0.0778 |
