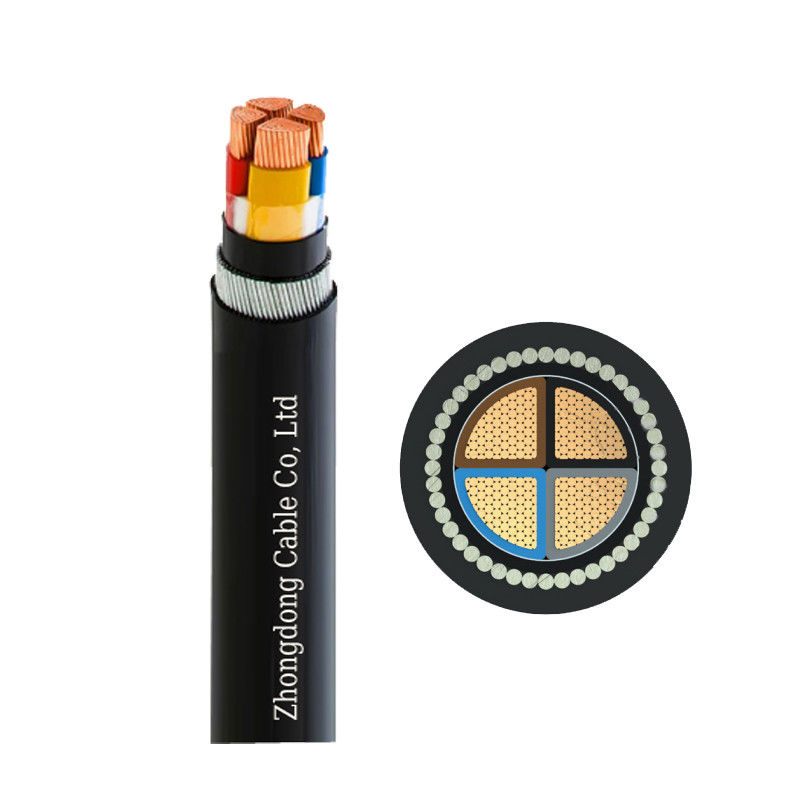

SWA Steel Wire Armored Low Voltage Cable Copper Conductor XLPE Insulted 0.6/1 KV
Application
The Cable uses in power networks, undergrand,outdoor and indoor applications and for use in cable ducting.
Suitable for use in power distribution lines with rated voltage 0.6/1KV.
For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Wire
- Outer Sheath PVC
Characteristic
- Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:15D multi core:12D (D is the actual outer diameter of the cable)
Specification
|
Specification
|
Outer diameter of conductor
|
Nominal sheath thickness
|
Approx. outer diameter of cable
|
Approx. weight of cable
|
|
mm2
|
mm
|
mm
|
mm
|
kg/km
|
|
|
|
|
|
CU
|
AL
|
|
4X4 RE
|
2.24
|
1.8
|
19.1
|
770
|
670
|
|
4X6 RE
|
2.76
|
1.8
|
20.3
|
916
|
772
|
|
4X10 CC
|
3.8
|
1.8
|
22.3
|
1148
|
895
|
|
4X16 CC
|
4.8
|
1.8
|
24.5
|
1472
|
1070
|
|
4X25 CC
|
6
|
1.8
|
27.5
|
1942
|
1317
|
|
4X35 CC
|
7
|
1.8
|
29.5
|
2386
|
1521
|
|
4X50 SM
|
8
|
1.9
|
32.9
|
3209
|
2036
|
|
4X70 SM
|
9.5
|
2.1
|
36.7
|
4197
|
2502
|
|
4X95 SM
|
11
|
2.3
|
40.5
|
5362
|
3016
|
|
4X120 SM
|
12.4
|
2.4
|
45.3
|
6908
|
3940
|
|
4X150 SM
|
13.8
|
2.6
|
50
|
8327
|
4683
|
|
4X185 SM
|
15.4
|
2.7
|
54.2
|
10044
|
5466
|
|
4X240 SM
|
17.5
|
2.9
|
60.4
|
12672
|
6666
|
|
4X300 SM
|
19.6
|
3.1
|
65.7
|
15302
|
7795
|
About US
Projects
Partner
Why US?
FAQ
Why use XLPE insulation instead of PVC?
XLPE (Cross-Linked Polyethylene) offers higher thermal stability (up to 90°C), better resistance to environmental stress, and longer lifespan than PVC.
What are the benefits of steel wire armor (SWA)?
SWA provides mechanical protection against physical damage, rodent attacks, and high tensile strength for underground or harsh environments.
Is this cable suitable for outdoor or underground use?
Yes, the SWA design ensures durability in outdoor and underground installations, resisting moisture and soil pressure.
What conductor material is used, and why?
Copper conductors are standard for high conductivity, corrosion resistance, and reliability in power transmission.
Can this cable be used in industrial settings?
Absolutely, it’s ideal for industrial applications due to its armor protection and ability to handle high mechanical stress.
What safety features does the SWA design provide?
The armor acts as a grounding layer, enhancing electrical safety by preventing external interference and fault currents.
