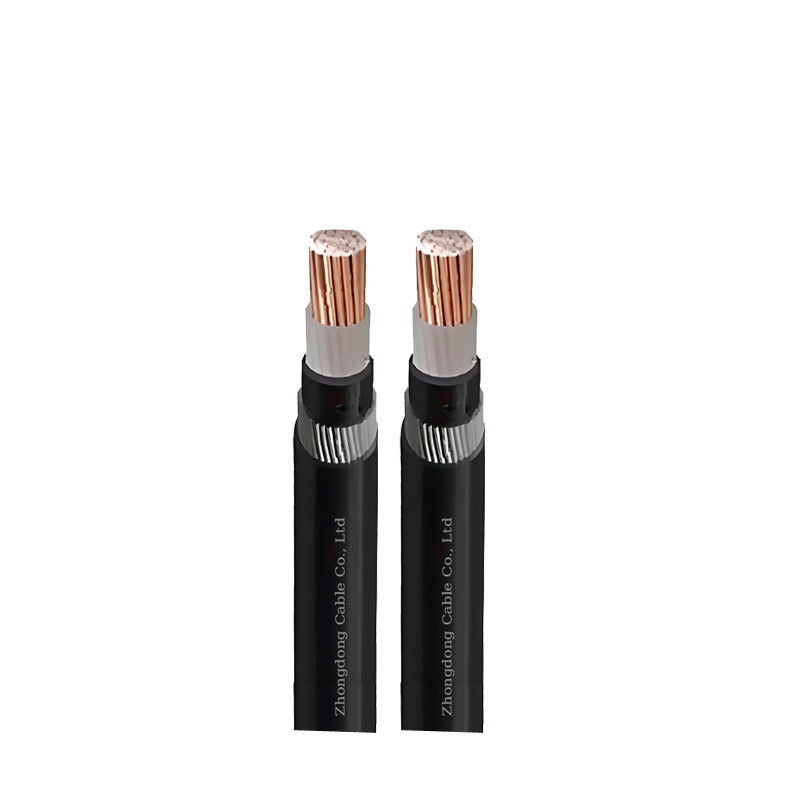

Steel Wire Armored SWA PVC Insulated Power Cable 0.6KV 1kV Low Voltage
| Voltage: | 600V, 1000V | Standard: | IEC60502-1 |
| Feature: | LSZH | conductor: | Copper Or Aluminium |
| Type: | PVC Insulated, PVC Sheath, PVC Jacket | Armour: | Steel Wire |
| High Light: | PVC Insulated Power Cable 0.6KV,1kV PVC Insulated Power Cable,Steel Wire Armored Power Cable 0.6KV |
||
PVC Insulated Steel Wire Armored SWA Low Voltage Cable 0.6/1kV
Application
- Architecture and Infrastructure: Used for internal power distribution, lighting systems, and distribution box connections in buildings, with flexibility to adapt to complex indoor wiring.
- Industry and Manufacturing:Support the stable operation of factory equipment power supply, production line energy transmission, and industrial automation systems, especially suitable for scenarios with high mechanical strength requirements.
- Underground and public facilities:Armored cable design can withstand the mechanical pressure of underground burial environments and is commonly used in urban power grids, road lighting, and underground pipeline systems.
- Energy and Power Systems:Used for low-voltage power transmission in substations and power plants to meet the demand for short distance and high-efficiency transmission
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:PVC
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Wire
- Outer Sheath PVC
Features
- PVC (polyvinyl chloride) insulation provides chemical resistance, flame retardancy, and aging resistance, ensuring long-term stability in diverse environments.
- The PVC sheath enhances durability against moisture and mechanical stress while maintaining flexibility
- Steel wire armor offers robust mechanical protection, resisting external crushing forces and corrosion, ideal for underground installation or harsh industrial settings.
- The armored layer improves tensile strength and safeguards internal conductors from physical damage
Specification
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Lining thickness |
Nominal thickness of steel wire |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
3×1.5 |
1.38 |
0.8 |
1 |
0.8 |
1.8 |
15.1 |
376 |
|
3×2.5 |
1.78 |
0.8 |
1 |
0.8 |
1.8 |
15.9 |
432 |
|
3×4 |
2.25 |
1 |
1 |
1.25 |
1.8 |
18.8 |
680 |
|
3×6 |
2.76 |
1 |
1 |
1.25 |
1.8 |
19.8 |
776 |
|
3×10 |
4 |
1 |
1 |
1.25 |
1.8 |
22.5 |
1009 |
|
3×16 |
5 |
1 |
1 |
1.25 |
1.8 |
24.6 |
1265 |
|
3×25 |
6.1 |
1.2 |
1 |
1.6 |
1.8 |
28.6 |
1855 |
|
3×35 |
7.2 |
1.2 |
1 |
1.6 |
1.8 |
31.2 |
2248 |
|
3×50 |
8.4 |
1.4 |
1 |
1.6 |
2 |
35.1 |
2835 |
|
3×70 |
10 |
1.4 |
1.2 |
2 |
2.1 |
40.2 |
3962 |
|
3×95 |
12 |
1.6 |
1.2 |
2 |
2.2 |
45.6 |
5070 |
|
3×120 |
13 |
1.6 |
1.2 |
2 |
2.3 |
47.9 |
5923 |
|
3×150 |
14.9 |
1.8 |
1.4 |
2.5 |
2.5 |
54.7 |
7676 |
|
3×185 |
16.5 |
2 |
1.4 |
2.5 |
2.7 |
59.5 |
9116 |
|
3×240 |
18.4 |
2.2 |
1.6 |
2.5 |
2.9 |
65.3 |
11289 |
|
3×300 |
21 |
2.4 |
1.6 |
2.5 |
3.1 |
72.2 |
13681 |
|
3×400 |
23.4 |
2.6 |
1.8 |
3.15 |
3.4 |
80.6 |
17764 |
Contact us for more information
OUR FACTORY
PROJECTS
PARTNER
DELIVERY AND PACAKGE
FAQ
Q1. Are you a manufacture or trading company?
A1.We are a professional manufacturer since 2oo4 and engaged in the production of wire and cable processing.The factory is located in Hebei Province,China,and is a leading enterprise in the local cable industry.
Q2. Can I get free samples?
A2.Of course,we could provide free samples and you charge the shipping cost.
Q3.How long is delivery time?
A3.lt usually takes 3-10days for sample order and 10-30days for big order.
Q4.What is your payment term?
A4.Our payment term is usually T/T30% in advanced,the balance before picking up the goods
Q5.what is the package of the cable?
A5.The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirements.
Q6.Do you accept OEM or ODM service?
A6.Of course,we could customize the products according to your specific requirements.
