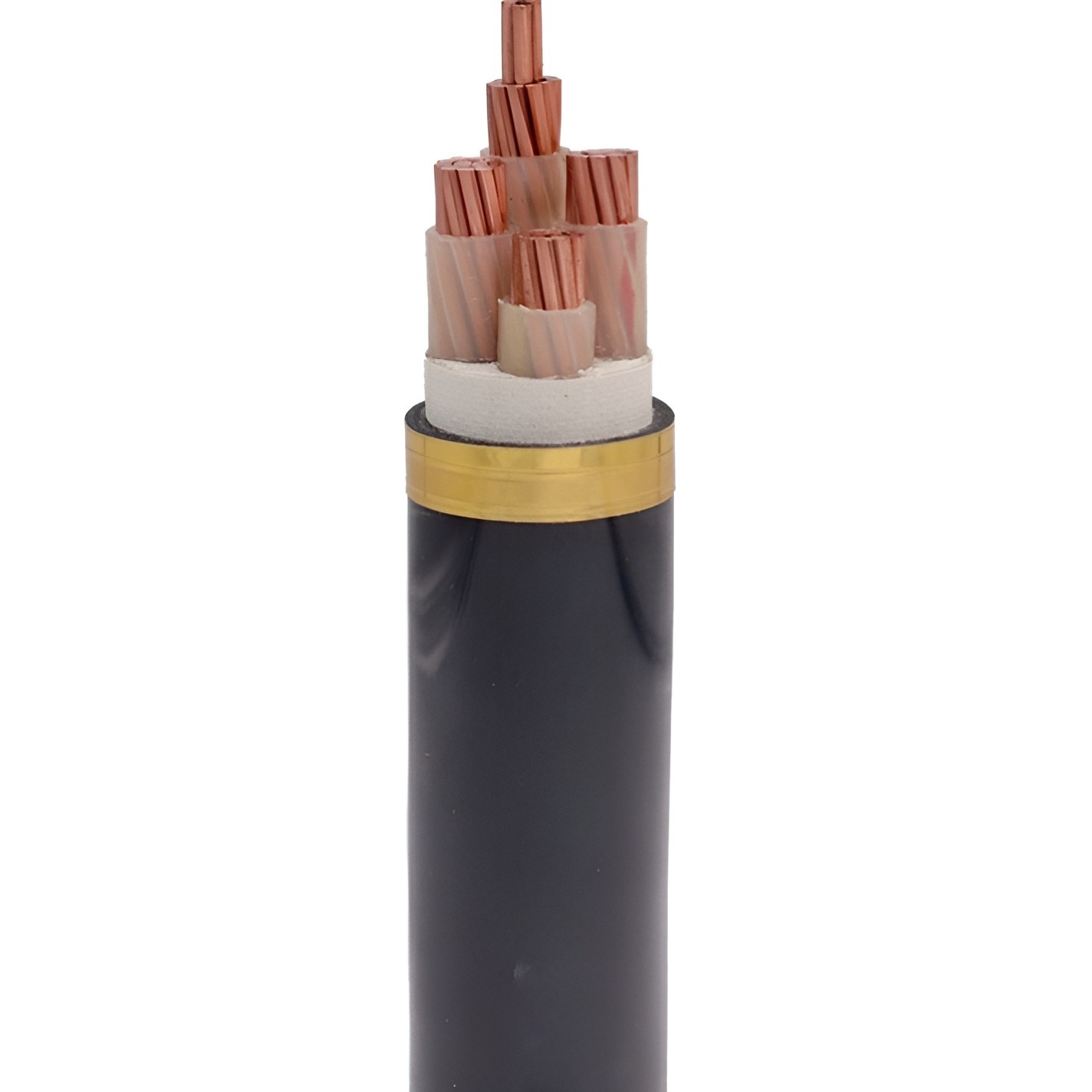

Name: Low Voltage Cable with Copper Conductor PVC Sheathed Non-Armoured for Reliable Power Transmission
Brand: Zhongdong Cable Co., Ltd.
SKU: Low Voltage
Availability: InStock

Detail Information

Insulation Material:	XLPE	Application:	Construction
Conductor Material:	Copper	Sheath:	PVC
Cores:	4core	Armour:	Unarmoured
Highlight:	Non Armoured XLPE Insulated Cable , LV Xlpe Insulated PVC Sheathed Cable

Product Description

LV Low Voltage XLPE Insulated Cable Copper Conductor PVC Sheathed Non Armoured

High-performance low voltage power cable with XLPE insulation and PVC sheath, designed for reliable electrical transmission in various industrial applications.

Applications

Machinery & Equipment Wiring - Reliable power transmission for motors, pumps, and control systems
Temporary Power Supply - Events, construction sites, and portable installations (where mechanical protection is not critical)

Key Features

XLPE Insulation - Higher thermal resistance (up to 90°C) compared to standard PVC cables
PVC Sheath - Moisture, abrasion, and chemical resistance for indoor/outdoor use
Copper Conductor - Excellent conductivity, flexibility, and corrosion resistance
Non-Armoured (Unarmoured) - Lightweight, cost-effective, and easy to install in conduits, trays, or ducts

Standards & Compliance

IEC 60502-1 / BS 5467 / VDE 0276-603 (for XLPE-insulated LV cables). Suitable for dry, damp, and moderately harsh environments (not recommended for direct burial without additional protection).

Cable Construction

Conductors: Plain solid annealed copper
Insulation: Cross-linked Polyethylene (XLPE)
Outer Sheath: Polyvinyl chloride (PVC) or Low Smoke Zero Halogen (LSZH)

Technical Parameters

No. of cores and nominal cross section (mm²)	Thickness of Insulation (mm)	Thickness of Sheath (mm)	Approx. overall Diameter (mm)	Approx. weight (kg/km)	Max. DC resistance of conductor(20℃) (Ω/km)	Current carrying capacity In Air(A)	Current carrying capacity In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640
