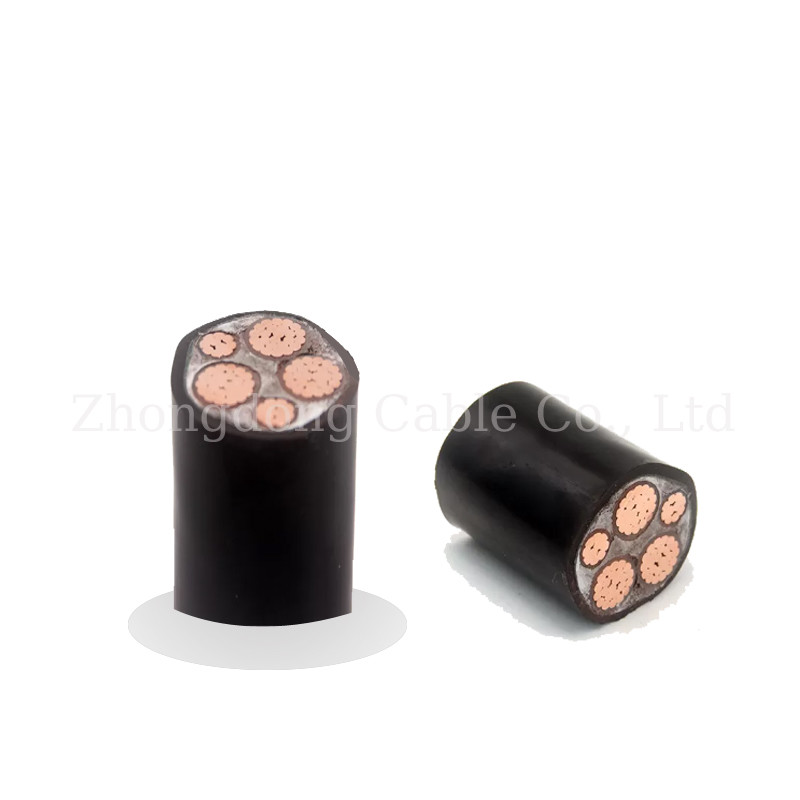

YJV22 N2XRY Galvanized Steel Tape Armoured Cable STA 600V 1000V Custom Length
| Item No: | YJV22 N2XRY | Armour: | Galvanized Steel Tape |
| Voltage: | 600V, 1000V | Insulation: | XLPE |
| Sheath: | PVC | Price: | Factory Price |
| High Light: | N2XRY Galvanized Steel Tape Armoured Cable,600V Steel Tape Armoured Cable |
||
YJV22 N2XRY Galvanized Steel Tape Armoured Electrical Cable STA 0.6/1kV
Application
N2XRY cables are versatile power and control cables primarily used in fixed installations requiring durability and flexibility.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Tape Armoured
- Outer Sheath PVC
Specification
|
General type |
VDE type |
Description |
Application |
|
CU/XLPE/PVC (AL/ XLPE /PVC) |
N2XY(NA2XY) |
Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable |
Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
|
CU/PVC/PE (AL/ XLPE /PE) |
N2X2Y(NA2X2Y) |
Cu conductor(Al conductor)XLPE insulated PE sheathed power cable |
|
|
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
|
CU/XLPE/STA/PE (AL/XLPE/STA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable |
|
|
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PVC sheathed power cable |
|
|
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PE sheathed power cable |
|
|
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
|
CU/XLPE/SWA/PE (AL/PVC/SWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable |
|
|
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PVC sheathed power cable |
|
|
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PE sheathed power cable |
