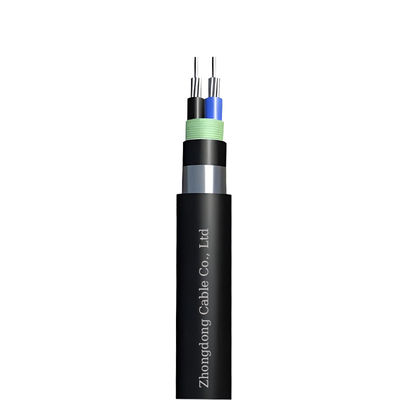

0.6/1kV PVC Insulated Power Cable Two Core Steel Tape Armoured NYBY NAYBY
| Voltage: | 600V, 1000V | Item No: | NYBY NAYBY |
| Insulation: | PVC | Core: | 2 Cores |
| Armour: | Steel Tape | Jacket: | PVC |
| High Light: | PVC Insulated Power Cable Two Core,Steel Tape Armoured PVC Power Cable |
||
0.6/1kV PVC Insulated Power Cable two core Steel Tape Armoured NYBY NAYBY
Application
- Low voltage power transmission: widely used in low-voltage transmission lines, internal distribution systems of buildings, and motor windings to meet conventional power transmission needs.
- Installation in complex environments: Suitable for corrosive environments such as chemical enterprises and humid places, due to its chemical corrosion resistance, it can ensure long-term stable operation.
- Daily infrastructure: used for manufacturing daily and industrial infrastructure such as wires and cables, pipes, packaging films, etc., covering household, commercial, and industrial electricity scenarios.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:PVC
- Filler: Non-hygroscopic material
- Inner sheath:PVC
- Armouring: Steel Tape Armoured
- Outer sheath:PVC
Advantage
- Excellent electrical insulation: It can maintain stable insulation effect in humid environments, effectively prevent current leakage, and ensure transmission safety.
- Strong corrosion resistance: It has high resistance to chemical substances such as acid and alkali, oil stains, etc., and is suitable for corrosive environments such as chemical and marine industries.
- Reliable mechanical performance: It has high tensile and bending strength, adapts to complex installation conditions, and is not easily broken by external forces.
- Outstanding flame retardant performance: When exposed to fire, a carbonized layer is formed to block the spread of flames and reduce the risk of fire.
Characteristic
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Multi-core armoured cable: 12 x OD
Spesification
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
2×1.5 RE |
12 |
217.7 |
– |
12.1 |
– |
|
2×2.5 RE |
12.8 |
254.4 |
223.3 |
7.41 |
12.1 |
|
2×4 RE |
14.5 |
331.3 |
281.5 |
4.61 |
7.41 |
|
2×6 RE |
15.5 |
397.5 |
322.9 |
3.08 |
4.61 |
|
2×10 CC |
17.6 |
548.1 |
423.7 |
1.83 |
3.08 |
|
2×16 CC |
19.6 |
704.2 |
505.3 |
1.15 |
1.91 |
|
2×25 CC |
22.8 |
954.8 |
643.9 |
0.727 |
1.2 |
|
2×35 CC |
24.8 |
1184.3 |
749 |
0.524 |
0.868 |
|
2×50 SM |
22.6 |
1405.6 |
783.8 |
0.387 |
0.641 |
|
2×70 SM |
25.1 |
1842.1 |
971.5 |
0.268 |
0.443 |
|
2×95 SM |
30.1 |
2707.3 |
1525.9 |
0.193 |
0.32 |
|
2×120 SM |
32.3 |
3252.4 |
1760.1 |
0.153 |
0.253 |
|
2×150 SM |
35.5 |
3959.1 |
2093.7 |
0.124 |
0.206 |
|
2×185 SM |
38.8 |
4767.3 |
2466.7 |
0.0991 |
0.164 |
|
2×240 SM |
43.8 |
6103.7 |
3119.1 |
0.0754 |
0.125 |
|
2×300 SM |
48.3 |
7453.4 |
3722.7 |
0.0601 |
0.1 |
