Underground Galvanized Steel Wire Armored Cable XLPE Insulted NYR2Y NAYR2Y
| Application: | Underground | Armour: | Steel Wire |
| Insulation: | XLPE | Item No: | NYR2Y NAYR2Y |
| Sheath: | PVC | Conductor: | Copper Or Alumium |
| High Light: | Steel Wire Armored Cable XLPE Insulted,Underground Armored Cable XLPE Insulted,NYR2Y Steel Wire Armored Cable |
||

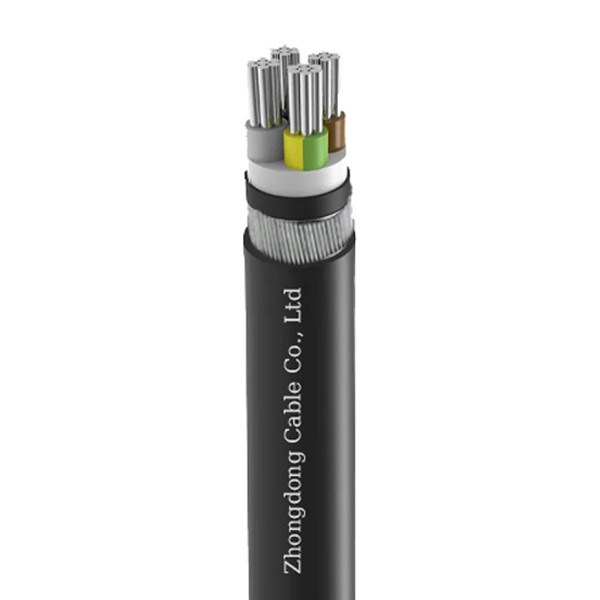

Underground Galvanized Steel Wire Armoured Electrical Cable XLPE Insulted NYR2Y NAYR2Y
Application
Used for electricity supply in low voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Tape Armoured
- Outer Sheath PVC
Technical data:
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
Product Type
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
1×10 CC |
11.8 |
283.2 |
222.8 |
1.83 |
13.08 |
|
1×16 CC |
12.8 |
356.3 |
257.3 |
1.15 |
1.91 |
|
1×25 CC |
14.4 |
481.1 |
326.4 |
0.727 |
1.2 |
|
1×35 CC |
15.4 |
595.4 |
378.8 |
0.524 |
0.868 |
|
1×50 CC |
17.2 |
782.2 |
472.9 |
0.387 |
0.641 |
|
1×70 CC |
18.8 |
1002.1 |
569 |
0.268 |
0.443 |
|
1×95 CC |
20.7 |
1285 |
697.2 |
0.193 |
0.32 |
|
1×120 CC |
22.2 |
1548 |
805.6 |
0.153 |
0.253 |
|
1×150 CC |
24.1 |
1879.8 |
951.7 |
0.124 |
0.206 |
|
1×185 CC |
26.2 |
2264.9 |
1120.3 |
0.0991 |
0.164 |
|
1×240 CC |
28.9 |
2853.8 |
1369 |
0.0754 |
0.125 |
|
1×300 CC |
31.6 |
3493.6 |
1637.5 |
0.0601 |
0.1 |
|
1×400 CC |
35.2 |
4530.9 |
2056.1 |
0.047 |
0.0778 |
|
1×500 CC |
40.2 |
5966.8 |
2873.3 |
0.0366 |
0.0605 |
|
1×630 CC |
45.2 |
7302.1 |
3404.3 |
0.0283 |
0.0469 |
|
2×1.5 RE |
12 |
217.7 |
– |
12.1 |
– |
|
2×2.5 RE |
12.8 |
254.4 |
223.3 |
7.41 |
12.1 |
|
2×4 RE |
14.5 |
331.3 |
281.5 |
4.61 |
7.41 |
|
2×6 RE |
15.5 |
397.5 |
322.9 |
3.08 |
4.61 |
|
2×10 CC |
17.6 |
548.1 |
423.7 |
1.83 |
3.08 |
|
2×16 CC |
19.6 |
704.2 |
505.3 |
1.15 |
1.91 |
|
2×25 CC |
22.8 |
954.8 |
643.9 |
0.727 |
1.2 |
|
2×35 CC |
24.8 |
1184.3 |
749 |
0.524 |
0.868 |
|
2×50 SM |
22.6 |
1405.6 |
783.8 |
0.387 |
0.641 |
|
2×70 SM |
25.1 |
1842.1 |
971.5 |
0.268 |
0.443 |
|
2×95 SM |
30.1 |
2707.3 |
1525.9 |
0.193 |
0.32 |
|
2×120 SM |
32.3 |
3252.4 |
1760.1 |
0.153 |
0.253 |
|
2×150 SM |
35.5 |
3959.1 |
2093.7 |
0.124 |
0.206 |
|
2×185 SM |
38.8 |
4767.3 |
2466.7 |
0.0991 |
0.164 |
|
2×240 SM |
43.8 |
6103.7 |
3119.1 |
0.0754 |
0.125 |
|
2×300 SM |
48.3 |
7453.4 |
3722.7 |
0.0601 |
0.1 |
