Single Core 0.6/1kV AWA Armoured Cable N2XRY / NA2XRY CU(AL)/XLPE/AWA/PVC Power Cable
| Rated Voltage: | 0.6/1 KV | Concentric Conductor: | Cu Or Aluminium |
| Core: | Single | Armouring: | AWA |
| Insulation: | XLPE | Outer Sheath: | PVC |
| High Light: | Single Core AWA Armoured Power Cable,0.6/1kV XLPE PVC Power Cable,N2XRY NA2XRY Low Voltage Cable |
||
Single Core 0.6/1kV AWA Armoured Cable N2XRY / NA2XRY CU(AL)/XLPE/AWA/PVC Power Cable
The Single Core 0.6/1kV N2XRY / NA2XRY CU(AL)/XLPE/AWA/PVC Power Cable is a low-voltage aluminium wire armoured power cable designed for fixed installation in industrial, commercial, and utility power distribution systems. Manufactured with high-quality copper or aluminium conductors, XLPE insulation, Aluminium Wire Armour (AWA), and durable PVC outer sheath, the cable provides reliable electrical performance and enhanced mechanical protection for demanding installation environments.The AWA armoured structure is specifically designed for single core cables, offering effective mechanical protection while minimizing magnetic losses in AC power systems. The cable is suitable for underground installation, cable ducts, outdoor applications, and infrastructure projects requiring long-term operational reliability.
Key Features
-
Excellent electrical performance and current carrying capacity
-
XLPE insulation with high thermal resistance and low dielectric loss
-
Aluminium Wire Armour (AWA) provides enhanced mechanical protection
-
Suitable for underground and fixed installation applications
-
Resistant to moisture, abrasion, and environmental stress
-
Long service life with stable operational performance
-
Copper and aluminium conductor options available
-
Suitable for industrial, commercial, and utility power systems

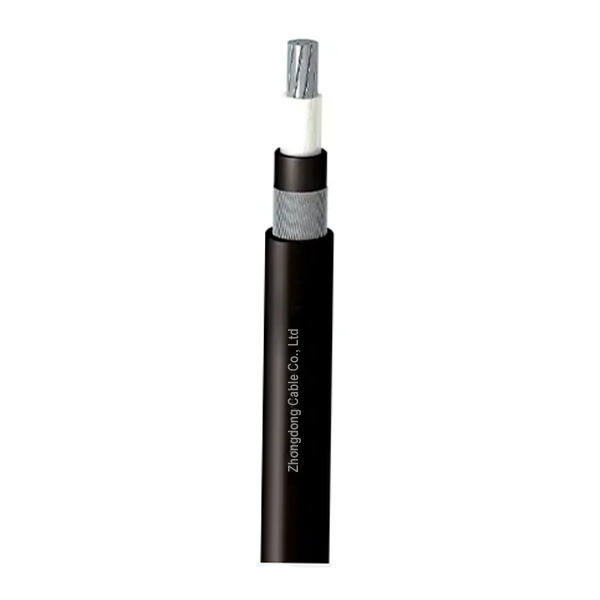

Cable Construction
| Component | Description |
|---|---|
| Conductor | Copper (CU) / Aluminium (AL) |
| Conductor Type | Class 2 Stranded Conductor |
| Insulation | XLPE (Cross-linked Polyethylene) |
| Inner Sheath | PVC |
| Armour | Aluminium Wire Armour (AWA) |
| Outer Sheath | PVC |
| Core Number | Single Core |
| Rated Voltage | 0.6/1kV |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 0.6/1kV |
| Maximum Operating Temperature | 90°C |
| Short-Circuit Temperature | 250°C (Max. 5 Seconds) |
| Installation Temperature | ≥ 0°C |
| Ambient Temperature | -15°C to +70°C |
| Bending Radius | 15 × Cable Diameter |
| Frequency | 50Hz / 60Hz |
Applicable Standards
The cable can be manufactured according to the following standards:
-
IEC 60502-1
-
IEC 60228
-
IEC 60332-1
-
VDE 0276
-
BS Standards
-
DIN Standards
Customized specifications are available based on project requirements.
Applications
The N2XRY / NA2XRY single core AWA armoured cable is widely used for low-voltage power transmission and distribution in industrial plants, commercial buildings, substations, utility networks, underground installations, and infrastructure projects. The cable is particularly suitable for environments requiring reliable electrical performance and enhanced mechanical protection.
Advantages of AWA Armoured Cable
- Reliable Mechanical Protection: The aluminium wire armour protects the cable against mechanical impact and installation damage.
- Suitable for Single Core AC Systems: AWA armour is non-magnetic, making it suitable for single core AC power cable applications.
- Excellent Thermal Performance: XLPE insulation enables higher operating temperatures and improved overload capability.
- Cost-Effective Installation:Available in both copper and aluminium conductor versions to meet different project and budget requirements.
Optional Features
- Flame Retardant (FR)
- Fire Resistant (FRR)
- LSZH (Low Smoke Zero Halogen)
- Water Blocking Design
- UV Resistant Sheath
- Anti-Termite Protection
Quality Assurance
All cables undergo strict quality inspection and routine testing before delivery, including:
-
Conductor resistance testing
-
High voltage testing
-
Insulation thickness inspection
-
Spark testing
-
Mechanical performance testing
-
Dimensional verification
Manufacturing and testing processes comply with international quality management standards to ensure stable and reliable product performance.
Why Choose Our AWA Armoured Power Cables
-
Professional cable manufacturing experience
-
Compliance with IEC and international standards
-
Stable quality and competitive pricing
-
OEM and customized production support
-
Fast delivery for export projects
-
Technical support for utility and industrial applications
Contact Us
Contact our technical sales team for:
-
Product datasheets
-
Technical specifications
-
Competitive quotations
-
OEM manufacturing services
-
International export support
