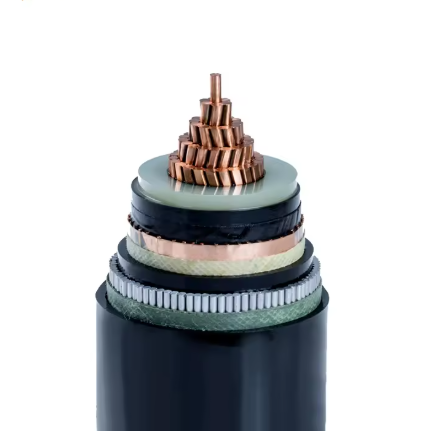

26/35kV AWA Armoured Cable CU/XLPE/AWA/PVC/PE Sheathed Flame-retardant Power Cable
| Insulation Material: | XLPE | Screen: | Copper Wire |
| Rated Voltage: | 21/35kV | No of Core: | 3 |
| Conductor: | Copper Or Alumnium | Jacket: | PVC |
| High Light: | 26/35kV AWA armoured power cable,flame-retardant XLPE power cable,PVC sheathed medium voltage cable |
||
26/35kV AWA Armoured Cable CU/XLPE/AWA/PVC/PE Sheathed Flame-retardant Power Cable
Application
The 26/35kV AWA (Aluminium Wire Armoured) copper conductor power cable is designed for medium voltage power transmission and distribution systems up to 35kV. It is widely used in applications requiring high reliability, mechanical protection, and fire safety performance.
Main Construction
Conductor:Compacted conductors
Insulation:PVC
Metal Screen: Copper Tape
Armouring: Aluminium Wire
Outer sheath: PVC or PE
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×50 |
7.6±0.2 |
312 |
40.6 |
2435 |
3×50 |
7.6±0.2 |
31.2 |
81.8 |
8065 |
|
|
1×70 |
9.2±0.2 |
32.8 |
42.4 |
2754 |
3×70 |
9.2±0.2 |
32.8 |
85.6 |
9116 |
|
|
1×95 |
10.9±0.2 |
345 |
44.1 |
3108 |
3×95 |
10.9±0.2 |
34.5 |
89.5 |
10298 |
|
|
1×120 |
12.2±0.2 |
35.8 |
45.5 |
3438 |
3×120 |
12.2±0.2 |
35.8 |
92.8 |
11418 |
|
|
1×150 |
13.6±0.2 |
372 |
47.1 |
3805 |
3×150 |
13.6±0.2 |
37.2 |
96.2 |
12614 |
|
|
1×185 |
15.2±0.2 |
38.8 |
48.9 |
4266 |
3×185 |
15.2±0.2 |
38.8 |
99.8 |
14066 |
|
|
1×240 |
17.4±0.2 |
410 |
51.1 |
4925 |
3×240 |
17.4±0.2 |
41.0 |
105.1 |
16311 |
|
|
1×300 |
19.5±0.2 |
43.1 |
53.5 |
5666 |
3×300 |
19.5±0.2 |
43.1 |
109.9 |
18616 |
|
|
1×400 |
22.0±0.2 |
45.6 |
56.2 |
6598 |
3×400 |
22.0±0.2 |
45.6 |
116.0 |
21704 |
|
|
1×500/35 |
24.8±0.2 |
492 |
62.5 |
8205 |
3×500/35 |
24.8±0.2 |
49.2 |
129.4 |
27029 |
|
|
1×630/35 |
28.2±0.2 |
52.6 |
66.3 |
9771 |
3×630/35 |
28.2±0.2 |
52.6 |
137.5 |
32059 |
|
|
1×800/35 |
34.0±0.2 |
58.4 |
72.2 |
11950 |
|
|
|
|
|
FAQ
1. Who are we?
Zhongdong Cable, established in 2006, is a a national-level high-tech enterprise integrating R&D, production, sales and export of wire and cables
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
0.6-110kV power cables, ABC Cables, Bare Conductors, Rubber Cables,Control Cables, MC Cables,Electrical Wires and Solar Cables etc
4.What is your MOQ?
We do not have strict MOQ requirement, but considering the shipping cost, we suggest you buy the appropriate meters
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW, LC；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,French;
-
NProfessional factory and fast delivery, a pleasant cooperation
