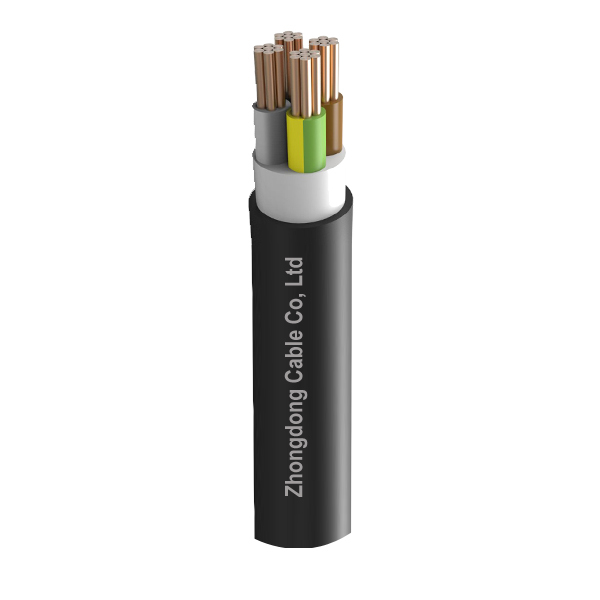

4 Core PE Power Cable Cu Core XLPE Insulated N2X2Y IEC60852-1 Standard
| Voltage: | 0.6/1kV | Insulation: | XLPE |
| Sheath: | PVC | Conductor: | Copper |
| Standard: | Spanish Standard | Usage: | Industrial Cables |
| High Light: | 4 core PE power cable,XLPE insulated power cable,N2X2Y IEC60852-1 cable |
||
4 Core PE Power Cable Cu Core XLPE Insulated N2X2Y IEC60852-1 Standard
APPLICATION
PE Power cables are used for low-voltage power distribution (0.6/1 kV) in fixed installations, suitable for indoor and outdoor laying including cable trays, ducts, and conduits, and used in supplying buildings, industrial equipment, and general electrical loads.
CONSTRUCTION
Type: N2X2Y
Conductor: Copper (Cu)
Insulation: Cross-Linked Polyethylene (XLPE)
Sheath: PE
CHARACTERISTIC
Rated voltage: 0.6/1 kV
Standard: IEC 60502-1
Temperature range: -15°C to +90°C (operation), up to 250°C (short circuit)
SPECIFICATION
|
Specs mm² |
Conductor diameter |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
4×1.5 |
1.38 |
0.7 |
1.8 |
11.2 |
170 |
|
4×2.5 |
1.78 |
0.7 |
1.8 |
12.2 |
222 |
|
4×4 |
2.25 |
0.7 |
1.8 |
13.3 |
293 |
|
4×6 |
2.76 |
0.7 |
1.8 |
14.5 |
386 |
|
4×10 |
4.0 |
0.7 |
1.8 |
17.5 |
562 |
|
4×16 |
5.0 |
0.7 |
1.8 |
19.9 |
813 |
|
4×25 |
6.1 |
0.9 |
1.8 |
23.6 |
1222 |
|
4×35 |
7.2 |
0.9 |
1.8 |
26.4 |
1638 |
|
4×50 |
8.4 |
1.0 |
1.9 |
30.0 |
2166 |
|
4×70 |
10.0 |
1.1 |
2.0 |
34.6 |
3048 |
|
4×95 |
12.0 |
1.1 |
2.1 |
39.7 |
4135 |
|
4×120 |
13.0 |
1.2 |
2.3 |
43.0 |
5145 |
|
4×150 |
14.9 |
1.4 |
2.4 |
48.8 |
6376 |
|
4×185 |
16.5 |
1.6 |
2.6 |
54.1 |
7911 |
|
4×240 |
18.4 |
1.7 |
2.8 |
59.6 |
10243 |
|
4×300 |
21.0 |
1.8 |
3.0 |
66.8 |
12779 |
|
4×400 |
23.4 |
2.0 |
3.3 |
74.2 |
16325 |
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
4. what services can we provide?
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
