Detail Information

Insulation Material:	Xlpe	Application:	Construction
Conductor Material:	Copper	Sheath:	PVC
Cores:	3 Core	Armour:	Aluminum Wire/Tape, Steel Wire/Tape,Non-magnetic Stainless Steel Wire

Product Description

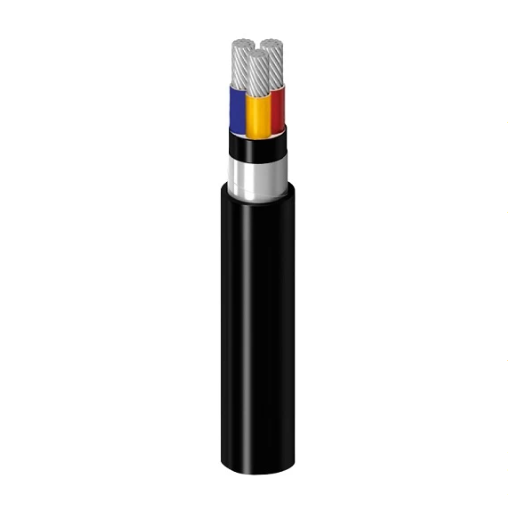

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V

Applications

The cable is designed for fixed installation where mechanical protection and cost efficiency are required, such as industrial power distribution, buildings, underground installation, street power supply and etc.

Construction

1. Conductor: Stranded aluminum

2. PVC Insulation

3. Steel Tape or Steel Wire Armoured.

4. PVC or polyethylene sheath.

5. Number of cable cores: three cores

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V 0

Characteristics

Voltage Rating Uo/U:0.6/1kV

Maximum system voltage:12kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -20℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: Single core:15D Multicire: 12D (D is the actual outer diameter of the cable)

Specification

Specs	Conductor diameter	Approximate outer diameter of cable				Approximate cable weight
mm²	mm	mm				kg/km
		Non-flame	ZA	ZB	ZC	Non-flame	ZA	ZB	ZC
3×2.5	1.81	13.6	13.9	13.9	13.6	263.1	276.4	276.4	265.2
4	2.28	15.5	15.8	15.8	15.5	333.0	348.0	348.0	335.4
3×6	2.78	16.6	16.9	16.9	16.6	379.6	395.5	395.5	382.2
3×10	4.0	19.2	19.5	19.5	19.2	486.4	504.5	504.5	489.4
3×16	5.0	21.4	21.7	21.7	21.4	597.5	617.5	617.5	600.9
3×25	6.1	25.0	25.0	25.0	25.0	793.4	807.5	807.5	797.5
3×35	7.2	27.4	27.4	27.4	27.4	949.6	965.3	965.3	954.0
3×50	8.2	30.6	30.6	30.6	30.6	1206.7	1224.9	1224.9	1212.0
3×70	10.0	35.0	35.0	35.0	35.0	1551.5	1573.4	1573.4	1557.8
3×95	11.6	41.0	41.0	41.0	41.0	2364.2	2390.3	2390.3	2372.4
3×120	13.0	44.2	44.2	44.2	44.2	2738.1	2766.8	2766.8	2747.3
3×150	14.4	48.8	48.8	48.8	48.8	3313.2	3346.8	3346.8	3324.3
3×185	16.1	53.6	53.6	53.6	53.6	3918.2	3955.9	3955.9	3930.9
3×240	18.4	60.1	60.1	60.1	60.1	4866.1	4910.9	4910.9	4881.5
3×300	20.6	66.1	66.1	66.1	66.1	5821.3	5872.1	5872.1	5839.4
3×400	23.4	73.6	73.6	73.6	73.6	7254.1	7313.0	7313.0	7276.3

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V 2

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V 3

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V 4

Three core Stranded Aluminium Armored cable AL/PVC/STA/PVC Low Voltage 600/1000V 5

FAQ

What types of cables do you manufacture?

A: We manufacture a wide range of cables, including Medium voltage and low voltage electric cable, overhead aerial cable, overhead bare conductor, electric wire, communication cables, instrumentation cables, control cables, and many others.
Can you customize cables according to our specific requirements?
A: Yes, we offer OEM and customized cable manufacturing services. We can work with you to design and manufacture cables that meet your specific needs.
What is your production capacity?
A: Our production capacity depends on the type of cable and order volume. However, we have the capability to manufacture large volumes of cables to meet customer demand.
What quality certifications do you hold?
A: We hold various quality certifications such as ISO 9001, ISO 14001, OHSAS 18001, and many others to ensure that our cables meet the highest quality standards.
What is the lead time for cable manufacturing?
A: The lead time varies depending on the type of cable, order volume, and customization requirements. However, we strive to provide our customers with the shortest lead time possible. Please contact us for the lead time and stock.
What is your payment and shipping policy?
A: We accept various payment methods, such as L/C, T/T, D/P. Our shipping policy depends on the destination and order volume. We work with reputable shipping companies to ensure timely and safe delivery of our products.
What is your warranty policy?
A: We offer a warranty for our products, which varies depending on the type of cable and application. We stand behind the quality of our cables and strive to provide our customers with the best possible service and support.
