Detail Information

Conductor:	Copper	Insulation:	PVC
Drain Wire:	Tinned Copper	Voltage Rating:	300V/500V
Outer Sheath Colour:	Black,Blue	Temperature:	Fixed -40°C To +80°C

Product Description

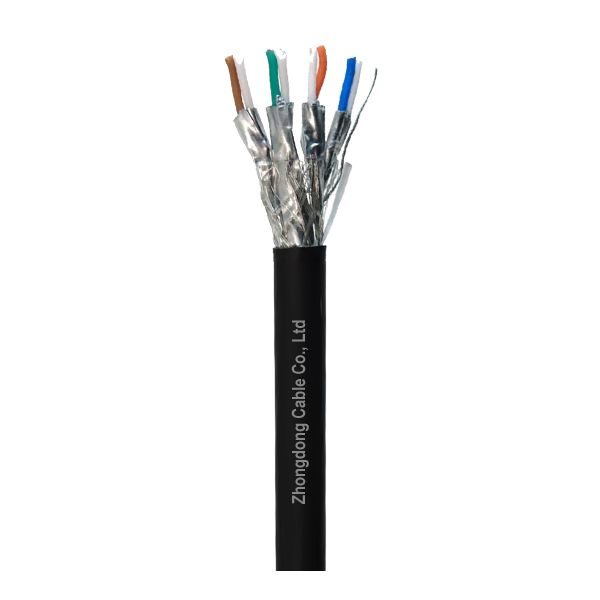

24 Pairs Double Shielded Twisted Pair Computer Cable Armoured Overall Screen 12 Pair Instrument Cable

APPLICATION

The cables are used in electric equipment, household, and electrical appliance.

CONSTRUCTION

Conductor: AS/NZS 1125:2001, Stranded,annealed plain copper wire

Insulation: V-90 insulation

Armouring: Aluminium Foil

Jacket: PVC

CHARACTERISTIC

Operating Temperature: max 90deg C
Min Bending radius: 6 times cable diameter
Phase Core: red, white or blue
Neutral Core: black
Earth : green/yellow.

SPECIFICATION

No of Pair	No of Core	Section Mm²	Insulation thickness mm	Diameter of single metal wire used in shielding layer mm	Diameter of single metal wire used for winding in overall shielding of outer layer mm	Outer sheath thickness mm	Approx outer diameter of cable mm	Approximate cable weight kg/km
2	2	0.5	0.5	0.15	0.15	1.1	12.5	164
3	2	0.5	0.5	0.15	0.15	1.2	13.5	205
4	2	0.5	0.5	0.15	0.2	1.2	14.8	263
5	2	0.5	0.5	0.15	0.2	1.2	15.9	310
6	2	0.5	0.5	0.15	0.2	1.3	17.5	367
7	2	0.5	0.5	0.15	0.2	1.3	17.5	392
8	2	0.5	0.5	0.15	0.2	1.3	19.4	457
9	2	0.5	0.5	0.15	0.2	1.3	20.8	514
10	2	0.5	0.5	0.15	0.2	1.4	22.0	567
11	2	0.5	0.5	0.15	0.2	1.4	22.0	593
12	2	0.5	0.5	0.15	0.2	1.4	22.7	634
13	2	0.5	0.5	0.15	0.2	1.4	23.7	685
14	2	0.5	0.5	0.15	0.2	1.4	23.7	711
15	2	0.5	0.5	0.15	0.25	1.4	25.1	793
16	2	0.5	0.5	0.15	0.25	1.4	25.1	819
17	2	0.5	0.5	0.15	0.25	1.5	26.7	889
18	2	0.5	0.5	0.15	0.25	1.5	26.7	915
19	2	0.5	0.5	0.15	0.25	1.5	26.7	936
20	2	0.5	0.5	0.15	0.25	1.5	28.0	1005
21	2	0.5	0.5	0.15	0.25	1.5	28.0	1032
22	2	0.5	0.5	0.15	0.25	1.5	29.5	1098
23	2	0.5	0.5	0.15	0.25	1.5	29.5	1124
24	2	0.5	0.5	0.15	0.25	1.6	31.1	1203
25	2	0.5	0.5	0.15	0.25	1.6	31.1	1229
26	2	0.5	0.5	0.15	0.25	1.6	31.1	1255
27	2	0.5	0.5	0.15	0.25	1.6	31.8	1301
28	2	0.5	0.5	0.15	0.25	1.6	32.9	1360
29	2	0.5	0.5	0.15	0.25	1.6	32.9	1386
30	2	0.5	0.5	0.15	0.25	1.6	32.9	1412
31	2	0.5	0.5	0.15	0.25	1.7	34.4	1491
32	2	0.5	0.5	0.15	0.25	1.7	34.4	1517
33	2	0.5	0.5	0.15	0.25	1.7	34.4	1543
34	2	0.5	0.5	0.15	0.3	1.7	35.8	1650
35	2	0.5	0.5	0.15	0.3	1.7	35.8	1676
36	2	0.5	0.5	0.15	0.3	1.7	35.8	1702
37	2	0.5	0.5	0.15	0.3	1.7	35.8	1715
38	2	0.5	0.5	0.15	0.3	1.7	37.2	1802
39	2	0.5	0.5	0.15	0.3	1.7	37.2	1829
40	2	0.5	0.5	0.15	0.3	1.7	37.2	1855
41	2	0.5	0.5	0.15	0.3	1.8	38.9	1948
42	2	0.5	0.5	0.15	0.3	1.8	38.9	1974
43	2	0.5	0.5	0.15	0.3	1.8	38.9	2000

24 Pairs Double Shielded Twisted Pair Computer Cable Armoured Overall Screen 12 Pair Instrument Cable 1

24 Pairs Double Shielded Twisted Pair Computer Cable Armoured Overall Screen 12 Pair Instrument Cable 2

24 Pairs Double Shielded Twisted Pair Computer Cable Armoured Overall Screen 12 Pair Instrument Cable 3

24 Pairs Double Shielded Twisted Pair Computer Cable Armoured Overall Screen 12 Pair Instrument Cable 4

FAQ

1. What is the primary purpose of this cable?‌
Designed for industrial instrumentation and control systems requiring high EMI protection and mechanical durability.
2. Where is this cable commonly used?‌
Industrial automation, marine environments, energy infrastructure, and harsh outdoor installations.
3. What does "Overall Shield" mean?‌
A braided or foil shield encases the entire cable to minimize electromagnetic interference (EMI) and radio frequency interference (RFI).
4. Why is wire armour included?‌
Provides crush resistance, rodent protection, and durability against physical damage in rugged environments.
5. Is the cable suitable for outdoor use?‌
Yes, with UV-resistant jackets and moisture protection, making it ideal for exposed installations.
6. How does the shielding improve signal integrity?‌
Prevents noise from distorting analog/digital signals in control circuits, ensuring accurate data transmission.
7. Can it be used in explosive environments?‌
Yes, if certified for hazardous areas (e.g., ATEX/IECEx zones) with flame-retardant materials.
