Detail Information

Conductor:	Copper	Insulation:	PVC
Drain Wire:	Tinned Copper	Voltage Rating:	300V/500V
Outer Sheath Colour:	Black,Blue	Temperature:	Fixed -40°C To +80°C
Highlight:	armoured instrument cable 2 pairs , shielded instrument cable 1.5mm2 , overall type instrument cable wire

Product Description

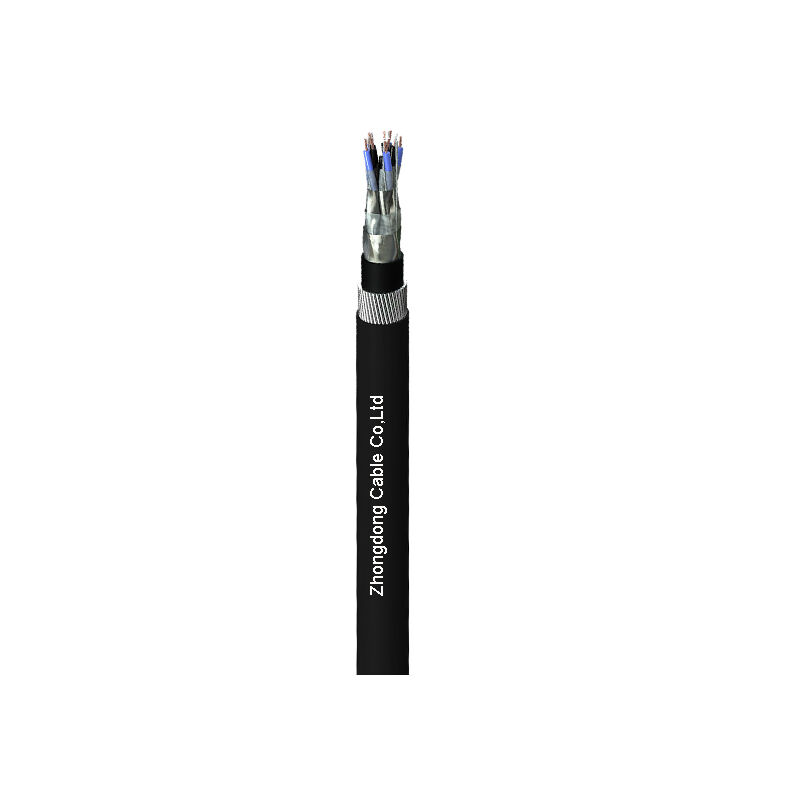

Overall Shield Instrument Cable with 2 Pairs 1.5mm2 Wire Armoured Overall Type

APPLICATION

Overall Shield Instrument Cable with 2 Pairs 1.5mm² Wire Armoured Overall Type is designed for industrial instrumentation and control systems where electromagnetic interference (EMI) protection and mechanical durability are critical.

Industrial Automation‌: Used in control circuits for machinery, robots, and power generation systems to ensure signal integrity amid high EMI.
Marine Systems‌: Deployed in shipboard instrumentation, such as monitoring sensors and control panels, where shielding against harsh environments is essential.
Energy & Infrastructure‌: Suitable for power distribution units, substations, and building management systems for reliable data transmission.

CONSTRUCTION

Conductor: Under 1mm2 Class 5 flexible copper conductor

1mm2 & above Class 2 stranded copper conductor

Insulation: Polyvinyl Chloride (PVC) Laid up to form pairs

Screen: Aluminium/mylar foil tape individually screened pairs complete with 0.5mm drain wire

Overall Tape Screen: Aluminium/Polyester Tape (AL/PET) with 0.5mm drain wire

Bedding: Polyvinyl Chloride (PVC)

Armour: Galvanised Steel Wire Armour (SWA)

Outer Sheath: Polyvinyl Chloride (PVC)

Overall Shield Instrument Cable with 2 Pairs 1.5mm2 Wire Armoured Overall Type 0

STANDARD

TICW/06-2009,GB/T 3956

CHARACTERISTIC

Voltage Rating Uo/U: 300/500V
Maximum system voltage (Um):600V
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: During installation: 12D After installation: 10D

SPECIFICATION

No of Pair	No of Core	Section Mm²	Insulation thickness mm	Diameter of single metal wire used in shielding layer mm	Diameter of single metal wire used for winding in overall shielding of outer layer mm	Outer sheath thickness mm	Approx outer diameter of cable mm	Approximate cable weight kg/km
2	2	0.5	0.5	0.15	0.15	1.1	12.5	164
3	2	0.5	0.5	0.15	0.15	1.2	13.5	205
4	2	0.5	0.5	0.15	0.2	1.2	14.8	263
5	2	0.5	0.5	0.15	0.2	1.2	15.9	310
6	2	0.5	0.5	0.15	0.2	1.3	17.5	367
7	2	0.5	0.5	0.15	0.2	1.3	17.5	392
8	2	0.5	0.5	0.15	0.2	1.3	19.4	457
9	2	0.5	0.5	0.15	0.2	1.3	20.8	514
10	2	0.5	0.5	0.15	0.2	1.4	22.0	567
11	2	0.5	0.5	0.15	0.2	1.4	22.0	593
12	2	0.5	0.5	0.15	0.2	1.4	22.7	634
13	2	0.5	0.5	0.15	0.2	1.4	23.7	685
14	2	0.5	0.5	0.15	0.2	1.4	23.7	711
15	2	0.5	0.5	0.15	0.25	1.4	25.1	793
16	2	0.5	0.5	0.15	0.25	1.4	25.1	819
17	2	0.5	0.5	0.15	0.25	1.5	26.7	889
18	2	0.5	0.5	0.15	0.25	1.5	26.7	915
19	2	0.5	0.5	0.15	0.25	1.5	26.7	936
20	2	0.5	0.5	0.15	0.25	1.5	28.0	1005
21	2	0.5	0.5	0.15	0.25	1.5	28.0	1032
22	2	0.5	0.5	0.15	0.25	1.5	29.5	1098
23	2	0.5	0.5	0.15	0.25	1.5	29.5	1124
24	2	0.5	0.5	0.15	0.25	1.6	31.1	1203
25	2	0.5	0.5	0.15	0.25	1.6	31.1	1229
26	2	0.5	0.5	0.15	0.25	1.6	31.1	1255
27	2	0.5	0.5	0.15	0.25	1.6	31.8	1301
28	2	0.5	0.5	0.15	0.25	1.6	32.9	1360
29	2	0.5	0.5	0.15	0.25	1.6	32.9	1386
30	2	0.5	0.5	0.15	0.25	1.6	32.9	1412
31	2	0.5	0.5	0.15	0.25	1.7	34.4	1491
32	2	0.5	0.5	0.15	0.25	1.7	34.4	1517
33	2	0.5	0.5	0.15	0.25	1.7	34.4	1543
34	2	0.5	0.5	0.15	0.3	1.7	35.8	1650
35	2	0.5	0.5	0.15	0.3	1.7	35.8	1676
36	2	0.5	0.5	0.15	0.3	1.7	35.8	1702
37	2	0.5	0.5	0.15	0.3	1.7	35.8	1715
38	2	0.5	0.5	0.15	0.3	1.7	37.2	1802
39	2	0.5	0.5	0.15	0.3	1.7	37.2	1829
40	2	0.5	0.5	0.15	0.3	1.7	37.2	1855
41	2	0.5	0.5	0.15	0.3	1.8	38.9	1948
42	2	0.5	0.5	0.15	0.3	1.8	38.9	1974
43	2	0.5	0.5	0.15	0.3	1.8	38.9	2000

OUR PLANTS

Overall Shield Instrument Cable with 2 Pairs 1.5mm2 Wire Armoured Overall Type 1

APPLICATION

Overall Shield Instrument Cable with 2 Pairs 1.5mm2 Wire Armoured Overall Type 2

PACKAGE

PARTNER

Overall Shield Instrument Cable with 2 Pairs 1.5mm2 Wire Armoured Overall Type 4

FAQ

1. What is the primary purpose of this cable?‌
Designed for industrial instrumentation and control systems requiring high EMI protection and mechanical durability.
2. Where is this cable commonly used?‌
Industrial automation, marine environments, energy infrastructure, and harsh outdoor installations.
3. What does "Overall Shield" mean?‌
A braided or foil shield encases the entire cable to minimize electromagnetic interference (EMI) and radio frequency interference (RFI).
4. Why is wire armour included?‌
Provides crush resistance, rodent protection, and durability against physical damage in rugged environments.
5. Is the cable suitable for outdoor use?‌
Yes, with UV-resistant jackets and moisture protection, making it ideal for exposed installations.
6. How does the shielding improve signal integrity?‌
Prevents noise from distorting analog/digital signals in control circuits, ensuring accurate data transmission.
7. Can it be used in explosive environments?‌
Yes, if certified for hazardous areas (e.g., ATEX/IECEx zones) with flame-retardant materials.
