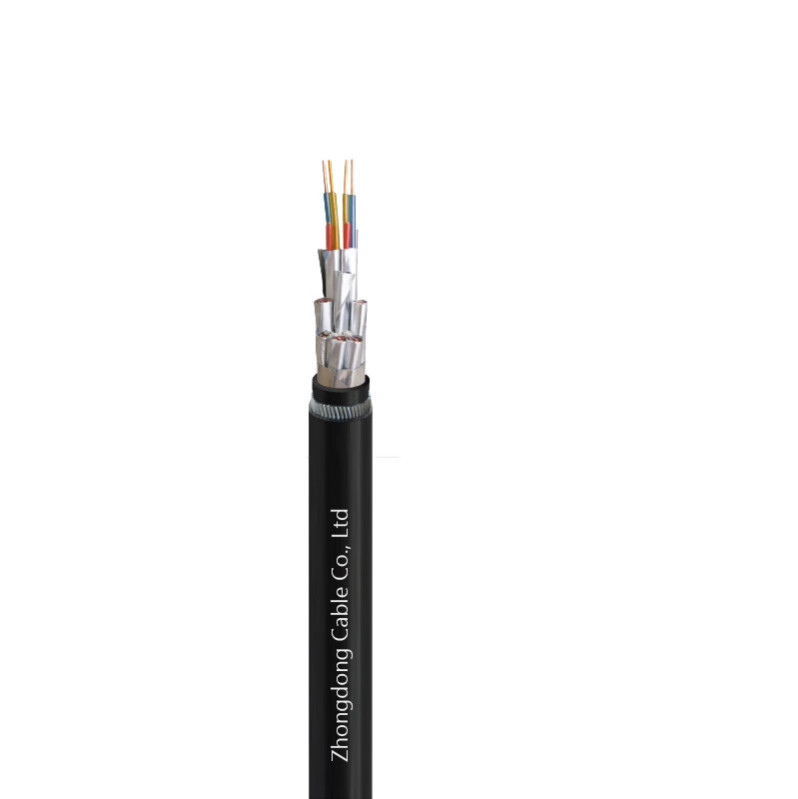

XLPE Insulation Steel Wire Shielded Instrument Cable Armoured Power Cable
| Conductor: | Copper | Insulation: | XLPE |
| Drain Wire: | Tinned Copper | Voltage Rating: | 300V |
| Outer Sheath Colour: | Black,Blue | Temperature: | Fixed -40°C To +80°C |
| High Light: | Steel Wire Shielded Instrument Cable,XLPE Insulation Armoured Power Cable |
||
XLPE Insulation Steel Wire Shielded Instrument Cable Armoured Instrument Cable
Application
This product applies for connecting wire of electric appliance, apparatus or computer, used in distribution equipment with rated with rated voltage up to and including A.c.300/500V or D.C.1000V
Construction
Insulation :XLPE
Collective Screen :Al/PET (Aluminium/Polyester Tape)
Drain Wire :Tinned copper
Sheath :LSZH (Low Smoke Zero Halogen) - UV Resistant
Operating Condition
The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.
Type Option
|
Item |
Name |
Application |
|
1 |
copper conductor insulated PVC sheathed cable |
Fixed using |
|
2 |
copper conductor insulated PVC sheathed flexible cable |
Moveable using |
|
3 |
Copper conductor insulated copper braided pair PVC sheathed cable |
Fixed using |
|
4 |
Copper conductor insulated copper braided pair PVC sheathed flexible cable |
Moveable using |
|
5 |
Copper conductor insulated copper braided pair steel tape armored PVC sheathed cable |
Fixed using |
|
6 |
Copper conductor insulated copper braided common shield PVC sheathd cable |
Fixed using |
|
7 |
Copper conductor insulated copper braided pair and shield PVC sheathed cable |
Fixed using |
|
8 |
Copper conductor insulated copper braided pair and shield PVC sheathed flexible cable |
Moveable using |
