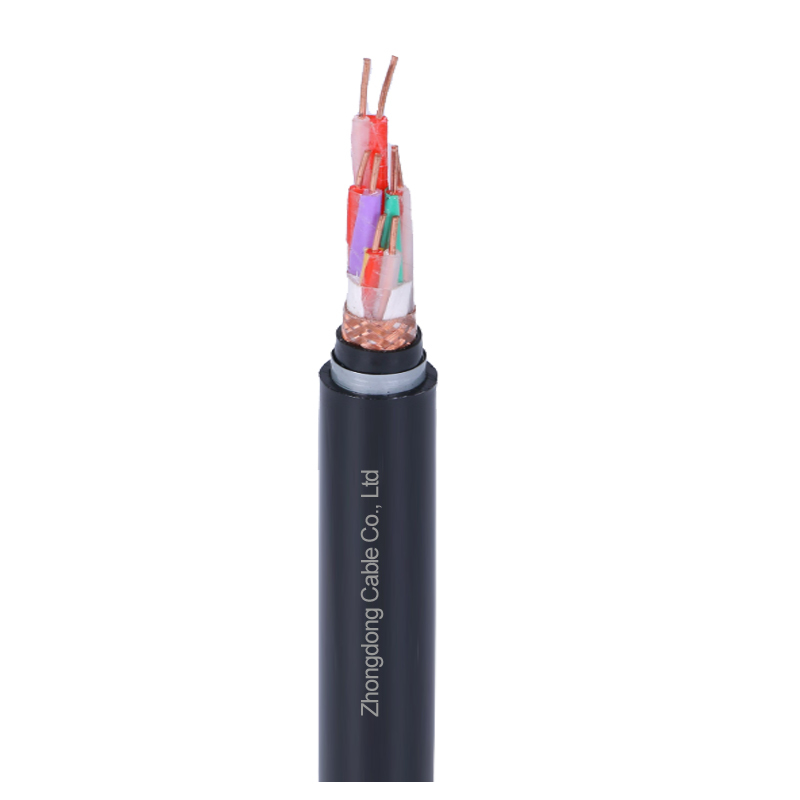

STA Shielded Instrument Cable Flame Retardant Computer Cable
| Conductor: | Copper | Insulation: | PVC |
| Drain Wire: | Tinned Copper | Voltage Rating: | 300V/500V |
| Outer Sheath Colour: | Black,Blue | Temperature: | Fixed -40°C To +80°C |
| High Light: | flame retardant instrument cable,shielded computer cable,STA shielded cable with warranty |
||
STA Shielded Instrument Cable Flame Retardant Computer Cable
APPLICATION
- Industrial automation systems (PLC, DCS, SCADA)
- Power plants, chemical plants, and mining facilities
- Data centers and computer rooms requiring EMI shielding
- Underground or hazardous locations requiring flame retardancy
CONSTRUCTION
- Conductor: The first or second type of copper conductor
- Insulation:Low density polyethylene (LLDPE)
- Filler (optional): Filling rope
- Separate shielding: Braided shielding (P)
- Overall shield: Braided shielding (P)
- Armouring:Steel Tape Armour
- Outer sheath:Polyvinyl chloride ST2 (PVC)
STANDARD
T1CW/06-2009.GB/T3956,GB/T 19666
CHARACTERISTIC
- Voltage Rating Uo/U: 300/500V
- Maximum system voltage (Um):600V
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: During installation: 12D After installation: 10D
SPECIFICATION
|
No of Pair |
No of Core |
Section |
Insulation thickness mm |
Total screen single filament diameter mm |
Steel Tape Thickness |
Outer sheath thickness |
Approx cable outer diameter |
Approx cable weight |
|
1 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.1 |
10.7 |
148 |
|
2 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.2 |
136 |
226 |
|
3 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
1.2 |
14.1 |
249 |
|
4 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
12 |
14.9 |
281 |
|
5 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.2 |
158 |
315 |
|
6 |
2 |
0.5 |
0.50 |
0.15 |
02 |
12 |
16.7 |
351 |
|
7 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
1.2 |
16.7 |
360 |
|
8 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
18.6 |
437 |
|
9 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.3 |
19.7 |
481 |
|
10 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
13 |
20.4 |
511 |
|
11 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
13 |
204 |
522 |
|
12 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
20.9 |
548 |
|
13 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
21.7 |
583 |
|
14 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
21.7 |
594 |
|
15 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
22.9 |
644 |
|
16 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
22.9 |
654 |
|
17 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
238 |
696 |
|
18 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
238 |
707 |
|
19 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
238 |
712 |
|
20 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
24.9 |
763 |
|
21 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
24.9 |
774 |
|
22 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
26.0 |
822 |
|
23 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
26.0 |
832 |
|
24 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
1.5 |
273 |
891 |
|
25 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.5 |
27.3 |
902 |
|
26 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.5 |
273 |
912 |
|
27 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
1.5 |
28.2 |
966 |
|
28 |
2 |
0.5 |
0.50 |
0.25 |
02 |
1.5 |
29.2 |
1037 |
|
29 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
29.2 |
1048 |
|
30 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
29.2 |
1059 |
|
31 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
30.1 |
1105 |
|
32 |
2 |
0.5 |
0.50 |
0.25 |
02 |
15 |
30.1 |
1116 |
|
33 |
2 |
0.5 |
0.50 |
0.25 |
02 |
1.5 |
30.1 |
1126 |
|
34 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
32.5 |
1473 |
|
35 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
325 |
1483 |
|
36 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
325 |
1494 |
|
37 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
325 |
1492 |
|
38 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
33.6 |
1568 |
|
39 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
33.6 |
1579 |
|
40 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
33.6 |
1590 |
|
41 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
34.7 |
1656 |
|
42 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
34.7 |
1667 |
OUR PLANTS
APPLICATION
PACKAGE
PARTNER
FAQ
1. What is the voltage rating (300/500V) used for?
This low-voltage rating ensures safe operation in control circuits and instrumentation systems.
2. Where should this cable be installed?
Ideal for industrial settings, power substations, and data centers where EMI protection and flame resistance are critical.
3. Is this cable suitable for outdoor use?
Yes, due to its armor and PVC sheath, but UV-resistant versions are recommended for prolonged sun exposure.
4. Does it comply with international standards?
While meeting Chinese (GB) standards, similar cables may comply with IEC 60332-1 (flame retardancy) and IEC 60502 (armor requirements).
5. How does it compare to ordinary shielded cables?
Unlike basic shielded cables, this variant offers flame retardancy, armor, and higher durability, making it superior for industrial use.
