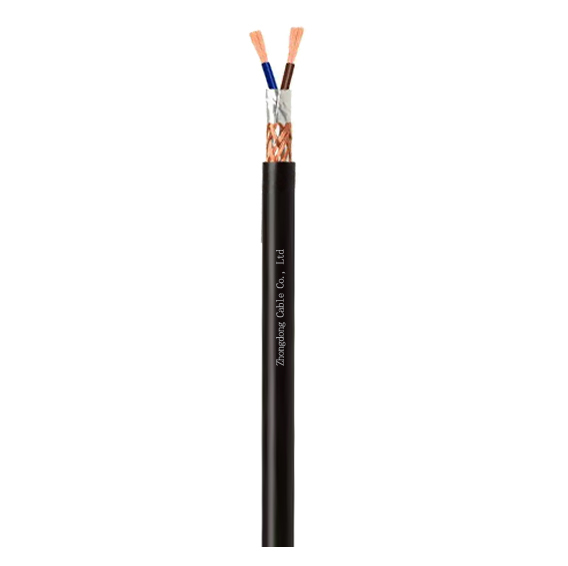

Tinned Copper Wire Shield instrument Cable 2X10AWG 2X12AWG 2X16AWG
| Conductor Type: | Stranded | Rated Voltage: | 300/500v, 450/750v |
| Application: | Residential/Commercial | Keywords: | Earth Cable, Ground Wire |
| Material: | Copper | Color: | Customizable |
| High Light: | Tinned copper shielded instrument cable,2X10AWG instrument cable,2X16AWG shielded cable |
||
Tinned Copper Wire Shield instrument Cable 2X10AWG 2X12AWG 2X16AWG
APPLICATION
- Telecommunications
- Networking Infrastructure
- Industrial Automation
- Audio-Visual Systems
- Transportation
CONSTRUCTION AND SEPCIFICATION
- Conductor Material: Tinned Copper (Flexible Stranded)
- Number of Conductors: 102 strands
- Insulation: PVC
- Strand Diameter: 0.20 mm
- Shielding Layer: Polyester Tape + Aluminum Foil
- Flat Cable Specification: 10 strands × 0.20 mm
- Braid Layer: 128 strands × 0.10 mm
FACTORY
APPLICATION
WHY US
PACKAGE
FAQ
What do 2×10AWG, 2×12AWG, and 2×16AWG indicate?
These denote two conductors per size (10AWG, 12AWG, 16AWG), where AWG (American Wire Gauge) specifies the conductor diameter. Smaller AWG numbers indicate thicker wires
What temperature range can this cable withstand?
Typically -40°C to +90°C, depending on insulation material (e.g., PVC or XLPE)
Is this cable suitable for outdoor use?
Yes, if it has UV-resistant outer sheath and moisture protection. Tinned copper further enhances outdoor durability
What are the advantages of tinned copper over bare copper?
Oxidation resistance in humid environments
Better solderability for terminations
Longer lifespan in corrosive conditions.
Can this cable be used for high-frequency signals?
Yes, due to its shielding design, it minimizes signal loss and interference for high-frequency applications.
How is the cable terminated?
Crimping or soldering for tinned copper
Use of strain relief boots for mechanical protection
Shielded termination to maintain EMI protection
.
