Detail Information

Voltage:	26/35kV	Insulation:	XLPE
Jacket:	PVC	No Of Core:	1,3
Armouring:	Steel Tape Or Steel Wire	Conductor:	Aluminium

Product Description

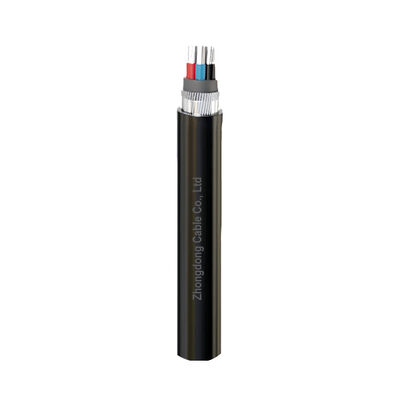

XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm

APPLICATION

The cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route. mainly used in transmission and distribution lines because of its excellent electrical and physical properties.

CONSUCTRUCTION

Conductor:Class 2 Aluminium conductor

Conductor :Semi-conductive shield

Insulation:Cross-Linked Polyethylene(XLPE)

Insulation shield:Semi-conductive shield

Binder tape: Non-woven fabrics:

Isolation sleeve: Polyvinyl chloride(PVC)

Armour:Non-magnetic steel Tape or Steel Wire

Outer sheath:Polyvinyl chloride (PVC)

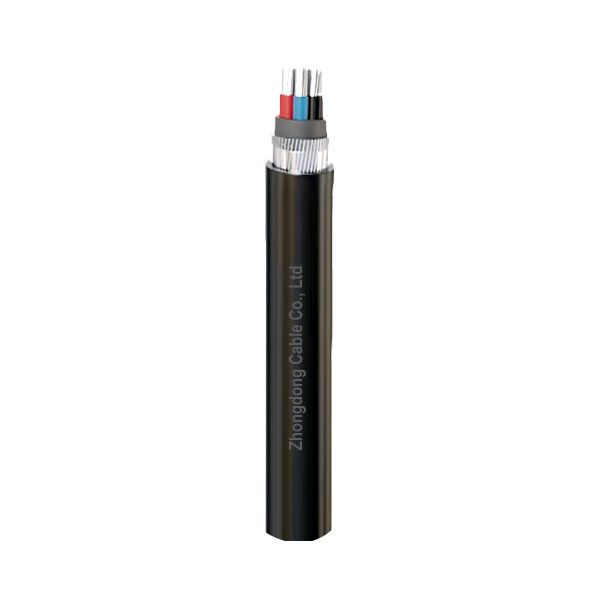

XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm 0

CHARACTERISTIC

Voltage Rating Uo/U: 6kV～35 kV.

Temperature Rating: Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

single unarmored cable: 20 x OD
multi-core unarmored cable: 15 x OD
single armored cable: 5 x OD
multi-core armored cable: 12 x OD

SPECIFICATION

26/35kV

Specs	Conductor diameter	Outer thickness of insulation	Approx outer diameter of cable	Approx cable weight	Specs	Conductor diameter	Outer thickness of insulation	Approx outer diameter of cable	Approx cable weight
mm²	mm	±1.0mm	mm	kg/km	mm²	mm	±1.0mm	mm	kg/km
1×50	7.6±0.2	312	44.1	3697	3×50	7.6±0.2	31.2	85.5	10922
1×70	9.2±0.2	32.8	45.8	4073	3×70	9.2±0.2	32.8	89.3	12127
1×95	10.9±0.2	34.5	47.5	4481	3×95	10.9±0.2	34.5	93.3	13610
1×120	12.2±0.2	35.8	49.0	4874	3×120	12.2±0.2	35.8	96.5	14791
1×150	13.6±0.2	37.2	50.6	5299	3×150	13.6±0.2	37.2	99.9	16179
1×185	15.2±0.2	38.8	52.3	5778	3×185	15.2±0.2	38.8	103.5	17856
1×240	17.4±0.2	41.0	54.5	6530	3×240	17.4±0.2	41.0	108.7	20327
1×300	19.5±0.2	43.1	57.0	7360	3×300	19.5±0.2	43.1	115.3	24487
1×400	22.0±0.2	45.6	59.7	8363	3×400	22.0±0.2	45.6	121.4	27921
1×500/35	24.8±0.2	492	66.0	10213	3×500/35	24.8±0.2	49.2	134.8	34088
1×630/35	28.2±0.2	52.6	69.7	11899	3×630/35	28.2±0.2	52.6	1,448	42268
1×800/35	33.7±0.2	58.1	76.8	15129

CONTACTR US FOR MORE VOLATAGE

ABOUT US

XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm 1

APPLICATION

WHY CHOOSE US

PARTNER

XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm 4

FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5).What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

4 stars

3 stars

2 stars

1 stars

All Reviews

H*n

Sri Lanka Nov 12.2025

Helpful (3)

fast delivery and good quality, so as the service

M*e

Namibia Sep 18.2025

Helpful (1)

a new design cable for our projects, good quality

E*e

Kazakhstan Sep 16.2025

Helpful (1)

Professional factory and fast delivery, a pleasant cooperation

Tag:

Place of Origin:	Hebei，China
Brand Name:	Aluminium Power Cable
Certification:	IEC,CE,ISO,TUV
Model Number:	NA2XRY NA2X2Y

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week
