Detail Information

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC

Product Description

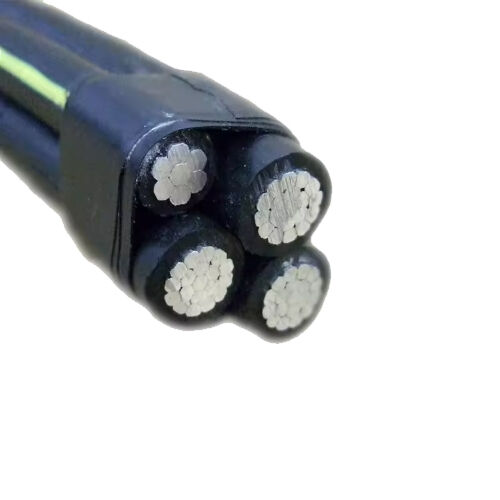

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable

Deatils
Phase Conductor : Aluminium Conductor
Neutral Conductor : AAAC(All Aluminium Alloy Conductor)
Insulation : XLPE/PE
Rated Voltage : 0.6/1KV
Cores : 1,2,3,4,5,2+1, 3+1 ,3+2, 4+1, 4+2 Cores
Other Standards: ASTM/ BS 7870-5/ IEC 60502/AS/NZS or according to your requirement.
Application: The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium,
insulated with XLPE.Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000V

Construction

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable 0

Specification

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910/12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910/12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200/12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200/12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868/12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868/12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641/12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630/1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630/0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630/0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630/0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630/0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72
