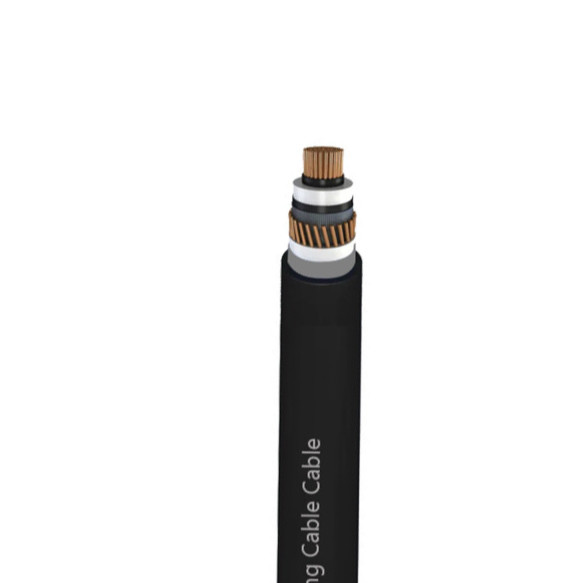

N2XC2Y IEC60502 LV Cable Copper Conductor XLPE Insulation PE Sheath Power Cable
| Voltage: | 0.6/1kV | Insulation: | PVC |
| Sheath: | PVC | Conductor: | Copper |
| High Light: | N2XC2Y LV power cable,copper conductor XLPE insulation cable,PE sheath low voltage cable |
||
N2XC2Y IEC60502 LV Cable Copper Conductor XLPE Insulation PE Sheath Power Cable
APPLICATION
For outdoor installation, in the ground, for power stations, industry and distribution boards or subscriber networks, where protection against contact voltage is required in the case of mechanical damage. The core insulation of XLPE allows a higher operating temperature than comparable cable with PVC core insulation. The cables are halogen-free, UV-resistant and particularly resistant due to the outer sheath made of HDPE.
CONSTRUCTION
CHARACTERISTIC
- Rated voltage U0/U (IEC) 0,6/1 kV
- Voltage testAC 50 Hz [Veff] 4 kV
- Permissible operating temperatures (cable) [°C]
- Laying (min.) -20
- Operation (max.) 90
- Permissible operating temperatures (conductor) [°C]
- Operation (max.) 90
- Short-circuit temperature (max.) 250
SPECIFICATION
|
Spec |
Conductor diameter mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
|||||||
|
Main wire |
Earth wire |
NH |
ZAN |
ZBN |
ZCN |
NH |
ZAN |
ZBN |
ZCN |
|
|
3×1.5 |
1.37 |
/ |
14.1 |
14.1 |
14.4 |
14.1 |
262.8 |
284.7 |
296.4 |
284.7 |
|
3×2.5 |
1.75 |
/ |
14.9 |
14.9 |
15.2 |
14.9 |
307.7 |
331.9 |
344.3 |
331.9 |
|
3×4 |
2.22 |
/ |
15.9 |
15.8 |
16.2 |
15.8 |
369.5 |
396.5 |
409.5 |
396.5 |
|
3×6 |
2.74 |
/ |
17.0 |
16.9 |
17.3 |
16.9 |
451.5 |
482.0 |
495.9 |
482.0 |
|
3×10 |
4 |
/ |
20.3 |
20.6 |
20.6 |
20.6 |
651.3 |
707.1 |
707.1 |
699.4 |
|
3×16 |
5 |
/ |
22.5 |
22.8 |
22.8 |
22.8 |
866.9 |
931.4 |
931.4 |
922.9 |
|
3×25 |
5.59 |
/ |
25.0 |
25.0 |
25.0 |
25.0 |
1182.2 |
1247.9 |
1247.9 |
1238.6 |
|
3×35 |
6.62 |
/ |
27.2 |
27.2 |
27.2 |
27.2 |
1501.1 |
1576.5 |
1576.5 |
1566.3 |
|
3×50 |
7.65 |
/ |
29.8 |
29.8 |
29.8 |
29.8 |
1909.3 |
2089.1 |
1985.4 |
1985.4 |
|
3×70 |
9.21 |
/ |
34.4 |
34.4 |
34.4 |
34.4 |
2622.8 |
2867.0 |
2726.3 |
2726.3 |
|
3×95 |
10.78 |
/ |
39.4 |
39.4 |
39.4 |
39.4 |
3814.1 |
4113.6 |
3935.2 |
3935.2 |
|
3×120 |
12.12 |
/ |
42.9 |
42.9 |
42.9 |
42.9 |
4637.0 |
4994.8 |
4776.3 |
4776.3 |
|
3×150 |
13.69 |
/ |
47.7 |
47.7 |
47.7 |
47.7 |
5648.0 |
6102.5 |
5826.5 |
5826.5 |
|
3×185 |
15.21 |
/ |
52.2 |
52.2 |
52.2 |
52.2 |
6891.5 |
7408.4 |
7097.7 |
7097.7 |
|
3×240 |
17.4 |
/ |
58.0 |
58.0 |
58.0 |
58.0 |
8757.3 |
9409.8 |
9017.4 |
9017.4 |
|
3×300 |
19.55 |
/ |
63.4 |
63.4 |
63.4 |
63.4 |
10718.1 |
11499.9 |
11018.3 |
11018.3 |
|
3×400 |
22.05 |
/ |
70.2 |
70.2 |
70.2 |
70.2 |
13333.5 |
14291.4 |
13686.8 |
13686.8 |
