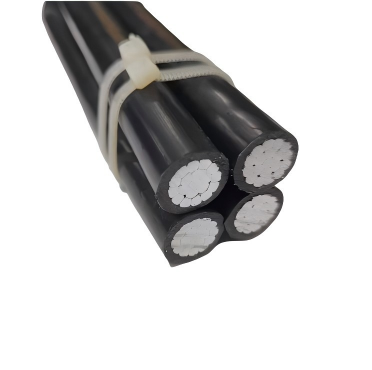

Aluminum Aerial Bundled Cable XLPE Insulated Self-supporting 2-5Core 0.6/1kV Overhead ABC Cable Wire
Application
The cable can be used for fixed installation as overhead power lines up to 1.000 V incl.Not suitable for direct burial. This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc.IEC 61140 It is not flame retardant. But this could be if requested change to a flame retardant cable
Design Concept
1 Aluminium conductor with increased breaking load, round stranded compressed (RM)
2 Core insulation (XPLE black, UV-resistant, not flame retardant); 2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.
Specification
|
Description
|
Phase conductor
|
Bare
Conductor(AAC)
|
Approx.Overall
Diameter&Weight
|
|
NO of Stranding&
Diameter
|
XLPE
Thickness
|
NO of.Stranding &
Diameter
|
Diameter
(mm)
|
Weight
kg/km)
|
|
1×10mm²+10mm²
|
7 /1.35
|
1.0
|
7/1.35
|
10.30
|
72
|
|
1×16mm²+16mm²
|
7/1.70
|
1.2
|
7/1.70
|
12.84
|
113
|
|
1×25mm²+25mm²
|
7/2.22
|
1.2
|
7/2.22
|
15.04
|
165
|
|
1×35mm²+35mm²
|
7/2.59
|
1.4
|
7/2.59
|
17.8B
|
231
|
|
1×50mm²+50mm²
|
7/3.10
|
1.4
|
7/3.10
|
19.68
|
318
|
|
1×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
21.38
|
380
|
|
1×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
22.98
|
456
|
|
2×10mm²+10mm²
|
7/1.35
|
1.0
|
7 / 1.35
|
12.30
|
116
|
|
2×16mm²+16mm²
|
7 /1.70
|
12
|
7 / 1.70
|
15.24
|
181
|
|
2×25mm²+25mm²
|
7/2.22
|
12
|
7 / 2.22
|
17.44
|
261
|
|
2×35mm²+35mm²
|
7/ 2.59
|
1.4
|
7 / 2.59
|
20.28
|
365
|
|
2×50mm²+50mm²
|
7/3.10
|
1.4
|
7 / 3.10
|
22.48
|
498
|
|
2×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
2588
|
622
|
|
2×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
29.08
|
774
|
|
3×10mm²+10mm²
|
7/1.35
|
1.0
|
7 / 1.35
|
14.76
|
160
|
|
3×16mm²+16mm²
|
7/1.70
|
1.2
|
7 / 1.70
|
18.28
|
249
|
|
3×25mm²+25mm²
|
7/2.22
|
1.2
|
7 / 2.22
|
20.92
|
357
|
|
3×35mm²+35mm²
|
7/2.59
|
1.4
|
7 / 2.59
|
24.33
|
499
|
|
3×50mm²+50mm²
|
7/3.10
|
1.4
|
7 / 3.10
|
26.97
|
678
|
|
3×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
31.05
|
864
|
|
3×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
34.89
|
1092
|
