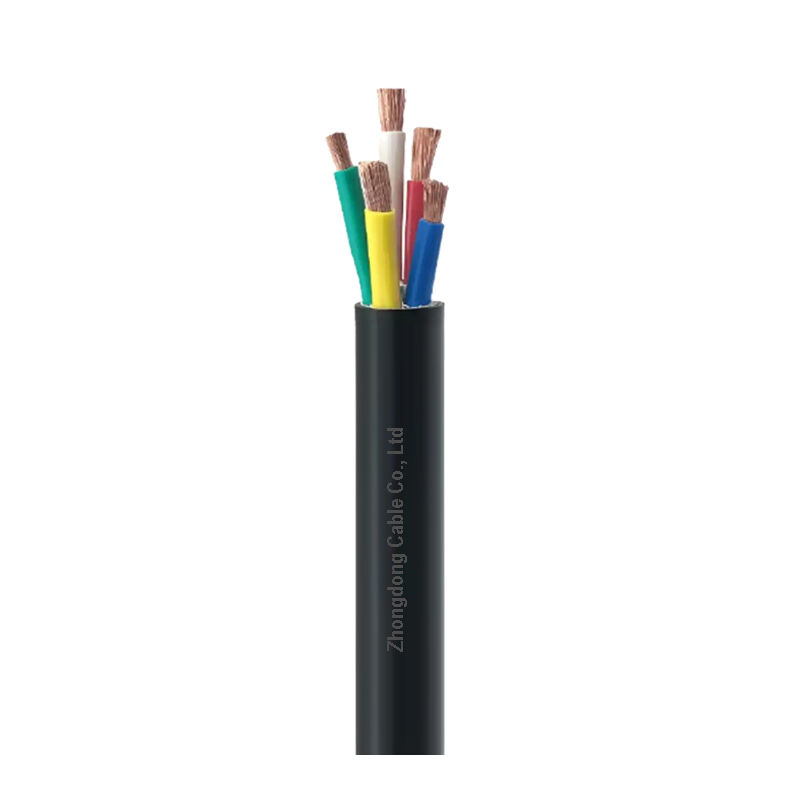

High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable
APPLICATION
The cables are typically used in 0.6/1kV rated voltage circuits, the main applications include power transmission and distribution, Industrial Equipment and commercial building, and underground Distribution and harsh area etc.
CONSTRUCTION
Conductor: Class 2 stranded Copper conductor
Insulation:Cross-Linked Polyethylene(XLPE)
Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 0.6/1kV
- Maximum system voltage: 12kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:20D Multicire: 15D
SPECIFICATION
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
3×1.5
|
1.38
|
0.7
|
1.8
|
10.4
|
142
|
|
3×2.5
|
1.78
|
0.7
|
1.8
|
11.3
|
183
|
|
3×4
|
2.25
|
0.7
|
1.8
|
12.3
|
240
|
|
3×6
|
2.76
|
0.7
|
1.8
|
13.4
|
311
|
|
3×10
|
4.0
|
0.7
|
1.8
|
16.0
|
446
|
|
3×16
|
5.0
|
0.7
|
1.8
|
18.2
|
641
|
|
3×25
|
6.1
|
0.9
|
1.8
|
21.5
|
955
|
|
3×35
|
7.2
|
0.9
|
1.8
|
23.9
|
1259
|
|
3×50
|
8.4
|
1.0
|
1.8
|
27.1
|
1674
|
|
3×70
|
10.0
|
1.1
|
1.9
|
31.2
|
2347
|
|
3×95
|
12.0
|
1.1
|
2.0
|
35.7
|
3176
|
|
3×120
|
13.0
|
1.2
|
2.1
|
38.5
|
3931
|
|
3×150
|
14.9
|
1.4
|
2.3
|
43.9
|
4893
|
|
3×185
|
16.5
|
1.6
|
2.4
|
48.5
|
6050
|
|
3×240
|
18.4
|
1.7
|
2.6
|
53.5
|
7828
|
|
3×300
|
21.0
|
1.8
|
2.8
|
59.9
|
9763
|
|
3×400
|
23.4
|
2.0
|
3.1
|
66.6
|
12470
|
ABOUT US
APPLICATION
PACKAGE
PARTNER
FAQ
Q: Do you offer cable customization services?
A: Yes. We support custom logo printing and specification adjustments (core count, conductor size, materials, etc.), all compliant with international standards.
Q: What is the minimum order quantity (MOQ)?
A: Flexible negotiation is allowed.
Q: What is the production lead time?
A: 7–30 working days for standard orders; 15–35 working days for customized ones (logo, special materials).
Q: Can I get free samples?
A: Free samples are provided (freight collect). Custom samples require a refundable fee.
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight. Flexible terms for long-term partners.
Q: How are export cables packaged?
A: Cables are wound on wooden/plastic reels, wrapped in waterproof film, and labeled with product specs and shipping marks.
Q: How do you ensure cable quality?
A: Full-process quality control (raw material, in-production, final testing) is implemented. A Certificate of Conformity (COC) is provided for all orders.
Q: Do your flame-retardant cables meet international standards?
A: Yes. They comply with IEC 60332 flame-retardant standards, inhibiting flame spread effectively.
