Fire Resistant XLPE Insulated Power Cable CU/XLPE/STA/PE for Fire Safety Applications

Basic Properties
Place of Origin: Hebei，China
Brand Name: XLPE Insulated Power Cable
Certification: ISO,CE,IEC,TUV
Model Number: YJY N2X2Y
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Insulated Cable

XLPE Insulated Wire

XLPE Power Cable
Specifications
Insulation Material: Xlpe Conductor Material: Copper
Sheath: PE Type: 0.6/1kV
Cross Section: 0.5-630mm2 Feature: Fire Rated
High Light:

fire resistant XLPE power cable

,

XLPE insulated copper power cable

,

fire safety power cable with warranty
Product Description
Fire Resistant XLPE Insulated Power Cable CU/XLPE/STA/PE for Fire Safety Applications
This fire-resistant cable is designed for low-voltage power distribution systems where fire safety is critical, rated for 0.6/1kV applications.
Applications
This specialized power cable is designed for critical fire safety applications where reliable performance under extreme conditions is paramount. Its core application lies in ‌emergency power supply systems‌.

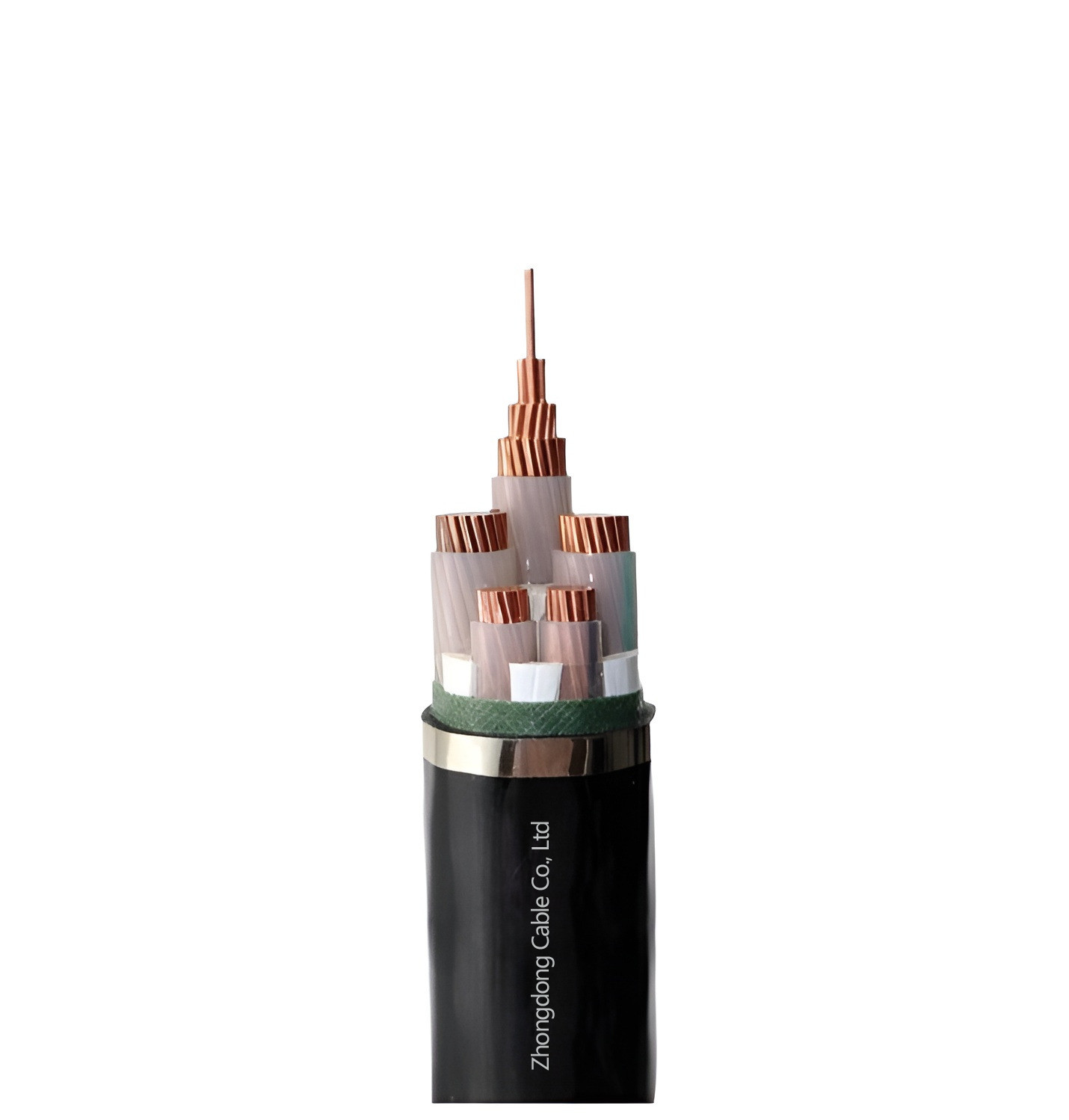

Construction Details
  • Conductor: Class 1/Class 2 stranded copper conductor
  • Refractory layer: Single-sided gold mica tape
  • Insulation: XLPE (Cross-linked polyethylene)
  • Filler options: Polypropylene mesh tear rope or flame-retardant filling

  • Armoring:  Stainless steel tape (single - core cable, 63)   Galvanized steel tape (multi - core cable, 23)

  • Outer sheath: Polyethylene (PE)

Product Parameters - Three Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
3*10 4 17.0-17.3 460.1-518.4
3*16 5 19.2-19.5 652.7-727.3
3*25 5.59 21.7 941.7-1030.0
3*35 6.62 23.9 1236.9-1346.2
3*50 7.65 26.5-27.4 1616.8-1797.7
3*70 9.21 30.6-31.4 2264.6-2498.7
3*95 10.78 34.1-35.0 3043.3-3330.1
3*120 12.12 37.6-38.5 3791.7-4135.4
3*150 13.69 42.3-43.1 4690.4-5116.1
3*185 15.21 46.6-47.5 5819.2-6331.8
3*240 17.4 52.2-53.0 7547.6-8180.2
3*300 19.55 57.6 9389.3-10057.7
3*400 22.05 64.4 11855.9-12691.4
Four Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
4*1.5 1.37 11.7-12.4 165.3-180.3
4*2.5 1.75 12.6-13.4 211.9-228.7
4*4 2.22 13.7-14.0 279.1-298.0
4*6 2.74 14.9-15.2 370.4-392.0
4*10 4 18.7-19.0 582.0-646.6
4*16 5 21.4 838.5-916.4
4*25 5.59 23.8 1212.3-1310.8
4*35 6.62 26.3 1599.7-1721.4
4*50 7.65 29.5-30.3 2110.8-2313.0
4*70 9.21 33.9-34.8 2961.9-3223.5
4*95 10.78 37.9-38.8 3987.3-4307.2
4*120 12.12 42.0-42.8 4988.0-5372.8
4*150 13.69 47.0-47.8 6147.6-6622.7
4*185 15.21 52.0-52.8 7653.0-8226.3
4*240 17.4 58.2-59.0 9929.3-10636.8
4*300 19.55 64.2 12353.7-13101.3
4*400 22.05 71.8 15597.2-16532.3
Five Core Cables
Spec (mm²) Conductor Diameter (mm) Approx Outer Diameter (mm) Approx Cable Weight (kg/km)
5*1.5 1.37 12.7-13.4 194.6-211.5
5*2.5 1.75 13.7-14.4 251.8-270.8
5*4 2.22 14.9-15.2 334.8-356.2
5*6 2.74 16.2-16.6 447.7-472.3
5*10 4 20.7 713.2-785.5
5*16 5 23.4 1025.6-1119.7
5*25 5.59 26.2 1490.0-1609.3
5*35 6.62 28.9 1971.7-2119.4
5*50 7.65 32.6-33.4 2618.3-2859.1
5*70 9.21 37.6-38.4 3677.1-3989.9
5*95 10.78 42.2-43.0 4970.8-5356.2
5*120 12.12 46.5-47.3 6197.0-6659.7
5*150 13.69 52.2-53.0 7659.4-8233.1
5*185 15.21 57.8-58.6 9532.9-10226.6
Contact Us for More Details
Get comprehensive technical specifications and pricing information for our fire-rated cables.
About Our Company
Our cable manufacturing facility and capabilities
Our Projects
Successful cable installation projects worldwide
Packaging
Professional cable packaging and shipping methods
Frequently Asked Questions
What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
Which international standards do your products comply with?
Our products comply with various international standards, such as IEC, BS, UL, ASTM, GB, etc., depending on the product type. We can provide products compliant with different international standards.
What quality certifications do you hold?
We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.
What is the delivery lead time?
Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.
Do you accept customized products?
We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
