Detail Information

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC

Product Description

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission

APPLICATION

power transmission in overhead distribution networks. Its copper tape screen enhances electromagnetic shielding and current-carrying capacity, while the XLPE insulation ensures durability under various environmental conditions.

Ideal for urban and rural areas, this cable supports voltages up to 36kV and is suitable for long-distance aerial installations. The lightweight aluminum core reduces sag, and the bundled design minimizes maintenance needs.

CONSTRUCTION

Conductor: Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen:Extruded Semi-conductive Layer
Insulation:XLPE
Insulation Screen:Extruded Semi-conductive Layer
Metallic Screen:Copper wire screen or copper tape screen
Outer Sheath:HDPE
Support Conductor:Galvanized steel wires

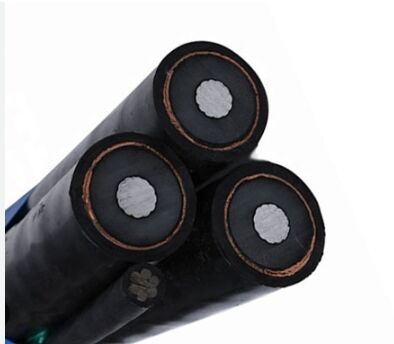

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission 0

CHARACTERISTIC

Voltage rating: 12.7/22kV
Normal operation 90°C.
Emergency over load conditions 130°C.
Short circuit conditions 250°C.

SPECIFICATION

No of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Continuous current rating, A
No of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	No/mm	mm	No/mm	mm	kg/km	A	A	A
Light duty screen
3x35	6.9	5.5	0.8	25/0.85	1.8	7/2.00	62.7	2280	100	140	165
3x35	6.9	5.5	0.8	25/0.85	1.8	19/2.00	66.7	2580	105	145	165
3x50	8.1	5.5	0.8	25/0.85	1.8	19/2.00	69	2780	125	170	200
3x70	9.7	5.5	0.8	25/0.85	1.8	19/2.00	72.6	3110	150	215	250
3x95	11.4	5.5	0.8	25/0.85	1.8	19/2.00	76	3460	180	260	305
3x120	12.8	5.5	0.8	25/0.85	1.8	19/2.00	79.2	3810	205	300	355
3x150	14.2	5.5	0.8	25/0.85	1.9	19/2.00	82.8	4230	230	340	400
3x185	15.7	5.5	0.8	25/0.85	1.9	19/2.00	86.2	4650	265	390	460
Heavy duty screen
3x35	6.9	5.5	0.8	40/0.85	1.8	7/2.00	62.7	2510	100	140	165
3x35	6.9	5.5	0.8	40/0.85	1.8	19/2.00	66.7	2810	105	145	165
3x50	8.1	5.5	0.8	23/1.35	1.8	19/2.00	71	3300	125	175	200
3x70	9.7	5.5	0.8	32/1.35	1.9	19/2.00	74.6	3970	155	215	250
3x95	11.4	5.5	0.8	39/1.35	1.9	19/2.00	78	4600	180	260	305
3x120	12.8	5.5	0.8	39/1.35	2	19/2.00	81.2	4950	205	300	355
3x150	14.2	5.5	1	39/1.35	2	19/2.00	84.8	5360	230	340	395
3x185	15.7	5.5	1	39/1.35	2.1	19/2.00	88.2	5790	265	390	400

ABOUT US

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission 2

WHY CHOOSE US

PROJECTS

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission 4

PACKAGE

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission 5

PARTNER

Overhead Aerial Cable with Copper Tape Screen MV ABC Cable for Overhead Power Transmission 6

FAQ

What is the primary application of this cable?‌
Designed for overhead power transmission in urban and rural distribution networks, supporting voltages up to 33kV.

Why use a copper tape screen?‌
The copper tape provides enhanced electromagnetic shielding and improves current-carrying capacity, reducing interference and power loss.

What insulation material is used?‌
Cross-linked polyethylene (XLPE) insulation ensures durability, heat resistance, and long-term performance under varying weather conditions.

Is this cable suitable for long-distance installations?‌
Yes, its lightweight design minimizes sag, making it ideal for aerial spans over extended distances.

How does the bundled design reduce maintenance?‌
The bundled structure consolidates conductors, simplifying installation and reducing exposure to environmental hazards like wind or debris.

What voltage ratings does it support?‌
Rated for medium voltage (MV) applications, typically up to 36kV, aligning with standard distribution network requirements.

Can it be used in industrial areas?‌
Yes, its robust construction withstands industrial environments, including exposure to pollutants or mechanical stress.
