Detail Information

Voltage:	3.6/6kV	Insulation:	XLPE
Jacket:	PVC	Feature:	LSZH
Amour:	Steel Tape	Application:	Underground, Overhead, Indoor, Mining And Power Distribution Etc
Highlight:	Fire Rated Low Voltage Cable , 3 Core Underground Power Cable , LSZH Fire Rated Wire

Product Description

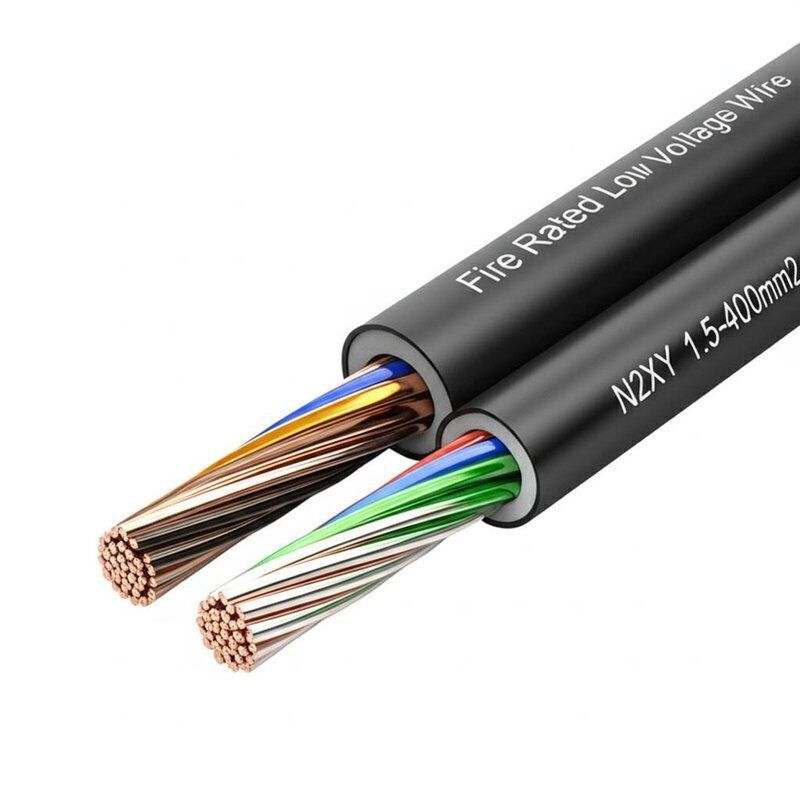

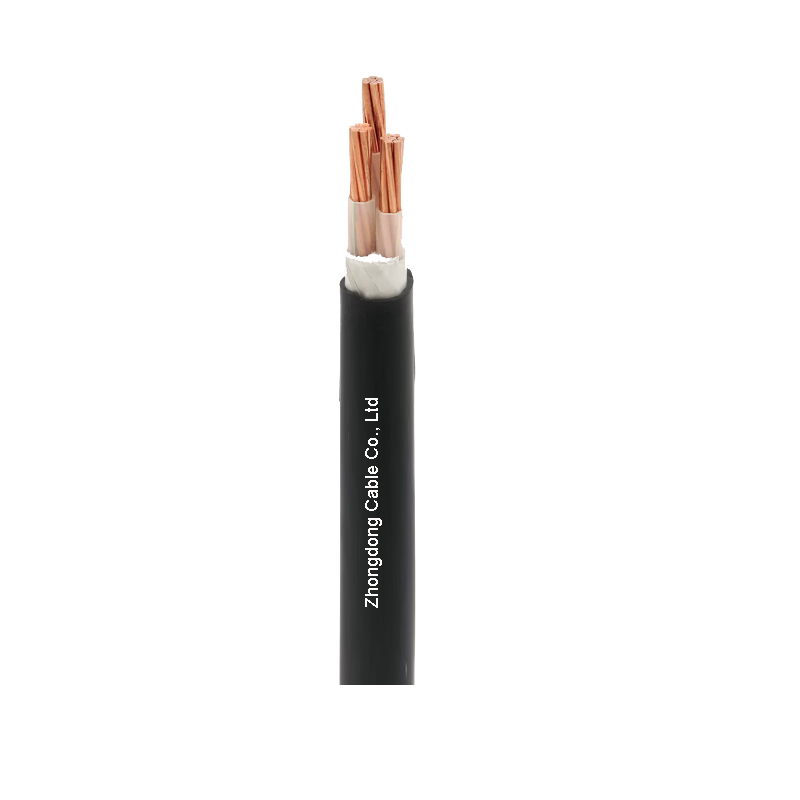

Fire Rated Low Voltage Wire N2XY with 3 Core 1.5-400mm² Underground Power Cable

Product Overview

Fire Rated Low Voltage Wire with 3 Core 1.5-400mm² is engineered to maintain circuit integrity during fire conditions, ensuring continuous power supply for critical emergency systems.

Applications

This fire-resistant cable is specifically designed for critical systems including emergency lighting, fire alarms, and evacuation systems. Its three-core configuration (phase, neutral, and earth) with cross-sectional range of 1.5-400mm² makes it suitable for diverse low-voltage applications in buildings, industrial facilities, and public infrastructure. The cable prevents flame propagation and toxic gas emission, enhancing safety during emergencies while complying with international standards IEC 60332 and UL 1685.

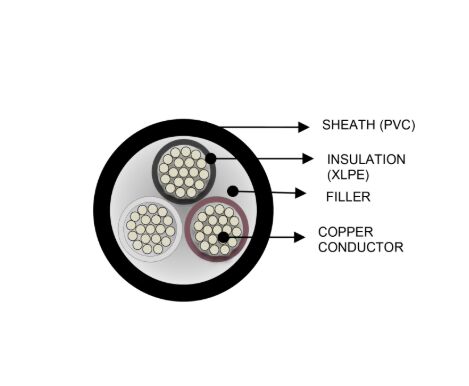

Construction Details

Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
Insulation: XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Sheath: PVC

Technical Characteristics

Voltage Rating Uo/U: 0.6/1kV
Maximum system voltage: 12kV
Maximum operating temperature of conductor: +90℃
Operating ambient temperature: -20℃ to +45℃
Cable laying temperature: Not less than 0℃ (Preheating required below 0℃)
Minimum Bending Radius: 15D

Specifications

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
3×1.5	1.38	0.7	1.8	10.4	142
3×2.5	1.78	0.7	1.8	11.3	183
3×4	2.25	0.7	1.8	12.3	240
3×6	2.76	0.7	1.8	13.4	311
3×10	4.0	0.7	1.8	16.0	446
3×16	5.0	0.7	1.8	18.2	641
3×25	6.1	0.9	1.8	21.5	955
3×35	7.2	0.9	1.8	23.9	1259
3×50	8.4	1.0	1.8	27.1	1674
3×70	10.0	1.1	1.9	31.2	2347
3×95	12.0	1.1	2.0	35.7	3176
3×120	13.0	1.2	2.1	38.5	3931
3×150	14.9	1.4	2.3	43.9	4893
3×185	16.5	1.6	2.4	48.5	6050
3×240	18.4	1.7	2.6	53.5	7828
3×300	21.0	1.8	2.8	59.9	9763
3×400	23.4	2.0	3.1	66.6	12470

Manufacturing Facility

Application Examples

Company Profile

Industry Partners

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A1: We are manufacturer and trading company.

Q2: Do you have your own R&D team?

A2: Yes, we can customize products as your requirements.

Q3: How about the quality?

A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?

A4: We are looking for distributor and agent all over the world.

Q5: What quality certifications do you hold?

A5: We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.

Q6: What is the delivery lead time?

A6: Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.

Q7: Do you accept customized products?

A7: We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
