Detail Information

Voltage:	450/ 750V	Armoring:	STEEL TAPE OR NONE
Insulation:	PVC	Core:	Multi Cores
Temperature Range:	- 30℃ To + 70℃	Sheathed:	PVC

Product Description

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY

APPLICATION

Underground and industrial power transmission, especially in wet or corrosive environments.
ndustrial control circuits requiring flexibility and resistance to environmental stress.
Fixed installations in dry or moderately humid environments, such as control panels.

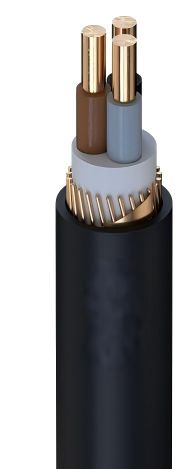

CONSTRUCTION

Conductor: Class 5 soft stranded conductor
Insulation:Polyvinyl chloride (PVC)
Filler(optional):Polypropylene(PP) Mesh Filling Rope
Shielded Braid:Soft round copper wire or tin plated round copper wire
Outer sheath:Polyvinyl chloride (PVC)

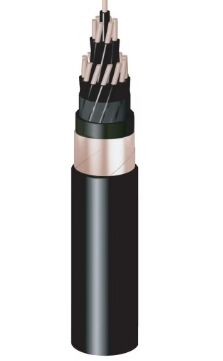

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY 0

CHARACTERISTIC

Voltage Rating Uo/U450/750V
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+40℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

SPECIFICATIONS

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
2×0.5	0.85	0.6	1.5	10.6	156.5
2×0.5(B)	0.90	0.6	1.5	10.7	159.2
2×0.75	1.02	0.6	1.5	11.0	168.8
2×0.75(B)	1.10	0.6	1.5	11.1	172.9
2×1	1.16	0.6	1.5	11.2	179.7
2×1(B)	1.29	0.6	1.5	11.5	186.2
2×1.5	1.41	0.7	1.5	12.2	211.5
2×1.5(B)	1.56	0.7	1.5	12.5	219.2
2×2.5	1.76	0.8	1.5	13.4	260.4
2×2.5(B)	2.04	0.8	1.5	13.8	272.6
2×4	2.22	0.8	1.5	14.3	310.7
2×4(B)	2.55	0.8	1.5	14.9	25.1
2×6	2.74	0.8	1.5	15.3	371.7
2×6(B)	3.10	0.8	1.5	16.0	388.9
2×10	4.00	1.0	1.5	18.6	533.9
3×0.5	0.85	0.6	1.5	11.0	171.2
3×0.5(B)	0.90	0.6	1.5	11.1	174.4
3×0.75	1.02	0.6	1.5	11.3	186.5
3×0.75(B)	1.10	0.6	1.5	11.5	191.4
3×1	1.16	0.6	1.5	11.6	200.6
3×1(B)	1.29	0.6	1.5	11.9	208.0
3×1.5	1.41	0.7	1.5	12.6	240.0
3×1.5(B)	1.56	0.7	1.5	12.9	248.8
3×2.5	1.76	0.8	1.5	13.9	02.4
3×2.5(B)	2.04	0.8	1.5	14.4	316.5
3×4	2.22	0.8	1.5	15.0	369.0
3×4(B)	2.55	0.8	1.5	15.5	385.7
3×6	2.74	0.8	1.5	16.0	451.0
3×6(B)	3.10	0.8	1.5	16.7	470.8
3×10	4.00	1.0	1.5	19.6	662.2
4×0.5	0.85	0.6	1.5	11.5	190.5
4×0.5(B)	0.90	0.6	1.5	11.6	194.2
4×0.75	1.02	0.6	1.5	11.9	209.6
4×0.75(B)	1.10	0.6	1.5	12.1	215.0
4×1	1.16	0.6	1.5	12.3	226.9
4×1(B)	1.29	0.6	1.5	12.6	235.4
4×1.5	1.41	0.7	1.5	13.4	275.1
4×1.5(B)	1.56	0.7	1.5	13.7	285.6
4×2.5	1.76	0.8	1.5	14.9	352.8

OUR FACTORY

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY 1

PROJECTS

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY 2

PARTNER

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY 3

DELIVERY AND PACAKGE

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY 5

FAQ

Q: What is a PVC insulated control cable?‌
A: A PVC insulated control cable is a type of electrical cable with polyvinyl chloride (PVC) insulation, designed for transmitting control signals in industrial, commercial, and residential applications. It offers flexibility, durability, and resistance to moisture and chemicals.
Q: What are the advantages of PVC insulation in control cables?‌
A: PVC insulation provides excellent electrical insulation, flame retardancy, and resistance to oil, acids, and weather conditions. It also ensures flexibility and ease of installation.

Q: Can PVC control cables be used outdoors?‌
A: Yes, but they require additional protective measures like UV-resistant jackets or conduit systems for prolonged outdoor exposure. Standard PVC cables are suitable for indoor or sheltered environments.

Q: What temperature range can PVC control cables withstand?‌
A: PVC insulated cables generally operate within -15°C to +70°C. For higher temperatures, alternatives like XLPE insulation may be recommended.

Q: How many cores can a PVC control cable have?‌
A: PVC control cables can be designed with 2 to 61 cores, depending on the application. Common configurations include 2-core, 4-core, 7-core, and 19-core for complex control systems.

Q: Are PVC control cables suitable for industrial automation?‌
A: Yes, they are widely used in industrial automation for connecting sensors, actuators, and control panels due to their robustness and signal integrity.

Q: Can PVC control cables be buried underground?‌
A: Yes, if they are armored (e.g., with steel wire armor) and rated for direct burial. Non-armored cables may require additional protection.

Tag:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	NYY， NYCY, NYSY, NYBY

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week
