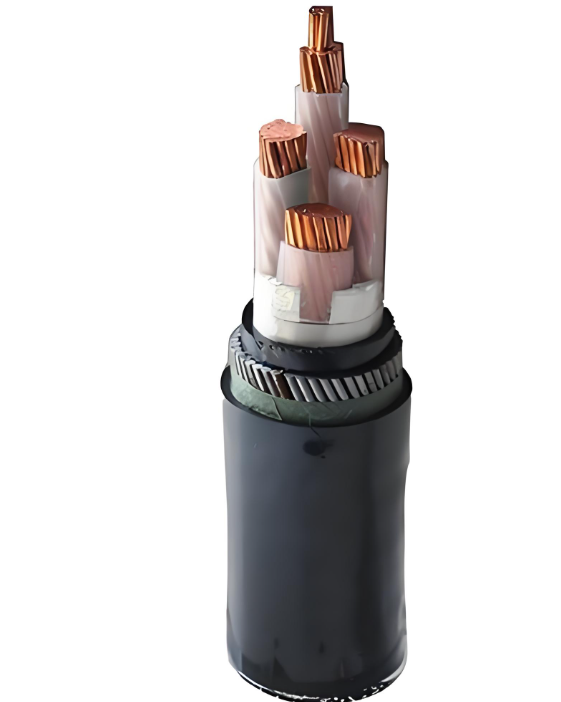

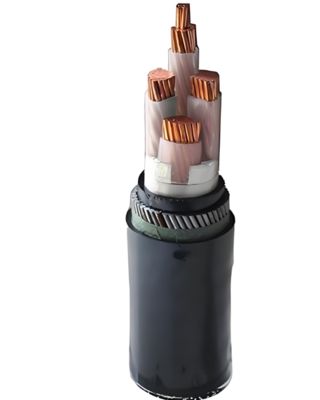

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable
| Voltage: | 0.6/ 1kV | Armoring: | No |
| Insulation: | PVC | Core: | Multi Cores |
| Temperature range: | - 30℃ To + 70℃ | Sheathed: | PVC |
| High Light: | EAC certified PVC power cable,underground PVC insulated cable,0.6/1kV copper power cable |
||
EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable
APPLICATION
This product is suitable for rated voltage not exceeding 0.6/1kV.In the line, for transmission and distribution of energy.
CONSTRUCTION
- Conductor: Class 1/Class 2 stranded Copper conductor
- Insulation: Polyvinyl chloride (PVC)
- Filler(options) : Polypropylene mesh tearing rope
- Inner sheath: Polyvinyl chloride (PVC)
- Armour: Stainless steel tape(single core)galvanized steel tape(multi core)
- Outer sheath: Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:15D multi core:12D
SPECIFICATIONS
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Lining thickness mm |
Nominal thickness of steel tape mm |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
3×1.5 |
1.38 |
0.8 |
1.0 |
0.2 |
1.8 |
13.9 |
274 |
|
3×2.5 |
1.78 |
0.8 |
1.0 |
0.2 |
1.8 |
14.7 |
323 |
|
3×4 |
2.25 |
1.0 |
1.0 |
0.2 |
1.8 |
16.7 |
425 |
|
3×6 |
2.76 |
1.0 |
1.0 |
0.2 |
1.8 |
17.7 |
508 |
|
3×10 |
4.0 |
1.0 |
1.0 |
0.2 |
1.8 |
20.4 |
688 |
|
3×16 |
5.0 |
1.0 |
1.0 |
0.2 |
1.8 |
22.5 |
908 |
|
3×25 |
6.1 |
1.2 |
1.0 |
0.2 |
1.8 |
25.8 |
1271 |
|
3×35 |
7.2 |
1.2 |
1.0 |
0.2 |
1.8 |
28.4 |
1615 |
|
3×50 |
8.4 |
1.4 |
1.0 |
0.2 |
1.9 |
32.1 |
2093 |
|
3×70 |
10.0 |
1.4 |
1.2 |
0.2 |
2.0 |
36.2 |
2830 |
|
3×95 |
12.0 |
1.6 |
1.2 |
0.5 |
2.2 |
43.1 |
4202 |
|
3×120 |
13.0 |
1.6 |
1.2 |
0.5 |
2.3 |
45.4 |
4986 |
|
3×150 |
14.9 |
1.8 |
1.4 |
0.5 |
2.5 |
51.2 |
6139 |
|
3×185 |
16.5 |
2.0 |
1.4 |
0.5 |
2.6 |
55.8 |
7423 |
|
3×240 |
18.4 |
2.2 |
1.6 |
0.5 |
2.8 |
61.6 |
9441 |
|
3×300 |
21.0 |
2.4 |
1.6 |
0.5 |
3.0 |
68.5 |
11614 |
|
3×400 |
23.4 |
2.6 |
1.8 |
0.5 |
33 |
75.6 |
14589 |
Contact us for more information
OUR FACTORY
PROJECTS
PARTNER
DELIVERY AND PACAKGE
FAQ
Is the cable suitable for underground installation?
Yes, its PVC sheath provides excellent moisture and mechanical protection for underground use
Does the cable support flame-retardant properties?
Flame-retardant variants are available for high-risk areas like tunnels and power stations
Can the cable be used in coastal areas?
Yes, its PVC insulation resists saltwater corrosion, making it ideal for coastal projects
What is the expected lifespan of the cable?
Designed for a safe working life of at least 20 years under standard conditions
Are custom lengths and configurations possible?
Yes, manufacturers offer customization for voltage, conductor size, and sheath color
How should the cable be stored before installation?
Store in a dry, shaded area to prevent UV degradation and avoid bending beyond its minimum radius.
