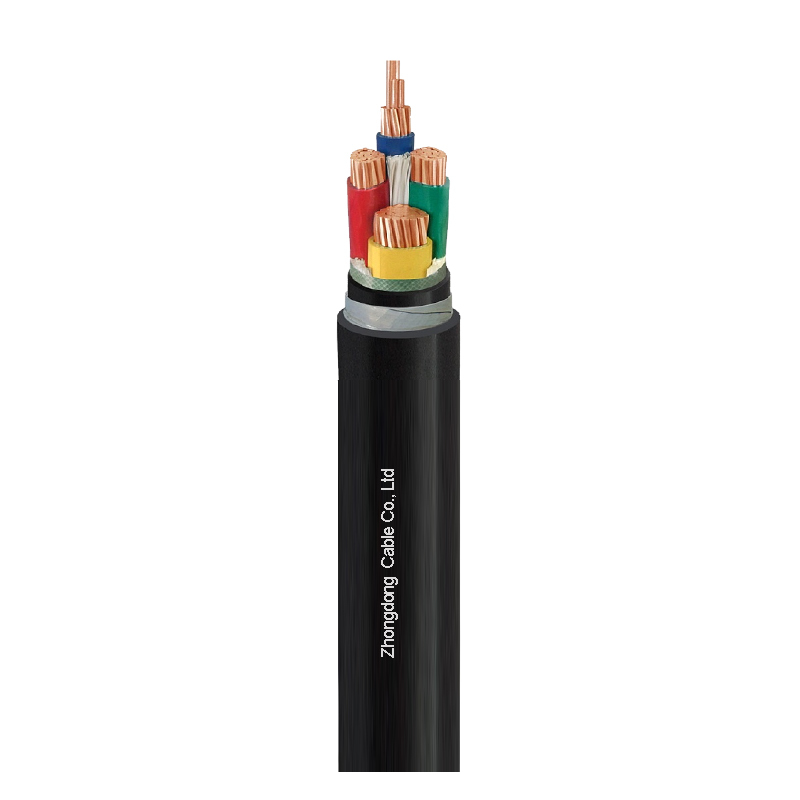

PVC Insulated Power Cable  Steel Tape Wire Armoured PVC Sheathed Electrical Power Wire

APPLICATION

This product is suitable for rated voltage not exceeding 0.6/1kV.In the line, for transmission and distribution of energy.

CONSTRUCTION

• Conductor: Class 1/Class 2 stranded Copper conductor
• Insulation: Polyvinyl chloride (PVC)
• Filler(options) : Polypropylene mesh tearing rope
• Inner sheath:  Polyvinyl chloride (PVC)
• Armour:   Stainless steel tape(single core)galvanized steel tape(multi core)
• Outer sheath: Polyvinyl chloride (PVC)

STANDARD

GB/T 12706.1,IEC 60502-1

CHARACTERISTIC

• Voltage Rating:  Uo/U:0.6/1kV  Um:1.2kV
• Maximum operating temperature of conductor:+70℃
• Operating ambient temperature: -20℃~+45℃
• Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
•  Minimum Bending Radius:   Single core:15D    multi core:12D

SPECIFICATIONS

OUR FACTORY

PROJECTS

PARTNER

DELIVERY AND PACAKGE

FAQ

1. What are the key specifications of this cable?

• Voltage Rating: 0.6/1kV (standard for low-voltage applications).

• Construction: PVC insulation + steel tape armour + PVC sheath.

• Conductor Material: Copper or aluminum (specify when ordering).

2. Where is this cable typically used?

• Suitable for underground laying, tunnels, and direct burial due to its mechanical protection.

• Not recommended for high-tension overhead lines.

3. How does it compare to YJV22 cables?

• Both have steel tape armour, but YJV22 uses XLPE insulation (higher heat resistance).

• PVC-insulated version is more cost-effective for moderate environments.

4. Can it be used in wet conditions?

• Yes, the PVC sheath provides moisture resistance, but not for submarine applications.

5. Is customization available?

• Yes, including voltage, core count, and conductor size.

6. How to ensure safe installation?

• Avoid sharp bends during laying; use protective conduits in corrosive soils
