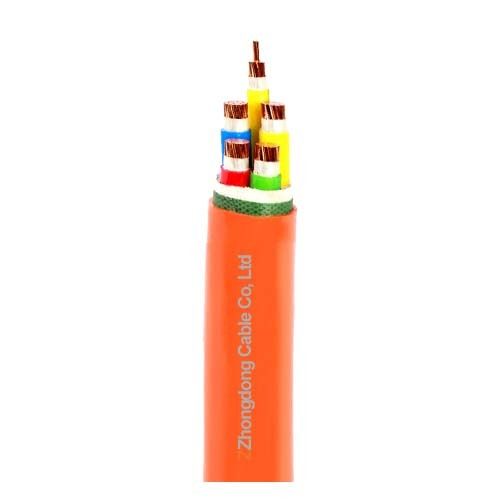

0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331
| Usage: | Access Control System | Insulation: | XLPE PE PVC |
| Voltage: | 300/500V ,450/750V | Length: | Customized |
| Conductor Material: | Copper | Packing: | Neutral Carton Packing Or Customized |
| High Light: | 1kV Fire Resistant Power Cable,XLPE Fire Resistant Power Cable,07V-Z Fire Resistant Power Cable |
||
0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331
APPLICATION
This product is suitable for use in line filling circuits rated voltage not exceeding 0.6/1kV for power transmission and distribution
CONSTRUCTION
Conductor:Class 1/Class 2 stranded Copper conductor
Refractory layer:Single sided gold mica tape
Insulation:XLPE
Filler(options):Polypropylene mesh tear rope or flame-retardant filling
Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
Voltage Rating:Uo/U:0.6/1kV Um:1.2kV
Temperature Rating
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius:Single core:20D multi core:15D (D is the actual outer diameter of the cable)
PARAMETERS
|
Spec |
Conductor diameter mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
||||||
|
NH |
ZAN |
ZBN |
ZCN |
NH |
ZAN |
ZBN |
ZCN |
||
|
1×1.5 |
1.39 |
6.0 |
6.0 |
6.0 |
6.0 |
53.6 |
55.1 |
55.1 |
55.1 |
|
1×2.5 |
1.76 |
6.3 |
6.3 |
6.3 |
6.3 |
66.2 |
67.8 |
67.8 |
67.8 |
|
1×4 |
2.22 |
6.8 |
6.8 |
6.8 |
6.8 |
84.1 |
85.9 |
85.9 |
85.9 |
|
1×6 |
2.74 |
7.3 |
7.3 |
7.3 |
7.3 |
107.2 |
109.1 |
109.1 |
109.1 |
|
1×10 |
4.0 |
8.6 |
8.6 |
8.6 |
8.6 |
153.6 |
155.6 |
155.6 |
155.6 |
|
1×16 |
5.0 |
9.6 |
10.2 |
10.2 |
10.2 |
215.7 |
228.6 |
228.6 |
228.6 |
|
1×25 |
6.1 |
11.1 |
11.7 |
11.7 |
11.7 |
315.1 |
329.8 |
329.8 |
327.9 |
|
1×35 |
7.2 |
12.2 |
12.8 |
12.8 |
12.8 |
411.3 |
427.2 |
427.2 |
425.2 |
|
1×50 |
8.4 |
13.6 |
14.6 |
14.8 |
14.2 |
534.8 |
565.0 |
567.6 |
552.9 |
|
1×70 |
9.2 |
14.6 |
15.6 |
15.8 |
15.2 |
728.1 |
760.3 |
763.0 |
747.4 |
|
1×95 |
10.9 |
16.5 |
17.5 |
17.7 |
17.1 |
983.4 |
1019.9 |
1022.9 |
1005.5 |
|
1×120 |
12.2 |
18.0 |
19.0 |
19.2 |
18.6 |
1217.8 |
1257.3 |
1260.5 |
1237.6 |
|
1×150 |
13.6 |
20.0 |
21.0 |
21.2 |
20.6 |
1497.2 |
1541.4 |
1544.8 |
1519.3 |
|
1×185 |
15.2 |
22.2 |
23.2 |
23.4 |
22.8 |
1863.1 |
1912.4 |
1916.2 |
1887.6 |
|
1×240 |
17.4 |
24.7 |
25.8 |
25.9 |
25.3 |
2407.7 |
2463.0 |
2467.1 |
2432.4 |
|
1×300 |
19.5 |
27.0 |
28.1 |
27.6 |
27.6 |
2981.1 |
3041.2 |
3018.3 |
3007.8 |
|
1×400 |
22.0 |
30.3 |
31.3 |
30.9 |
30.9 |
3782.5 |
3851.0 |
3825.4 |
3812.4 |
|
1×500 |
24.8 |
33.7 |
34.7 |
34.3 |
34.3 |
4791.2 |
4867.8 |
4839.5 |
4824.3 |
|
1×630 |
28.2 |
37.7 |
38.7 |
38.3 |
38.3 |
6138.8 |
6224.9 |
6193.4 |
6175.6 |
|
1×800 |
34.0 |
44.1 |
45.1 |
44.7 |
44.7 |
7994.7 |
8095.8 |
8059.2 |
8037.4 |
|
2×1.5 |
1.39 |
10.5 |
10.8 |
10.8 |
10.8 |
129.4 |
143.3 |
143.3 |
143.3 |
|
2×2.5 |
1.76 |
11.2 |
11.5 |
11.5 |
11.2 |
158.0 |
172.8 |
172.8 |
161.9 |
|
2×4 |
2.22 |
12.2 |
12.5 |
12.5 |
12.2 |
198.4 |
215.0 |
215.0 |
202.7 |
|
2×6 |
2.74 |
13.2 |
13.5 |
13.5 |
13.2 |
249.8 |
268.7 |
268.7 |
254.5 |
|
2×10 |
4.0 |
15.7 |
16.0 |
16.0 |
16.0 |
355.6 |
402.8 |
407.8 |
373.4 |
|
2×16 |
5.0 |
17.7 |
18.0 |
18.0 |
18.0 |
492.1 |
553.6 |
559.3 |
514.0 |
|
2×25 |
6.1 |
21.1 |
21.1 |
21.1 |
21.1 |
717.2 |
798.9 |
805.6 |
740.6 |
|
2×35 |
7.2 |
23.3 |
23.3 |
23.3 |
23.3 |
927.1 |
1029.7 |
1037.2 |
955.8 |
|
2×50 |
8.4 |
26.1 |
26.5 |
26.1 |
26.1 |
1198.3 |
1362.4 |
1333.7 |
1234.3 |
|
2×70 |
10.0 |
29.7 |
30.1 |
29.7 |
29.7 |
1649.0 |
1862.1 |
1829.5 |
1695.8 |
|
2×95 |
12.0 |
34.0 |
34.5 |
34.0 |
34.0 |
2232.5 |
2508.8 |
2470.5 |
2292.7 |
|
2×120 |
12.2 |
35.0 |
35.4 |
35.0 |
35.0 |
2685.7 |
2976.2 |
2936.3 |
2748.8 |
|
2×150 |
13.6 |
38.8 |
38.8 |
38.8 |
38.8 |
3292.1 |
3613.4 |
3603.1 |
3369.2 |
|
2×185 |
15.2 |
43.0 |
43.0 |
43.0 |
43.0 |
4081.5 |
4479.2 |
4461.3 |
4175.7 |
|
2×240 |
17.4 |
48.2 |
48.2 |
48.2 |
48.2 |
5269.2 |
5769.9 |
5748.0 |
5386.2 |
|
2×300 |
19.5 |
53.2 |
53.2 |
53.2 |
53.2 |
6546.9 |
7130.4 |
7130.4 |
6687.8 |
|
2×400 |
22.0 |
59.3 |
59.3 |
59.3 |
59.3 |
8267.2 |
8998.7 |
8998.7 |
8441.7 |
|
3×1.5 |
1.39 |
11.1 |
11.4 |
11.4 |
11.4 |
155.3 |
169.3 |
169.3 |
169.3 |
|
3×2.5 |
1.76 |
11.9 |
12.2 |
12.2 |
11.9 |
194.6 |
209.3 |
209.3 |
198.8 |
|
3×4 |
2.22 |
12.9 |
13.2 |
13.2 |
12.9 |
250.4 |
266.9 |
266.9 |
255.0 |
|
3×6 |
2.74 |
14.0 |
14.3 |
14.3 |
14.0 |
322.1 |
340.7 |
340.7 |
327.2 |
|
3×10 |
4.0 |
16.7 |
17.0 |
17.0 |
17.0 |
466.6 |
508.2 |
513.6 |
483.7 |
