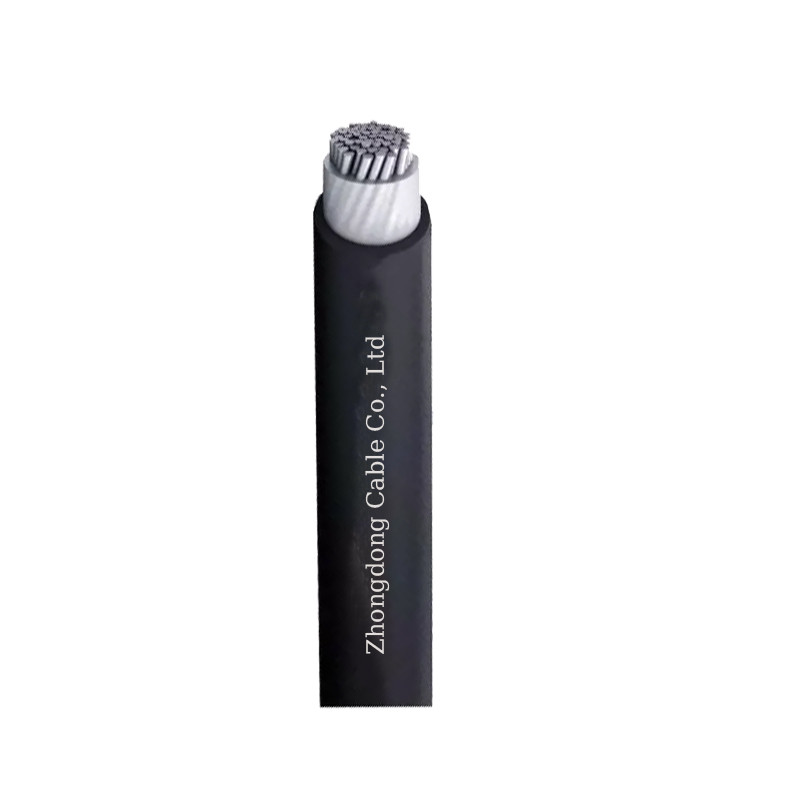

26/35kv PVC Insulated Power Cable Watertight Single Core Three Core Medium Voltage Aluminium Cable

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

31.2

41.2

2192

3×50

7.6±0.2

31.2

833

7350

1×70

9.2±0.2

32.8

43.0

2376

3×70

9.2±0.2

32.8

86.9

7989

1×95

10.9±0.2

34.5

44.7

2554

3×95

10.9±0.2

34.5

903

8633

1×120

12.2±0.2

35.8

46.1

2738

3×120

12.2±0.2

35.8

93.6

9314

1×150

13.6±0.2

37.2

47.7

2939

3×150

13.6±0.2

37.2

96.8

10003

1×185

15.2±0.2

38.8

49.5

3182

3×185

15.2±0.2

38.8

100.6

10803

1×240

17.4±0.2

41.0

51.7

3493

3×240

17.4±0.2

41.0

105.8

11996

1×300

19.5±0.2

43.1

54.1

3855

3×300

19.5±0.2

43.1

110.4

13154

1×400

22.0±0.2

45.6

56.8

4349

3×400

22.0±0.2

45.6

117.8

14927

1×500/35

24.8±0.2

49.2

63.1

5275

3×500/35

24.8±0.2

49.2

129.7

18186

1×630/35

28.2±0.2

52.6

66.9

5949

3×630/35

28.2±0.2

52.6

137.8

20526

1×800/35

34.0±0.2

58.4

72.8

6872
