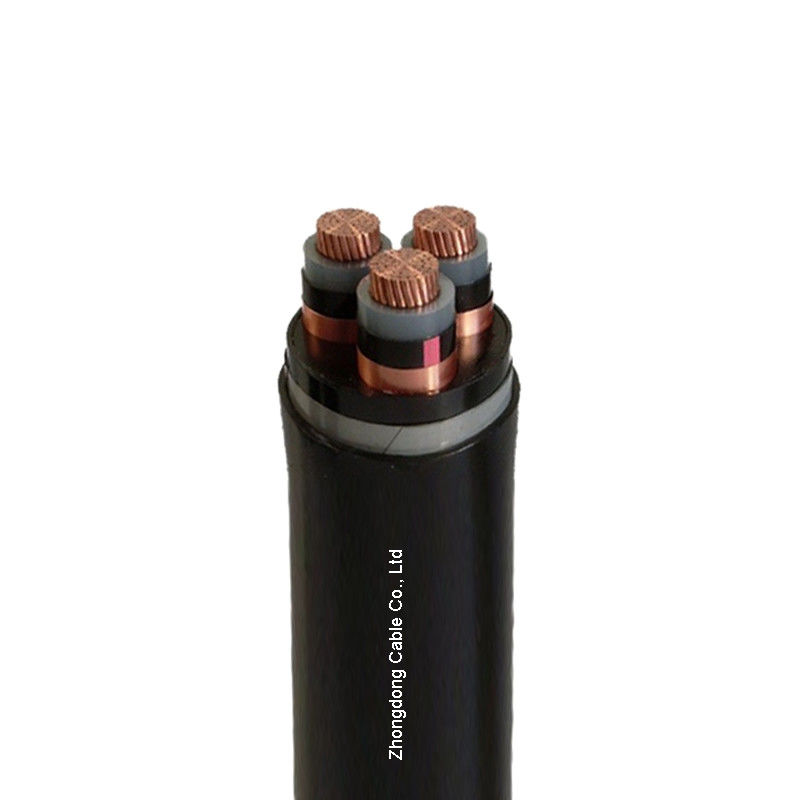

N2XBY N2XSBY PVC Power Cable PVC Sheath Metal Tape Armouring 20kV PVC Insulated Wire
| Armored: | SWA , STA | Sheath Material: | PVC |
| Conductor Size: | Varies | Insulation: | Insulated |
| Rated Voltage: | 0.6/1kV | Length: | Varies |
| High Light: | Metal Tape Armouring PVC Insulated Wire,20kV N2XSBY PVC Power Cable,PVC Sheath PVC Power Cable |
||
N2XBY N2XSBY PVC Insulated Power Cable PVC Sheath Metal Tape Armouring Power Cable 20kV
Application
- Underground Power Distribution:Widely used in urban underground networks, industrial parks, and utility grids for efficient energy transmission (rated for 12/20 kV systems)
- Renewable Energy Integration:Connects solar farms, wind turbines, and energy storage systems to substations or grids, offering resistance to environmental stress
- Industrial Facilities:Supplies power to heavy machinery, transformers, and switchgear in factories, mining sites, and petrochemical plante
- Tunnels and Subways:Deployed in confined or humid spaces due to its moisture-resistant sheath and mechanical durability
- Fire-Sensitive Areas:Suitable for installations requiring low-smoke, flame-retardant properties (e.g., commercial buildings, hospitals
Construction
- Conductor: Round compacted conductors
- Conductor Shield: Semi conductive shielding material (below 500mm) Semi conductive tape+semi conductive shielding material (500mmand above)
- Insulation:Polyvinyl chloride (PVC)
- Insulation Shield: Peelable semiconducting shielding material
- Metal Shield Layer: Copper Tape Copper Wire(35kV 500mm above)
- Filler: Polypropylene(PP) mesh filling rope
- Binder Tape: Non hygroscopic straps
- Armouring: Steel Tape(Single core) Galvanized steel tape(3 core)
- Outer sheath: 90℃ Polyvinyl chloride (PVC)
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×35 |
6.6±0.2 |
20.0 |
27.2 |
1167 |
3×35 |
6.6±0.2 |
20.0 |
54.1 |
3935 |
|
|
1×50 |
7.6±0.2 |
21.0 |
28.2 |
1319 |
3×50 |
7.6±0.2 |
21.0 |
56.6 |
4480 |
|
|
1×70 |
9.2±0.2 |
22.6 |
30.0 |
1589 |
3×70 |
9.2±0.2 |
22.6 |
60.2 |
5336 |
|
|
1×95 |
10.9±0.2 |
24.3 |
31.7 |
1897 |
3×95 |
10.9±0.2 |
24.3 |
64.2 |
6387 |
|
|
1×120 |
12.2±0.2 |
25.6 |
33.2 |
2186 |
3×120 |
12.2±0.2 |
25.6 |
67.3 |
7326 |
|
|
1×150 |
13.6±0.2 |
27.0 |
35.9 |
2821 |
3×150 |
13.6±0.2 |
27.0 |
70.6 |
8340 |
|
|
1×185 |
15.2±0.2 |
28.6 |
37.6 |
3250 |
3×185 |
15.2±0.2 |
28.6 |
74.5 |
9705 |
|
|
1×240 |
17.4±0.2 |
30.8 |
40.0 |
3888 |
3×240 |
17.4±0.2 |
30.8 |
81.0 |
12490 |
|
|
1×300 |
19.5±0.2 |
32.9 |
42.5 |
4583 |
3×300 |
19.5±0.2 |
32.9 |
85.9 |
14635 |
|
|
1×400 |
22.0±0.2 |
35.4 |
45.1 |
5467 |
3×400 |
22.0±0.2 |
35.4 |
91.9 |
17515 |
|
|
1×500 |
24.8±0.2 |
39.0 |
49.1 |
6677 |
3×500 |
24.8±0.2 |
39.0 |
100.2 |
21345 |
|
|
1×630 |
28.2±0.2 |
42.4 |
52.8 |
8180 |
3×630 |
28.2±0.2 |
42.4 |
108.1 |
26055 |
|
|
1×800 |
34.0±0.2 |
48.2 |
58.8 |
10265 |
|
|
|
|
|
