Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length
| Size: | 1.5sqmm~800sqmm | Conductor Typ: | Copper |
| Sheath Color: | Sheath Color | Working Temperature: | 90℃ |
| Jacket: | LSZH (LOW SMOKE AND HELOGEN FREE) | Voltage Rating: | Uo/U 300/500V |
| High Light: | Custom Length Fire Resistant Cable,LSZH Fire Resistant Fiberglass Braid Wire |
||

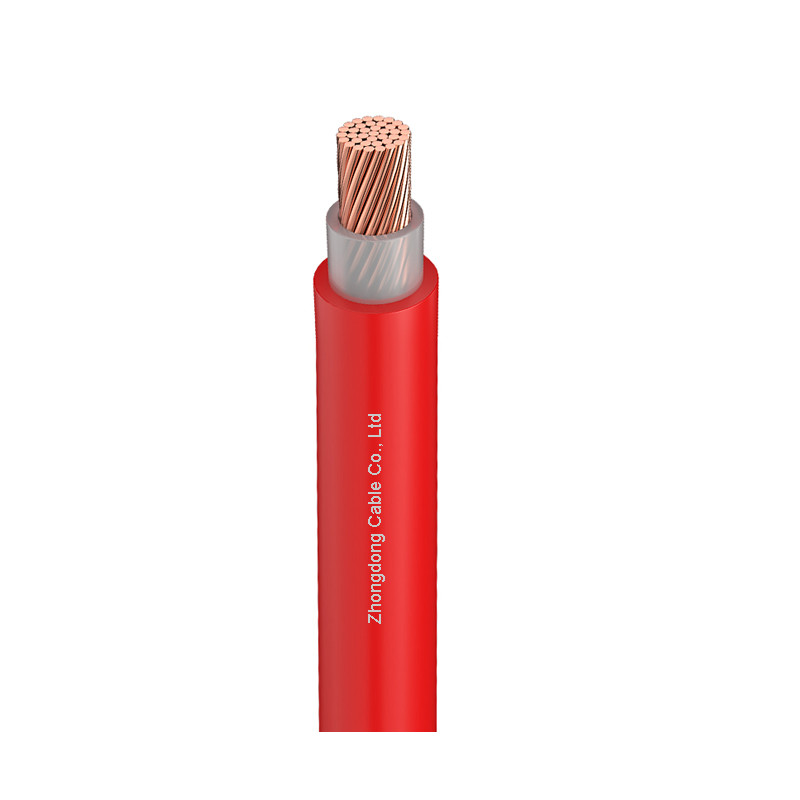

Low Smoke Zero Halogen Fire Resistant Cable Fiberglass Braid Wire
Application
Fire-resistant cables are designed to maintain circuit integrity and continue operating during fire emergencies, ensuring critical systems remain functional. These cables are essential in environments where fire safety and uninterrupted power supply are priorities
Construction
- Conductor: Plain annealed copper (class 2, normal stranded or compact stranded)
- Fire barrier: Mica tape
- Insulation: XLPE
- Filler, binder and inner covering: PP, PET, LSZH
- Outer sheath: LSZH
Advantage
- Life Safety: Protects human lives by maintaining critical systems during fires.
- Asset Protection: Minimizes damage to infrastructure and equipment.
- Regulatory Compliance: Meets stringent building codes and safety regulations.
Technical parameters
Single Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1×70 | 14 | 1.1 | 1.4 | 15.1 | 0.268 |
| 1×95 | 19 | 1.1 | 1.5 | 17.3 | 0.193 |
| 1×120 | 24 | 1.2 | 1.5 | 19.0 | 0.153 |
| 1×150 | 30 | 1.4 | 1.6 | 20.9 | 0.124 |
| 1×185 | 37 | 1.6 |
1.6 |
23.0 | 0.0991 |
| 1×240 | 48 | 1.7 | 1.7 | 25.7 | 0.0754 |
| 1×300 | 61 | 1.8 | 1.8 | 28.3 | 0.0601 |
