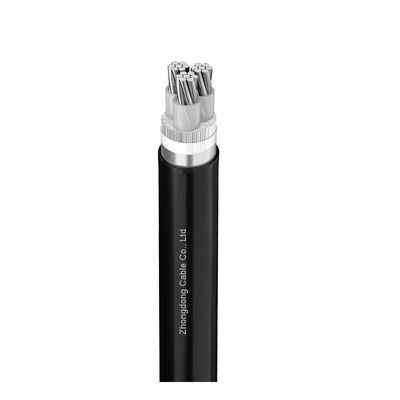

N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable
| Voltage: | 3.6/6kV | Insulation: | XLPE |
| Jacket: | PVC | Feature: | LSZH |
| Amour: | Steel Tape | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | 1kV 3 Core Low Voltage Cable,NA2XBY LV Cable 1kV,N2XBY LV Cable |
||
N2XBY NA2XBY Low Voltage Cable 3 Core 0.6/1kV 0.5 ~ 800MM2
Construction
- Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation: XLPE
- Filler: non-hygroscopic material
- Binder tape: non-hygroscopic material
- Sheath: PVC
Characteristics
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
Specification
|
Specification |
Outer diameter of conductor |
Nominal sheath thickness |
Approx. outer diameter of cable |
Approx. weight of cable |
|
|
mm2 |
mm |
mm |
mm |
kg/km |
|
|
|
|
|
|
CU |
AL |
|
3X1.5 RE |
1.38 |
1.8 |
10.2 |
132 |
104 |
|
3X2.5 RE |
1.78 |
1.8 |
11.1 |
168.7 |
122 |
|
3X4 RE |
2.24 |
1.8 |
12.1 |
220.4 |
145.8 |
|
3X6 RE |
2.76 |
1.8 |
13.2 |
296.6 |
184.7 |
|
3X10 CC |
3.8 |
1.8 |
15.4 |
439.4 |
252.9 |
|
3X16 CC |
4.8 |
1.8 |
17.6 |
645.9 |
347.4 |
|
3X25 CC |
6 |
1.8 |
21 |
937.2 |
470.9 |
|
3X35 CC |
7 |
1.8 |
23.2 |
1231.6 |
578.7 |
|
3X50 SM |
8 |
1.8 |
22.1 |
1611.4 |
678.8 |
|
3X70 SM |
9.5 |
1.9 |
25.7 |
2213.1 |
907.4 |
|
3X95 SM |
11 |
2 |
28.7 |
2938.7 |
1166.6 |
|
3X120 SM |
12.4 |
2.1 |
32.5 |
3687 |
1448.5 |
|
3X150 SM |
13.8 |
2.3 |
36.8 |
4598.4 |
1800.4 |
|
3X185 SM |
15.4 |
2.4 |
40.9 |
5654.8 |
2203.8 |
|
3X240 SM |
17.5 |
2.6 |
45.7 |
7268 |
2791.1 |
|
3X300 SM |
19.6 |
2.8 |
50.5 |
9019.7 |
3423.5 |
Application
- Power distribution in industrial facilities
- Underground cabling for urban grids
- Wind and solar farm connections
- Mining and offshore installations requiring rugged protection
FAQ
Q: Are you the trading company or Manufacturer?
A: We are the manufacturer, and we supply the factory price to you.
Q: What's your payment terms?
A: T/T,L/C,Western Union,etc.
Q: Can I get free samples from you?
A: Yes, we offer free sample, but freight collect.
Q: Where is your factory?
A: Our factory is located in Yingli, HeBei, China. If you want to visit our company, we will arrange everything for you.
Q:What the warrenties do your products carry?
A: We guarantee all of our products, wires and cables, are free from defects. We will take back any product that does not meet the agreed quality by both parties.
