1Kv PE PVC Insulation Aerial Bundled ABC Cable Aluminum Conductor Overhead Cable

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Get Best Price Contact Now

Detail Information

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	PVC Insulation Aerial Bundled ABC Cable , Aluminum Conductor ABC Cable , PE Insulation ABC Overhead Cable

Product Description

600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable

Application:

This product is suitable for overhead power lines that are easy to produce short circuit faults and safety hazards to humans and animals through dense forests and trees

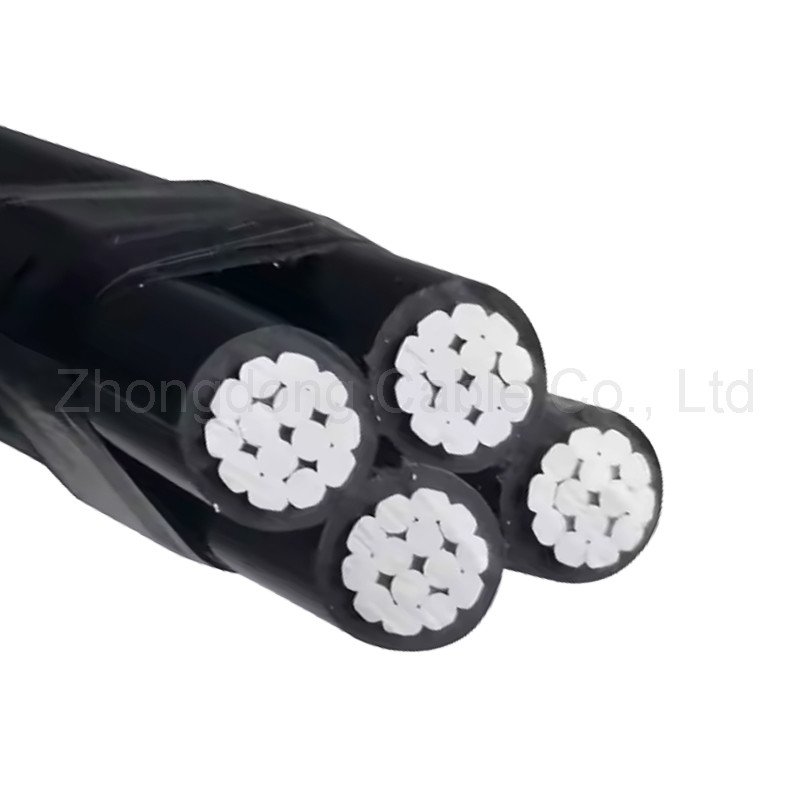

1Kv PE PVC Insulation Aerial Bundled ABC Cable Aluminum Conductor Overhead Cable 0

Construction

Conductor: Aluminum (lightweight, cost-effective).
Insulation:PE or PVC.
Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.

Specifications

LV Aerial Bundled Conductor (ABC) Cables	overall diameter	weight	Maxinum conductor Resistance	Minimum breaking Load	current Rating
No.xmm2	mm	kg/km	Ω/Km	KN	A
1x16+1x25 RM	15.3	160	1,910	2,5	72
3x16+1x25 RM	19	290	1,200	4,0	107
3x25+1x25 RM	23.2	400	0,868	5,5	132
3x35+1x25 RM	25.6	500	0,641	8,0	165
3x50+1x35 RM	30	680	0,443	10,7	205
3x70+1x50 RM	34.9	920	0,320	13,7	240
3x95+1x70 RM	40.6	1270	0,253	18,6	290
3x120+1x70 RM	44.1	1510	0,206	23,2	334
3x150+1x95 RM	49.2	1870	0,164	28,7	389
3x185+1x120 RM	54.9	2340	0,125	37,2	467
3x25+1x25+1x16 RM	23.2	470	1,910	2,5	72
3x35+1x25+1x16 RM	25.6	560	1,200	4,0	107
3x50+1x35+1x16 RM	30	740	0,868	5,5	132
3x70+1x50+1x16 RM	34.9	980	0,641	8,0	165
3x95+1x70+1x16 RM	40.6	1330	0,443	10,7	205
3x120+1x70+1x16 RM	44.1	1580	0,320	13,7	240
3x150+1x95+1x16 RM	49.2	1940	0,206	23,2	334
3x185+1x120+1x16 RM	54.9	2410	1,910	2,5	72
