Three Core Aluminium Conductor Cable Copper Tape Shield Steel Wire Armoured Cable

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Get Best Price Contact Now

Detail Information

Insulation:	XLPE HPDE	Voltage:	18/30kV
Length:	Customized	Conductor Material:	Aluminium Alloy 8000 Series
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead Lines Or Ground Power Supply
Highlight:	Three Core Aluminium Conductor Cable , Copper Tape Shield Three Core Cable

Product Description

Application

Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.

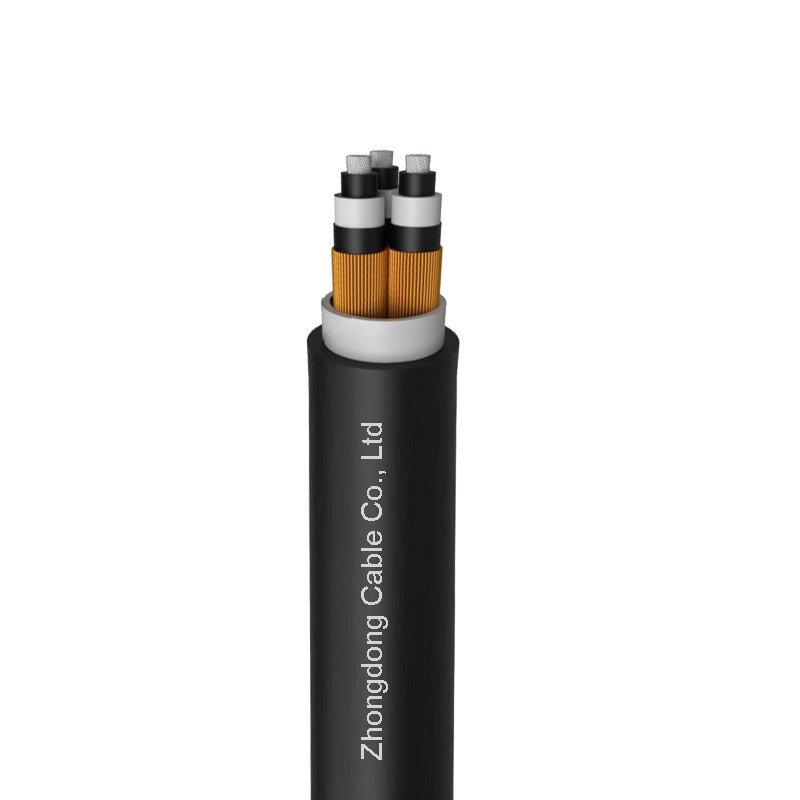

Three Core Aluminium Conductor Cable Copper Tape Shield Steel Wire Armoured Cable 0

Construction

YJLHV62 YJLHV22-18/30kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
3×50	7.6±0.2	256	68.1	4915
3×70	9.2±0.2	27.2	71.7	5417
3×95	10.9±0.2	28.9	75.8	6002
3×120	12.2±0.2	302	80.3	7343
3×150	13.6±0.2	31.6	83.5	7932
3×185	15.2±0.2	33.2	87.3	8705
3×240	17.4±0.2	35.4	92.5	9801
3×300	19.5±0.2	37.5	97.4	10875
3×400	22.0±0.2	40.0	103.5	12531
3×500	24.8±0.2	43.6	111.8	14423
3×630	28.2±0.2	47.0	119.8	16614
