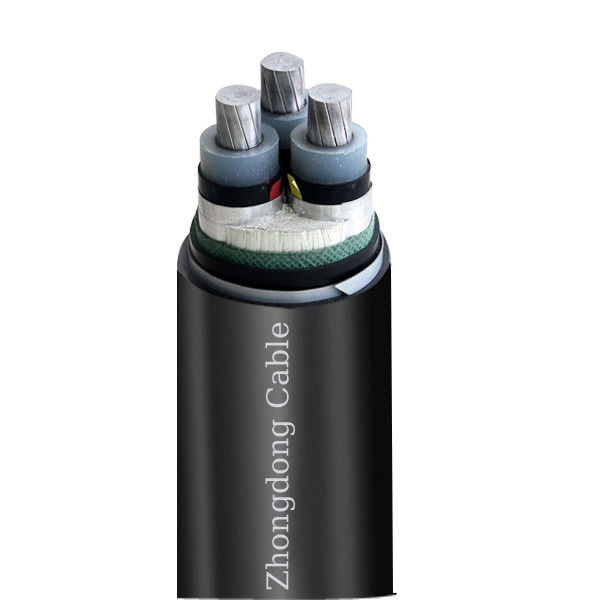

Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath
| Insulation: | XLPE HPDE | Voltage: | 600/1000V |
| Length: | Customized | Conductor Material: | Copper |
| Packing: | Neutral Carton Packing Or Customized | Application: | Overhead |
| High Light: | PVC Sheath Aluminum Power Cable,MV 35 KV Aluminum Power Cable,Copper Tape Shield Aluminum Power Cable |
||
Medium Voltage 26/35 kV Aluminium Conductor Cable Copper Tape Shield PVC Sheath
Application
Medium-voltage aluminum alloy cables are used in power distribution and industrial systems where lightweight design, cost efficiency, and corrosion resistance are critical Key applications include:
- Urban/Suburban Grids: Overhead or underground power distribution (1–35 kV) for residential/commercial areas, reducing installation costs vs. copper.
- Industrial Power Networks: Factories, mines, and ports requiring durable, corrosion-resistant cables for machinery and substation links.
- Renewable Energy: Solar/wind farm connections, leveraging lightweight aluminum for long-span installations.
- Railway Electrification: Overhead lines or ground power supply with high mechanical strength.
Construction
- Conductor
- Conductor Shiel
- Insulation
- Metal Shield Layer
- Filler
- Binder Tape
- Armouring
- Outer sheath
Laying Method
Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.
Specification
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approxi outer diameter of cable |
Approx cable weight |
|
1×25 |
6.0±0.1 |
12.2 |
21.1 |
604 |
3×25 |
6.0±0.1 |
12.2 |
39.0 |
1909 |
|
|
1×35 |
6.6±0.2 |
12.8 |
21.7 |
670 |
3×35 |
6.6±0.2 |
12.8 |
41.6 |
2167 |
|
|
1×50 |
7.6±0.2 |
13.8 |
22.9 |
759 |
3×50 |
7.6±0.2 |
13.8 |
44.6 |
2485 |
|
|
1×70 |
9.2±0.2 |
15.4 |
24.5 |
869 |
3×70 |
9.2±0.2 |
15.4 |
48.2 |
2899 |
|
|
1×95 |
10.9±0.2 |
17.1 |
26.4 |
993 |
3×95 |
10.9±0.2 |
17.1 |
51.6 |
3338 |
|
|
1×120 |
12.2±0.2 |
18.4 |
27.7 |
1110 |
3×120 |
12.2±0.2 |
18.4 |
54.9 |
3802 |
|
|
1×150 |
13.6±0.2 |
19.8 |
29.2 |
1253 |
3×150 |
13.6±0.2 |
19.8 |
58.0 |
4292 |
|
|
1×185 |
15.2±0.2 |
21.4 |
30.8 |
1412 |
3×185 |
15.2±0.2 |
21.4 |
61.9 |
4861 |
|
|
1×240 |
17.4±0.2 |
23.8 |
33.4 |
1669 |
3×240 |
17.4±0.2 |
23.8 |
67.5 |
5777 |
|
|
1×300 |
19.5±0.2 |
26.3 |
37.5 |
2306 |
3×300 |
19.5±0.2 |
26.3 |
73.1 |
6782 |
|
|
1×400 |
22.0±0.2 |
29.2 |
40.6 |
2758 |
3×400 |
22.0±0.2 |
29.2 |
82.7 |
9086 |
|
|
1×500 |
24.8±0.2 |
33.2 |
45.0 |
3296 |
3×500 |
24.8±0.2 |
332 |
90.4 |
10871 |
|
|
1×630 |
28.2±0.2 |
366 |
48.7 |
3875 |
3×630 |
282±0.2 |
36.6 |
98.7 |
12870 |
|
|
1×800 |
34.0±0.2 |
42.4 |
54.7 |
4663 |
|
|
|
|
|
