Detail Information

Insulation:	XLPE HPDE	Voltage:	3.6/6 KV
Length:	Customized	Conductor Material:	Copper
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	Copper Tape Shield Aluminium Conductor Cable , Customized Aluminium Conductor Cable 6kV

Product Description

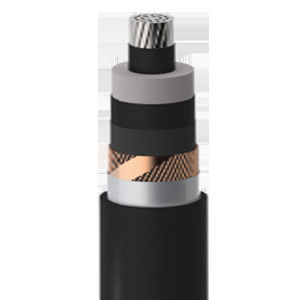

Copper Tape Shield Aluminium Alloy Conductor Cable 3.6/6kV Medium Voltage

Application

Direct Burial Installation‌: Designed for underground installation with steel tape or steel wire armor, providing superior resistance to mechanical pressure, rodent damage, and insect intrusion in soil environments.
Industrial Infrastructure‌: Widely used in cable trenches, trays, and conduits within factories, refineries, and mining facilities, where high mechanical stress and electromagnetic interference must be mitigated.
Power Distribution Networks‌: Connects substations and switchgear rooms to supply stable power to large-scale commercial buildings, industrial complexes, and urban distribution systems.
Harsh Environmental Conditions‌: Engineered with corrosion-resistant sheathing for deployment in chemical plants, coastal zones, and high-humidity industrial areas.

Construction

1.Conductor:Round compacted conductors

2.Conductor Shield:Semi conductive shielding material (below 500mm2)Semi conductive tape+semi conductive shielding material (500mm2 and above)

3.Insulation:Polyvinyl chloride (PVC)

4.Insulation Shield:Peelable semiconducting shielding material

5.Metal Shield Layer:Copper Tape Copper Wire(35kV 500mm above)

6.Filler:Polypropylene(PP) mesh filling rope

7.Binder Tape:Non hygroscopic straps

8. Armouring:Steel Tape(Single core) Galvanized steel tape(3 core)

9. Outer sheath: 90℃ Polyvinyl chloride (PVC)

Specification

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approxi outer diameter of cable mm	Approx cable weight kg/km
1×25	6.0±0.1	12.2	21.1	604	3×25	6.0±0.1	12.2	39.0	1909
1×35	6.6±0.2	12.8	21.7	670	3×35	6.6±0.2	12.8	41.6	2167
1×50	7.6±0.2	13.8	22.9	759	3×50	7.6±0.2	13.8	44.6	2485
1×70	9.2±0.2	15.4	24.5	869	3×70	9.2±0.2	15.4	48.2	2899
1×95	10.9±0.2	17.1	26.4	993	3×95	10.9±0.2	17.1	51.6	3338
1×120	12.2±0.2	18.4	27.7	1110	3×120	12.2±0.2	18.4	54.9	3802
1×150	13.6±0.2	19.8	29.2	1253	3×150	13.6±0.2	19.8	58.0	4292
1×185	15.2±0.2	21.4	30.8	1412	3×185	15.2±0.2	21.4	61.9	4861
1×240	17.4±0.2	23.8	33.4	1669	3×240	17.4±0.2	23.8	67.5	5777
1×300	19.5±0.2	26.3	37.5	2306	3×300	19.5±0.2	26.3	73.1	6782
1×400	22.0±0.2	29.2	40.6	2758	3×400	22.0±0.2	29.2	82.7	9086
1×500	24.8±0.2	33.2	45.0	3296	3×500	24.8±0.2	332	90.4	10871
1×630	28.2±0.2	366	48.7	3875	3×630	282±0.2	36.6	98.7	12870
1×800	34.0±0.2	42.4	54.7	4663

OUR FACTORY

Copper Tape Shield Aluminium Conductor Cable 3.6 KV 6kV Medium Voltage Customized 2

PROJECT

Copper Tape Shield Aluminium Conductor Cable 3.6 KV 6kV Medium Voltage Customized 3

APPLICATION

Copper Tape Shield Aluminium Conductor Cable 3.6 KV 6kV Medium Voltage Customized 4

CERTIFICATES

Copper Tape Shield Aluminium Conductor Cable 3.6 KV 6kV Medium Voltage Customized 5

FAQ

What cable specifications do you offer?

We supply power cables, solar cables, ABC cables, bare conductor, housing wire, instrument and control cables and more.

Are your cables internationally certified?

Yes, our products meet IEC, CE and other regional standards.

What's the lead time for regular orders?

7-30 working days, negotiable for urgent requests.

Can you provide custom cable solutions?

Yes, customized specs, lengths and colors are available.

How do you ensure the quality before delivery?

100% full inspection, with test reports provided.

How are cables packaged for shipment?

Standard cable reels, suitable for sea/land transportation.

What's your after-sales service policy?

12-month warranty with professional technical support.
