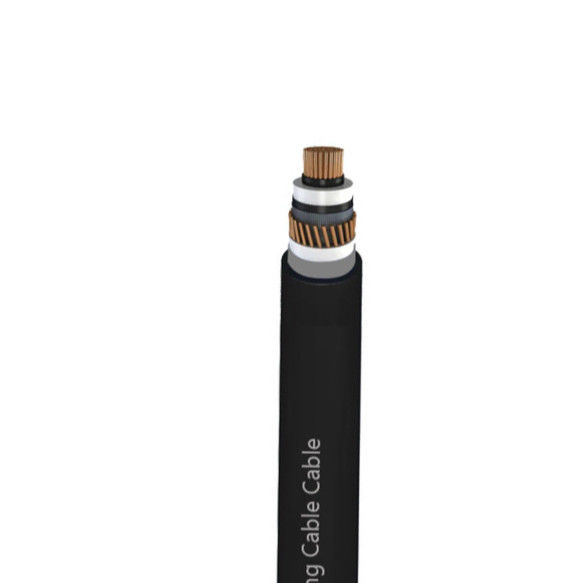

Copper Wire Shielded Steel Tape Armoured STA Cable Medium Voltage 8.7/15kV MV Power Cable
| Armored: | Unarmored | Sheath Material: | PVC |
| Conductor Size: | Varies | Insulation: | Insulated |
| Rated Voltage: | 8.7/15kV | Length: | Varies |
| High Light: | Copper Wire Armoured STA Cable,Steel Tape Armoured STA Cable,15kV STA Cable Medium Voltage |
||
- Telecommunications
- Industrial Automation
- Medical Equipment
- Aerospace and Defense
- Consumer Electronics
- Power and Energy
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering (bedding): PVC
- Metallic armor: Galvanized steel tape
| Spec mm² | Conductor diameter mm | Thickness of Insulation mm | Outer diameter of Insulation ±1.0mm | Thickness of Jacket mm | Approximate outer diameter mm | Weight kg/km |
|---|---|---|---|---|---|---|
| 1×25 | 6.0 | 4.5 | 17.0 | 1.6 | 23.0 | 703 |
| 1×35 | 7.0 | 4.5 | 18.0 | 1.7 | 24.2 | 832 |
| 1×50 | 8.2 | 4.5 | 19.2 | 1.7 | 25.4 | 977 |
| 1×70 | 10.0 | 4.5 | 20.8 | 1.8 | 27.2 | 1228 |
| 1×95 | 11.6 | 4.5 | 22.6 | 1.8 | 29.0 | 1519 |
| 1×120 | 13.0 | 4.5 | 24.0 | 1.9 | 30.6 | 1799 |
| 1×150 | 14.4 | 4.5 | 25.4 | 1.9 | 32.0 | 2093 |
| 1×185 | 16.1 | 4.5 | 27.2 | 2.0 | 34.0 | 2485 |
| 1×240 | 18.4 | 4.5 | 29.4 | 2.1 | 36.4 | 3076 |
| 1×300 | 20.6 | 4.5 | 31.6 | 2.1 | 38.6 | 3693 |
| 1×400 | 23.4 | 4.5 | 34.4 | 2.2 | 41.6 | 4566 |
| 1×500 | 26.6 | 4.5 | 38.4 | 2.3 | 46.2 | 5749 |
| 1×630 | 30.0 | 4.5 | 41.8 | 2.4 | 49.8 | 7135 |
| 1×800 | 34.0 | 4.5 | 45.8 | 2.6 | 54.2 | 8912 |
-
NProfessional factory and fast delivery, a pleasant cooperation
