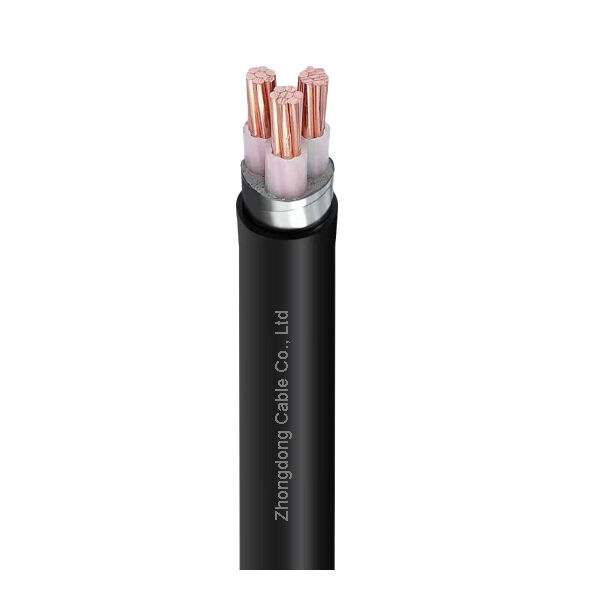

IEC60502-1 Standard Low Voltage Cable CU XLPE PVC STA Armoured Power Cable
| Voltage: | 3.6/6kV | Insulation: | XLPE |
| Jacket: | PVC | Feature: | LSZH |
| Amour: | Steel Tape | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | IEC60502-1 Standard Low Voltage Cable,Low Voltage Armoured Power Cable |
||
IEC60502-1 Standard Low Voltage Cable CU/XLPE/PVC/STA Armoured
Application
For laying indoors, in tunnel, cable trench, or direct in ground, the cable can bear external mechanical forces but unable to bear large pulling force.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Binder tape:: Non-hygroscopic material
- Sheath PVC
Characteristics
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
Specification
|
General type |
VDE type |
Description |
Application |
|
CU/XLPE/PVC (AL/ XLPE /PVC) |
N2XY(NA2XY) |
Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable |
Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
|
CU/PVC/PE (AL/ XLPE /PE) |
N2X2Y(NA2X2Y) |
Cu conductor(Al conductor)XLPE insulated PE sheathed power cable |
|
|
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
|
CU/XLPE/STA/PE (AL/XLPE/STA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable |
|
|
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PVC sheathed power cable |
|
|
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PE sheathed power cable |
|
|
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
|
CU/XLPE/SWA/PE (AL/PVC/SWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable |
|
|
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PVC sheathed power cable |
|
|
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PE sheathed power cable |
