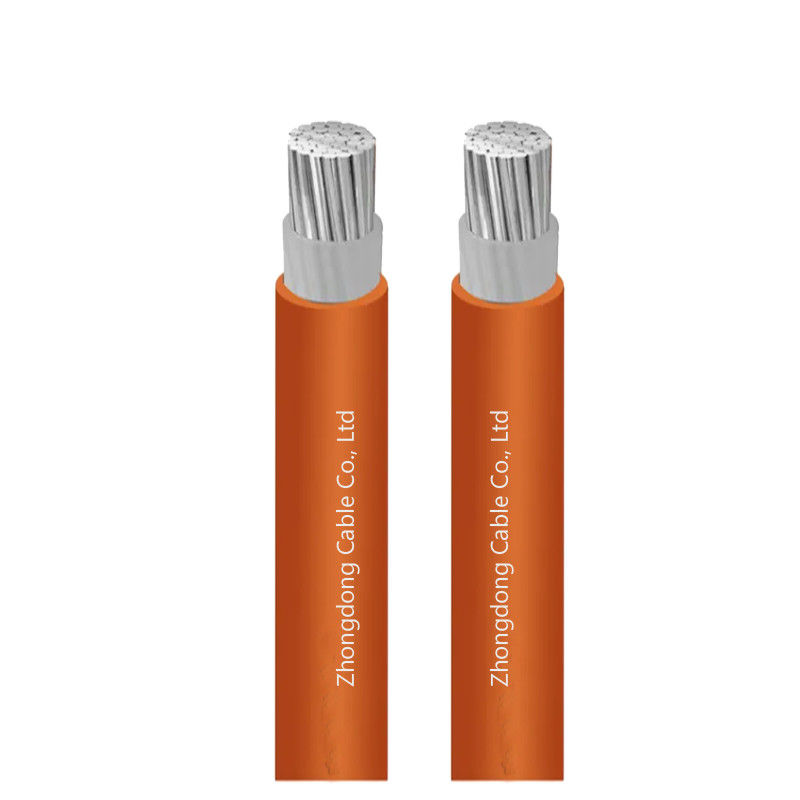

Low Voltage Low Smoke Zero Halogen Power Cable LSZH Fire Resistant Unarmoured
| Voltage: | 3.6/6kV | Insulation: | XLPE |
| Jacket: | PVC | Feature: | LSZH |
| Amour: | Steel Tape | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | Low Voltage LSZH Power Cable,Unarmoured Low Smoke Zero Halogen Cable,Fire Resistant LSZH Power Cable |
||
Low Smoke Zero Halogen Low Voltage Cable LSZH Fire Resistant Unarmoured
APPLICATION
The cables are specialized high-safety cables designed for environments where both fire integrity and human safety are the top priorities, such as fire alarms, airports and railway stations, hospitals and schools and data centers etc.
CCONSTRUCTION
- Conductor :Class 2 stranded copper conductor
- Insulation :XLPE (Cross-Linked Polyethylene)
- Bedding :LSZH (Low Smoke Zero Halogen)
- Sheath :LSZH (Low Smoke Zero Halogen)
ADVANTAGE
- Composite high temperature resistance performance
- Compressive and tensile strengthening
- LSZH jacket
- Anti bending and anti deformation
- Electromagnetic and Environmental Adaptability
- Low frequency interference shielding
- Chemical corrosion protection
- Direct burial without conduit
- Extended lifespan
SPECIFICATION
|
Specification |
Outer diameter of conductor |
Nominal sheath thickness |
Approx. outer diameter of cable |
Approx. weight of cable |
|
|
mm2 |
mm |
mm |
mm |
kg/km |
|
|
|
|
|
|
CU |
AL |
|
1X2.5 RE |
1.78 |
1.4 |
6 |
57.5 |
42.1 |
|
1X4 RE |
2.24 |
1.4 |
6.5 |
73.7 |
49 |
|
1X6 RE |
2.76 |
1.4 |
7 |
95.8 |
58.7 |
|
1X10 CC |
3.8 |
1.4 |
8 |
140.1 |
78.2 |
|
1X16 CC |
4.8 |
1.4 |
9 |
201.8 |
102.8 |
|
1X25 CC |
6 |
1.4 |
10.6 |
298.9 |
144.2 |
|
1X35 CC |
7 |
1.4 |
11.6 |
396.7 |
180.2 |
|
1X50 CC |
8.4 |
1.4 |
13.1 |
543.9 |
234.6 |
|
1X70 CC |
10 |
1.4 |
15 |
744.7 |
311.6 |
|
1X95 CC |
11.5 |
1.5 |
16.6 |
985.6 |
397.8 |
|
1X120 CC |
13 |
1.5 |
18.4 |
1233 |
490.6 |
|
1X150 CC |
14.5 |
1.6 |
20.5 |
1533.8 |
605.8 |
|
1X185 CC |
16.2 |
1.6 |
22.7 |
1884.9 |
740.3 |
|
1X240 CC |
18.4 |
1.7 |
25.3 |
2418 |
933.1 |
|
1X300 CC |
20.5 |
1.8 |
27.7 |
2996.5 |
1140.4 |
|
1X400 CC |
23.5 |
1.9 |
31.4 |
3962.3 |
1487.5 |
|
1X500 CC |
26.5 |
2 |
35 |
4933 |
1839.5 |
|
1X630 CC |
30 |
2.2 |
39.1 |
6188.8 |
2291 |
FACTORY
APPLICATION
PACKAGE
FAQ
Q.why choose us?
A. we are cable manufactory with more than 30 year, we could provide factory-price and customerized service
Q: What is your MOQ?
A: We have a flexible MOQ policy, contact us for more information.
Q: What is the production lead time?
A: 7–30 working days for standard orders; 15–35 working days for customized ones (logo, special materials).
Q: Can I get free samples?
A: We provide free samples to our customers, you only pay the freight charge.
Q: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight. Flexible terms for long-term partners.
Q: How do you ensure cable quality?
A: Full-process quality control (raw material, in-production, final testing) is implemented. A Certificate of Conformity (COC) is provided for all orders.
