Detail Information

Conductor:	Copper	Insulation:	XLPE
Drain Wire:	Tinned Copper	Voltage Rating:	300V
Outer Sheath Colour:	Black,Blue	Temperature:	Fixed -40°C To +80°C
Highlight:	Oil Resistance LSZH Shielded Power Cable , Armoured LSZH Shielded Power Cable

Product Description

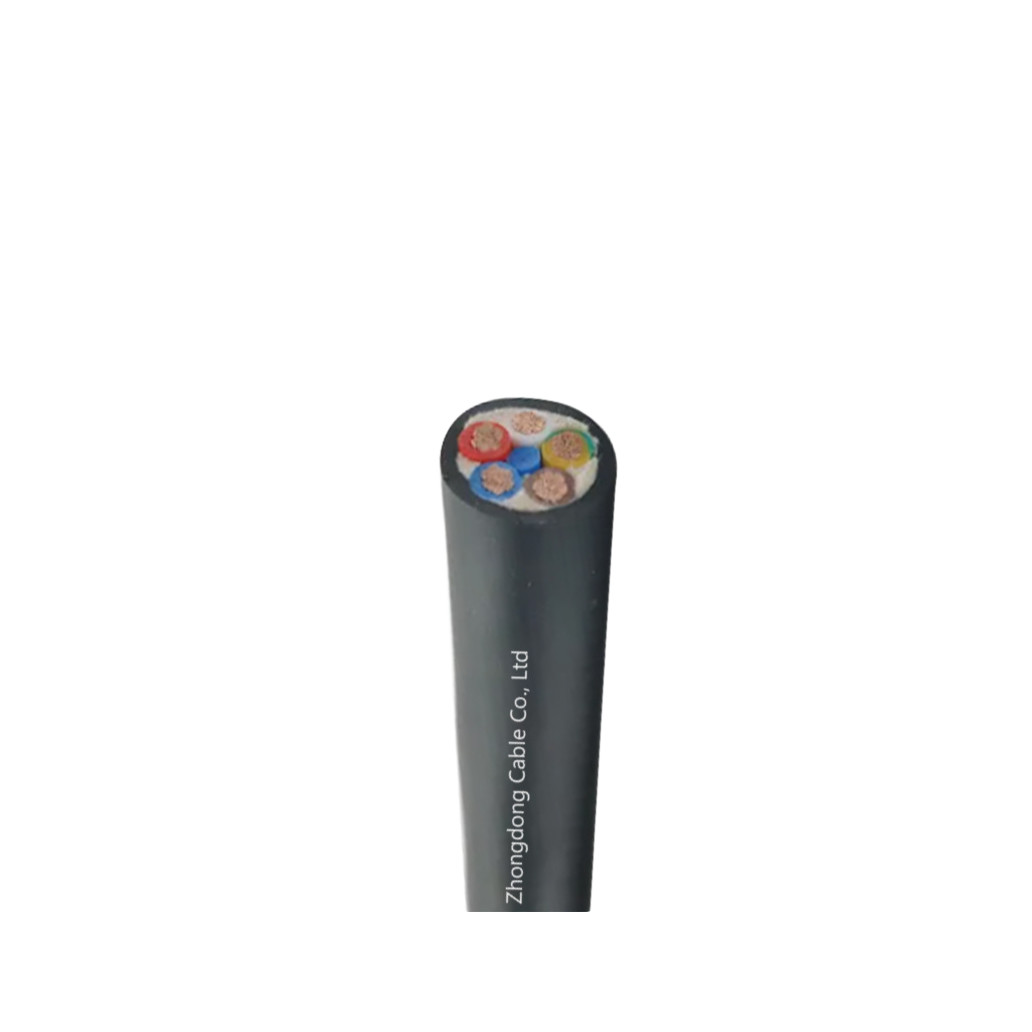

Oil Resistance LSZH Shielded Instrument Cable Armoured Cu/XLPE/Swb/PVC

Name: Oil Resistance LSZH Shielded Power Cable Armoured Cu XLPE Swb PVC Electrical Wire
Brand: Zhongdong Cable Co., Ltd.
SKU: Shielded Instrument Cable
Availability: InStock

Application

It is suitable for a wide range of applications, including industrial, commercial and residential power distribution systems.

Parameter

Voltage Rating :300V
Operating Temperature :Fixed: -40°C to +80°C Flexed: 0°C to +50°C

Minimum internal bending radius 6*cable Diameter

Conductor :0.5mm² - 0.75mm²: Copper 1mm² and above: Copper

Construction

Insulation :XLPE
Collective Screen :Al/PET (Aluminium/Polyester Tape)
Drain Wire :Tinned copper
Sheath :LSZH (Low Smoke Zero Halogen) - UV Resistant

Type Option

No.	Optional Type	Instrumenation Cable Description
1	DJYVPR	Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
2	DJYPVP	Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
3	DJYPVPR	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
4	DJYVP2R	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding
5	DJYP2VR	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
6	DJYP2VP2R	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
7	DJYVP3R	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
8	DJYP3VR	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
9	DJYP3VP3	Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
10	DJYP3VP3R	Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding

Tag:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO
Model Number:	Shielded Instrument Cable

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drums
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week
