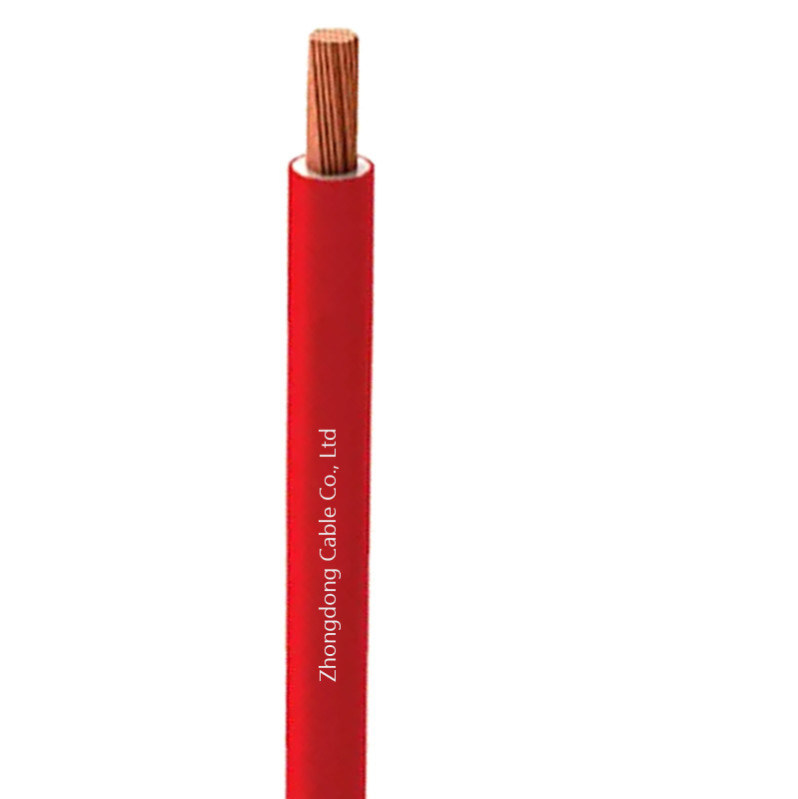

CE Certification Fire Resistant Cable 450V 750V Fire Rated Flexible Cable
| Size: | 1.5sqmm~800sqmm | Conductor Typ: | Copper |
| Sheath Color: | Sheath Color | Working Temperature: | 90℃ |
| Jacket: | LSZH (LOW SMOKE AND HELOGEN FREE) | Voltage Rating: | Uo/U 300/500V |
| High Light: | CE Certification Fire Resistant Cable,750V Fire Rated Flexible Cable |
||
CE Certification Fire Resistant Cable Flexible Cable/Rated voltage 450/750V
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Construction
- Conductor: Plain annealed copper (class 2, normal stranded or compact stranded)
- Fire barrier: Mica tape
- Insulation: XLPE
- Filler, binder and inner covering: PP, PET, LSZH
- Outer sheath: LSZH
Technical parameters
Single Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1×70 | 14 | 1.1 | 1.4 | 15.1 | 0.268 |
| 1×95 | 19 | 1.1 | 1.5 | 17.3 | 0.193 |
| 1×120 | 24 | 1.2 | 1.5 | 19.0 | 0.153 |
| 1×150 | 30 | 1.4 | 1.6 | 20.9 | 0.124 |
| 1×185 | 37 | 1.6 |
1.6 |
23.0 | 0.0991 |
| 1×240 | 48 | 1.7 | 1.7 | 25.7 | 0.0754 |
| 1×300 | 61 | 1.8 | 1.8 | 28.3 | 0.0601 |
