High Temperature Resistant Low Smoke Zero Halogen LSZH Cable Copper Conductor Screen

Name: High Temperature Resistant Low Smoke Zero Halogen LSZH Cable Copper Conductor Screen
Brand: Zhongdong Cable Co., Ltd.
SKU: NYBY NAYBY
Availability: InStock

Basic Properties

Place of Origin: Hebei，China

Brand Name: Low Smoke Zero Halogen LSZH Cable

Certification: IEC,CE,ISO,TUV

Model Number: NYBY NAYBY

Trading Properties

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: ,L/C,T/T

Supply Ability: 100KM/Week

Low Smoke Zero Halogen Power Cable

Low Smoke Halogen Free Cable

Specifications

Voltage:

300V, 500V, 450V, 750V

Jacket:

PVC Or XLPE

Feature:

LSZH

Application:

Underground, Overhead, Indoor, Mining And Power Distribution Etc

High Light:

High Temperature Resistant LSZH Cable

Copper Conductor Screen LSZH Cable

Product Description

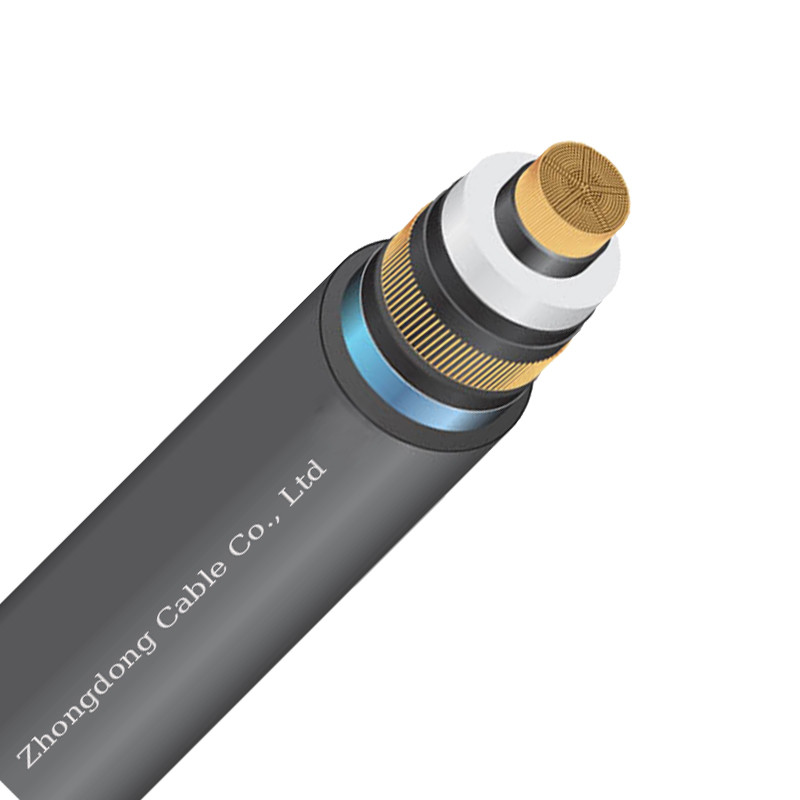

High Temperature Resistant Low Smoke Zero Halogen Cable Copper Conductor Screen

Application

The Cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial,aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions

Construction

Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :LSZH (Low Smoke Zero Halogen)
Screen :Copper
Armouring: Steel Tape
Sheath :LSZH (Low Smoke Zero Halogen)

Advantage

Composite high temperature resistance performance
Compressive and tensile strengthening
LSZH jacket
Anti bending and anti deformation
Electromagnetic and Environmental Adaptability
Low frequency interference shielding
Chemical corrosion protection
Direct burial without conduit
Extended lifespan

Specification

Nominal area		[mm²]	240	300	400	500	630	800	1000	1200	1600	2000	2500
Direct buried in ground		[A]	528	597	681	775	884	994	1169	1264	1456	1618	1706
Buried in duct		[A]	495	559	650	739	841	945	1106	1231	1415	1570	1656
In free air	Trefoil formation	[A]	605	692	800	922	1065	1208	1465	1595	1860	2089	2203
In free air	Flat formation	[A]	682	783	909	1053	1226	1406	1695	1849	2185	2487	2623
