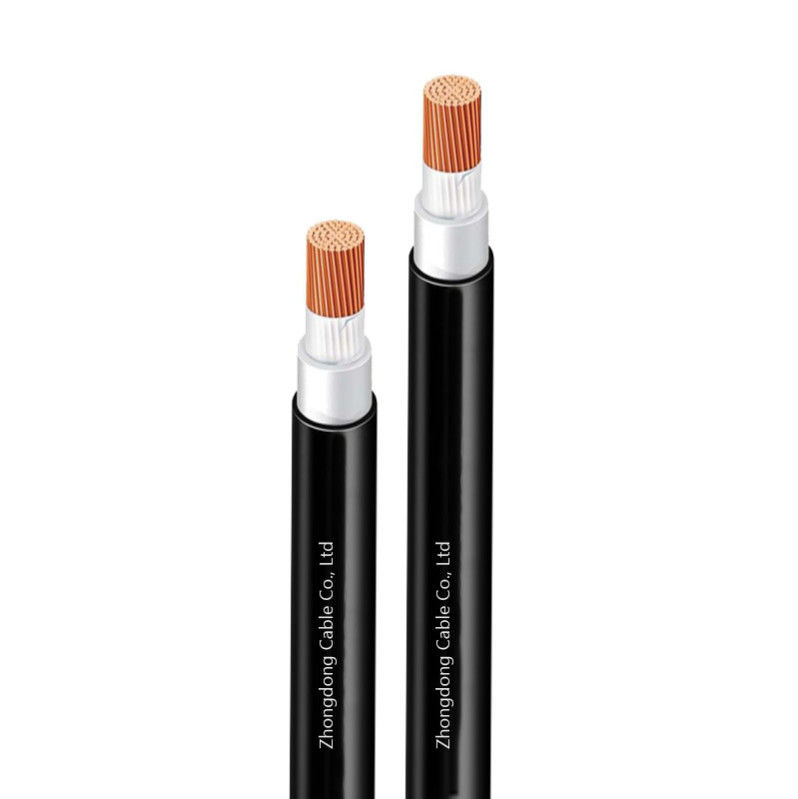

Single Core Low Voltage Low Smoke Zero Halogen Cable LSZH TUV Certificated
| Voltage: | 300V, 500V, 450V, 750V | Jacket: | PVC Or XLPE |
| Feature: | LSZH | Application: | Underground, Overhead, Indoor, Mining And Power Distribution Etc |
| High Light: | TUV Certificated Low Smoke Zero Halogen Cable,Low Voltage Low Smoke Zero Halogen Cable |
||
Single Core Low Voltage Low Smoke Zero Halogen Cable LSZH TUV Certificated
Application
The Cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial,aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions
Construction
- Conductor :Class 2 stranded copper conductor
- Insulation :XLPE (Cross-Linked Polyethylene)
- Bedding :LSZH (Low Smoke Zero Halogen)
- Armour :STA (Steel Tape Armour)
- Sheath :LSZH (Low Smoke Zero Halogen)
Advantage
- Composite high temperature resistance performance
- Compressive and tensile strengthening
- LSZH jacket
- Anti bending and anti deformation
- Electromagnetic and Environmental Adaptability
- Low frequency interference shielding
- Chemical corrosion protection
- Direct burial without conduit
- Extended lifespan
Specification
|
No of cores and cross area |
Number of wires/diameter of wires |
Thickness of Insulation |
Nominal outer diameter |
Weight |
|
0.5 |
16/0.20 |
0.6 |
2.12 |
9.0 |
|
0.5 |
28/0.15 |
0.6 |
2.12 |
9.0 |
|
0.75 |
24/0.20 |
0.6 |
2.33 |
12.0 |
|
0.75 |
42/0.15 |
0.6 |
2.33 |
12.0 |
|
1 |
32/0.20 |
0.6 |
2.5 |
15.0 |
|
1.5 |
48/0.20 |
0.7 |
3 |
20.9 |
|
1.5 |
30/0.25 |
0.7 |
2.98 |
20.9 |
|
2.5 |
49/0.25 |
0.8 |
3.62 |
32.5 |
|
2.5 |
77/0.20 |
0.8 |
3.63 |
32.5 |
|
4 |
56/0.30 |
0.8 |
4.2 |
50.1 |
|
6 |
84/0.30 |
0.8 |
4.78 |
71.7 |
|
10 |
84/0.40 |
1 |
6.23 |
125.1 |
|
16 |
126/0.40 |
1 |
7.88 |
179.3 |
|
25 |
19670.40 |
1.2 |
9.48 |
275.9 |
|
35 |
276/0.40 |
1.2 |
10.95 |
375.7 |
|
50 |
396/0.40 |
1.4 |
12.63 |
537.5 |
|
70 |
360/0.50 |
1.4 |
14.53 |
744.7 |
|
95 |
475/0.50 |
1.6 |
16.99 |
987.8 |
|
120 |
608/0.50 |
1.6 |
18.69 |
1242.6 |
|
150 |
764/0.50 |
1.8 |
21.70 |
1526.9 |
|
185 |
925/0.50 |
2.0 |
24.3 |
1874 |
|
240 |
1120/0.50 |
2.0 |
27.7 |
2456 |
