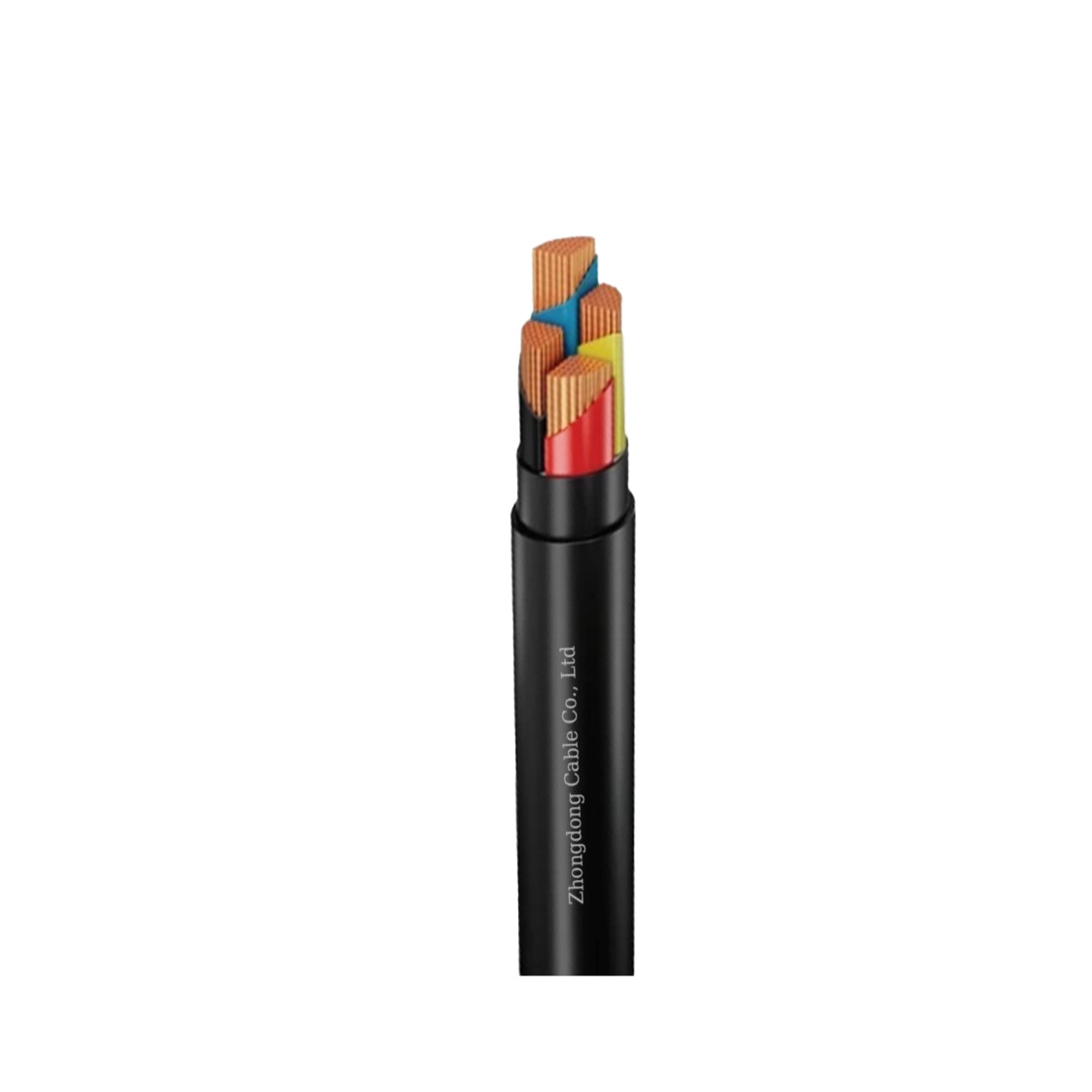

35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 0.6kv 1kV
| Voltage: | 0.6/ 1kV | Armoring: | No |
| Insulation: | PVC | Core: | Multi Cores |
| Temperature range: | - 30℃ To + 70℃ | Sheathed: | PVC |
| High Light: | 4 Core PVC Insulated Cable,35 sq mm PVC Insulated Cable,Copper Conductor PVC Insulated Cable |
||
35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 0.6/1kV
Application
The cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.
Construction
- Conductor: Copper
- Insulation:PVC
- sheath:PVC
Feature
- Rated Voltage Uo/U: 0.6/1 kV
- Maximum operating voltage: 1.2 kV
- Frequence: 50 Hz
- Test voltage :3500 V
- Permissible operating temperature at conductor:+70°C
- short circuit temperature ( duration max. 5 s):160 °C
- Minimum installation temperature: should not be lower than 0°C
- Max. conductor permissible tensile stress: 50 N/mm²
- Minimum bending radius: 15 x cable Ø
Specification
|
Nominal section area |
Approx. overall diameter |
Approx. weight of cable |
Maximum DC resistance of the conductor |
||
|
mm2 |
mm |
kg/km |
Ω/km |
||
|
|
|
Cu |
Al |
20℃ Cu |
20℃ Al |
|
4×1.5 RE |
11.4 |
177 |
– |
12.1 |
– |
|
4×2.5 RE |
12.4 |
226.9 |
164.7 |
7.41 |
12.1 |
|
4×4 RE |
14.5 |
320.2 |
220.7 |
4.61 |
7.41 |
|
4×6 RE |
15.7 |
424.1 |
274.9 |
3.08 |
4.61 |
|
4×10 CC |
18.2 |
607.6 |
358.9 |
1.83 |
3.08 |
|
4×16 CC |
20.6 |
861 |
463.1 |
1.15 |
1.91 |
|
4×25 CC |
24.5 |
1287.4 |
665.6 |
0.727 |
1.2 |
|
4×35 CC |
26.9 |
1687.4 |
816.9 |
0.524 |
0.868 |
|
4×50 SM |
28 |
2295.4 |
1051.8 |
0.387 |
0.641 |
|
4×70 SM |
31.6 |
3095.1 |
1354.1 |
0.268 |
0.443 |
|
4×95 SM |
35.9 |
4146 |
1783.2 |
0.193 |
0.32 |
|
4×120 SM |
38.5 |
5125.7 |
2141.1 |
0.153 |
0.253 |
|
4×150 SM |
42.8 |
6379.9 |
2649.2 |
0.124 |
0.206 |
|
4×185 SM |
48.4 |
7849.2 |
3248 |
0.0991 |
0.164 |
|
4×240 SM |
53.5 |
10084 |
4114.8 |
0.0754 |
0.125 |
|
4×300 SM |
59.2 |
12526.3 |
5064.8 |
0.0601 |
0.1 |
