Copper Conductor STA Armoured Fire Protection Cable XLPE Insulated PVC Sheathed
| Jacket Material: | PVC, LSZH, OFNP, PU | Model: | Fire Resistant Cable |
| Armor Type: | Steel Tape | Size: | 1.5mm2 -600mm2 |
| Range Of Application: | Flame Retardant | Sheath Material: | PVC |
| High Light: | Copper Conductor Armoured Fire Protection Cable,XLPE Insulated Fire Protection Cable |
||

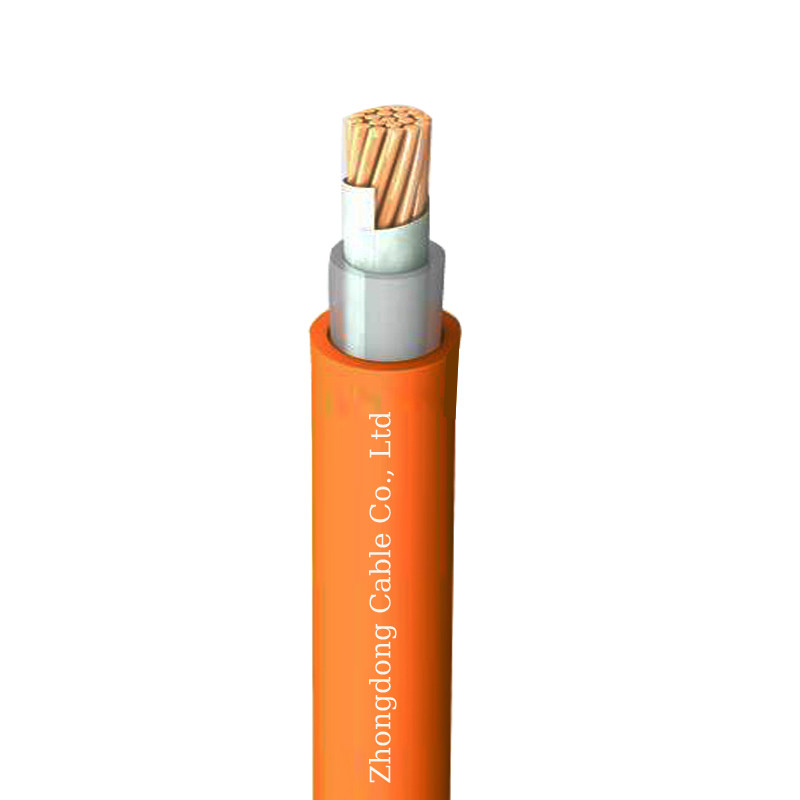

Copper Conductor STA Armoured Fire Resistant Cable XLPE Insulated PVC Sheathed Cable
Application
Our cables have been widely used in the energy field (power stations, nuclear power posts, urban and rural power grids, coal mines, petrochemicals, etc.), transportation field (civil aviation, nuclear power plant) network, coal mine, petrochemicals, etc.), transportation field (civil aviation airports, railroads and urban rail transportation, ships and transportation field (civil aviation, airport, railway and urban railway transportation, ships and ports, etc.), engineering field (engineering construction, steel, metallurgy, construction, etc.) Iron, metallurgy, construction, etc.) of key projects.
Construction
- Conductor: Plain Annealed copper conducto
- Mica tape:Each individual conductor is wrapped mica tape which can withstand the flame temperature up to 1100 °C.
- Insulation:Cross-linked polyethylene (XLPE)
- Amour:Steel wire amoured
Characteristic
- Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
- Temperature range in motion -5°C till +70°C
- fixed -20°C till +70°C
- Operating temperature short circuit °C 250
- Short circuit time max. [sec] 5
- Bending radius min. x diameter 15
- Flammability standard EN 60332-1-2
Product range
|
No of Core |
Nominal Sectional Area |
Conductor Diameter (Approx) |
Nominal Insulation Thickness |
Inner Sheath Thickness |
Inner Sheath Diameter (Approx) |
Aluminium Wire Diameter |
Outer Sheath Thickness |
Overall Diameter (Approx) |
Cable Weight (Approx) |
Max.Conductor Resistance. DC at 20°C |
Current Carrying Capacity In Air at 30°C |
Voltage Drop |
Short Circuit Current for 1 sec |
|
Nos |
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
A |
mV/A/m |
kA |
|
1 |
16 |
4.74 |
0.7 |
1 |
8.7 |
1.04 |
1.8 |
14.4 |
368 |
1.15 |
- |
- |
2.29 |
|
25 |
5.97 |
0.9 |
1 |
10.3 |
16.1 |
495 |
0.727 |
3.58 |
|||||
|
35 |
7.1 |
0.9 |
1 |
11.4 |
1.25 |
17.6 |
633 |
0.524 |
5.01 |
||||
|
50 |
8.1 |
1 |
1 |
12.6 |
18.8 |
780 |
0.387 |
222 |
0.87 |
7.15 |
|||
|
70 |
9.74 |
1.1 |
1 |
14.5 |
20.7 |
1029 |
0.268 |
285 |
0.62 |
10.02 |
|||
|
95 |
11.46 |
1.1 |
1 |
16.2 |
1.6 |
23.4 |
1376 |
0.193 |
346 |
0.47 |
13.59 |
||
|
120 |
12.93 |
1.2 |
1 |
17.9 |
25.1 |
1678 |
0.153 |
402 |
0.39 |
17.17 |
|||
|
150 |
14.33 |
1.4 |
1 |
19.7 |
27 |
2038 |
0.124 |
462 |
0.33 |
21.46 |
|||
|
185 |
16.05 |
1.6 |
1 |
21.8 |
1.9 |
29.4 |
2418 |
0.0991 |
524 |
0.28 |
26.47 |
||
|
240 |
18.43 |
1.7 |
1 |
24.4 |
2 |
32.1 |
3025 |
0.0754 |
612 |
0.24 |
34.34 |
||
|
300 |
20.64 |
1.8 |
1 |
26.8 |
2 |
2.1 |
35.5 |
3810 |
0.0601 |
700 |
0.21 |
42.93 |
|
|
400 |
23.34 |
2 |
1.2 |
30.3 |
2.2 |
39.2 |
4774 |
0.047 |
767 |
0.195 |
57.23 |
||
|
500 |
26.21 |
2.2 |
1.2 |
33.6 |
2.35 |
42.8 |
5879 |
0.0366 |
851 |
0.18 |
71.54 |
||
|
630 |
29.8 |
2.4 |
1.2 |
37.6 |
2.45 |
47 |
7438 |
0.0283 |
935 |
0.17 |
90.14 |
