Medium Voltage Low Smoke Zero Halogen Power Cable 18/30 36kV 19/33 36 KV 3 Core
| Conductor Material: | Copper | Insulation Material: | Xlpe |
| Jacket: | PVC | Type: | LOW VOLTAGE |
| High temperature: | 90 °C | core: | 1 Core, 2 Core,3 Core,4 Core,5 Core |
| High Light: | 3 Core Low Smoke Zero Halogen Power Cable,Medium Voltage Lszh Power Cable,36 KV Lszh Power Cable |
||
Medium Voltage Low Smoke Zero Halogen Cable 18/30 36kV 19/33 36 KV 3 Core
Application
- Industrial Automation & Process Control:
- Hazardous Environments
- Public Infrastructure
- Building Management Systems
- Transportation Networks
- Renewable Energy
Characteristics
- LSZH sheathing resists flame spread and reduces smoke density.
- Copper/aluminum shielding ensures signal accuracy in noisy environments.
- Halogen-free construction aligns with IEC 60092, IEEE 802.3, and RoHS standards.

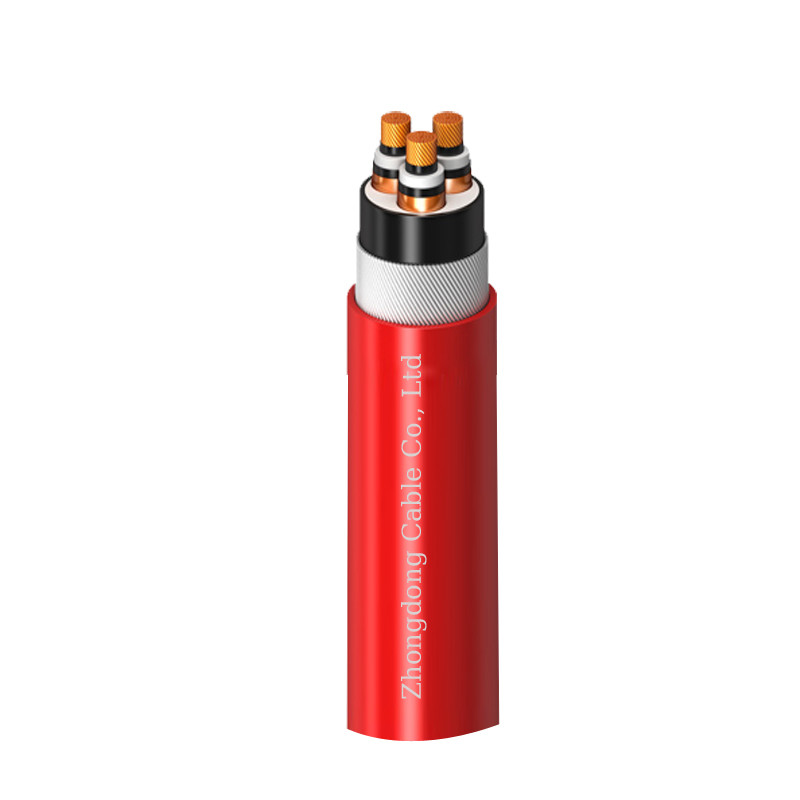

Construction
Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :LSZH (Low Smoke Zero Halogen)
Armour :SWA (Steel Wire Armour)
Sheath :LSZH (Low Smoke Zero Halogen)
Specification
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC |
Armored wire diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approoximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
|
|
bedding thickness (mm) |
|
|
|
|
|
|
50 |
Compact round |
8.4 |
8 |
0.1 |
1.8 |
3.15 |
3.5 |
77.3 |
9333 |
8390 |
|
70 |
Compact round |
10 |
8 |
0.1 |
1.8 |
3.15 |
3.6 |
80.9 |
10396 |
9075 |
|
95 |
Compact round |
11.7 |
8 |
0.1 |
1.9 |
3.15 |
3.7 |
85 |
11723 |
9930 |
|
120 |
Compact round |
13.1 |
8 |
0.1 |
2 |
3.15 |
3.8 |
88.4 |
12986 |
10720 |
|
150 |
Compact round |
14.6 |
8 |
0.1 |
2 |
3.15 |
3.9 |
91.8 |
14220 |
11388 |
|
185 |
Compact round |
16.3 |
8 |
0.1 |
2.1 |
3.15 |
4 |
95.9 |
15887 |
12395 |
|
240 |
Compact round |
18.5 |
8 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
18144 |
13613 |
|
300 |
Compact round |
20.7 |
8 |
0.1 |
2.3 |
3.15 |
4.4 |
107 |
20761 |
15097 |
|
400 |
Compact round |
23.8 |
8 |
0.1 |
2.4 |
3.15 |
4.6 |
114.3 |
24824 |
17273 |
|
500 |
Compact round |
26.6 |
8 |
0.1 |
2.5 |
3.15 |
4.8 |
122.2 |
29019 |
19580 |
