OEM Single Core 1000V 600V Low Voltage Cable With Copper Conductor PVC Insulation

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CCC,TUV,CE,VDE
Model Number:	Low Voltage

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/WEEK

Get Best Price Contact Now

Detail Information

Insulation Material:	PVC	Application:	Construction
Conductor Material:	Copper	Sheath:	PVC
Cores:	1 Core	Armour:	Unarmoured
Highlight:	OEM 600V Low Voltage Cable , PVC Insulation Low Voltage Cable

Product Description

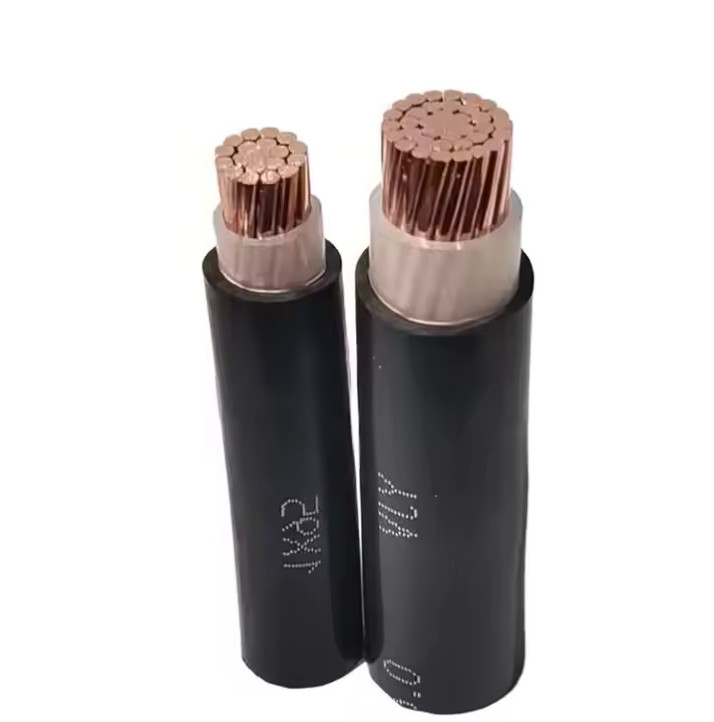

Single Core 0.6/1 KV Low Voltage Cable Copper Conductor PVC Insulation

Applications

Single-core low-voltage cables (typically 300/500V to 1.8/3kV) are widely used in:

Building Wiring – Power distribution in residential, commercial, and industrial buildings.

Control & Instrumentation Circuits – Connecting sensors, switches, and control panels.

Lighting & Electrical Installations – Fixed wiring for lights, sockets, and appliances.

Machinery & Equipment – Internal wiring for motors, transformers, and switchgear.

Construction

1,copper conductor 2, pvc Insulation 3, PVC overs

Specification

Number of conductors and nominal cross-section, mm2	Nominal outer diameter, mm	Estimated weight of 1 km of cables, kg
1 x 10	9,9	167
1 x 16	10,6	225
1 x 25	12,9	347
1 x 35	14,1	445
1 x 50	16,9	619
1 x 70	19,7	828
1 x 95	22,7	1129
1 x 120	23,7	1347
1 x 150	28	1735
1 x 185	29,6	2075
1 x 240	33,8	2690
1 x 300	37,4	3296
1 x 400	41,2	4294
