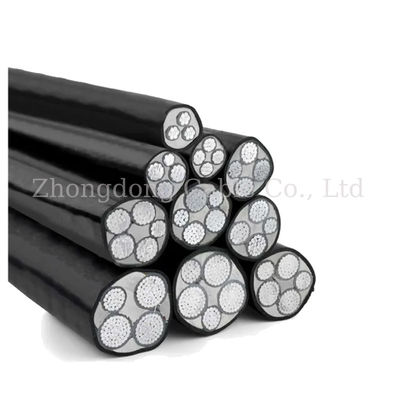

LV PVC Fire Proof Aerial Bundled Cable ABC Overhead Electrical Cable for Power Transmission
| Application: | Overhead Distribution Line | Cores Nos: | 1,2,3,4 More Multicore |
| Rated Voltage: | 0.6/1 KV | Installation Degree: | -20℃-90℃ |
| Neutral Messengers: | AAC Or ACSR | Insulation: | XLPE/PE/PVC |
| High Light: | Fire Proof Aerial Bundled Cable ABC,Power Transmission Overhead Electrical Cable |
||
Low Voltage PVC Fire Proof Aerial Bundled Cable ABC Overhead Electrical Lines for Power Transmission
Applicatiom
Low voltage aerial cable is designed to supply 600/1000-volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. This over-head cable provides reinforced insulation acc.
Characteristics
Voltage rating: 1kV
Test voltage: 4kV, 5min no breakdown.
Operating temperature
PVC: -15°C to +70°C
PE: -40°C to +70°C
XLPE : -40°C to +90°C
Minimum laying/ installation temperature
PVC: 0°C PE: -20°C XLPE: -20°C
Note: The above temperature rating provisions can be changed as order.
Minimum bending radius
12 x OD (overall diameter)
Specification
|
Cable Dimensions of Aluminum Conductor Aerial Overhead Wires |
|||
|
Nominal Cross |
Max. DC Resistance of |
Current Carrying Capacity |
Minimum Tensile |
|
25 |
1.2 |
107 |
4.1 |
|
35 |
0.868 |
132 |
5.6 |
|
50 |
0.641 |
165 |
7.6 |
|
70 |
0.443 |
205 |
11.0 |
|
95 |
0.320 |
258 |
15.3 |
|
120 |
0.253 |
300 |
19.4 |
-
