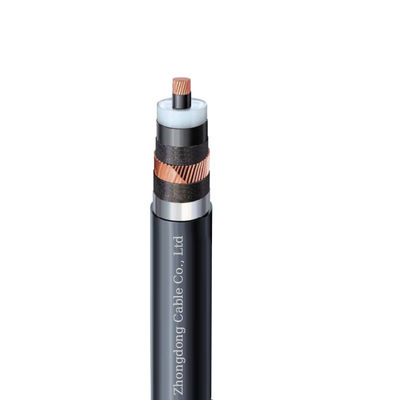

XLPE Insulated Low Smoke Halogen Free Cable Amoured 1900 3300V Single Core
| Conductor Type: | Stranded | Package: | Steel Wooden Drum |
| Type: | Medium Voltage | Feature: | Eco Friendly |
| Standard: | IEC60227,IEC60754 | Outer Sheath: | LSZH |
| High Light: | XLPE Insulated Lszh Single Core Cable,3300V Low Smoke Halogen Free Cable |
||
XLPE Insulated Low Smoke Zero Halogen Cable Amoured 1900 3300V
Application
Low smoke zero halogen cables are becoming more popular in military applications, aircraft, railway and maritime. This is because in these areas it is often difficult to ventilate in the event of a fire..
Besides, Low smoke halogen free material is also widely used in high pressure underground tunnels or track marking lines in railway system. when using them, reduces the possibility of harmful gases accumulating in the event of a fire. In case of fire, LSZH cable jacket helps protect personnel from flames, smoke and noxious gases emitted.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper
- Insulation: XLPE
- Filler:Non-hygroscopic material
- Binder tape:: Non-hygroscopic material
- Amouring steel wire
- Sheath: PVC
Advantage
- High heat-resistant flame retardant
- Halogen-free
- Climate resistance
- Minimum bending radius: Φ ≦ 12mm:3XD Φ > 12mm:4XD
- Customizable Options Available
- Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
- Short Circuit Temperature: 200℃/5 sec
Specification for single core
|
Conductor Area |
Approximate Diameter |
Approximate cable |
Maximum armour |
Maximum conduc- |
Free air(Method 12) |
||
|
Under |
Armour wire |
Overall |
Current Rating Amps |
||||
|
mm ² |
mm |
mm |
mm |
kg/km |
Ohm/km |
Ohm/km |
|
|
V Copper Power Cables 1900/3300 |
Three cable in Trefoil |
||||||
|
50 |
15.0 |
1.6* |
20.6 |
810 |
0.75 |
0.387 |
228 |
|
70 |
16.6 |
1.6* |
22.4 |
1040 |
0.67 |
0.268 |
285 |
|
95 |
18.4 |
1.6* |
24.3 |
1330 |
0.61 |
0.193 |
350 |
|
120 |
19.8 |
1.6 |
27.2 |
1680 |
0.42 |
0.153 |
407 |
|
150 |
21.2 |
1.6 |
28.8 |
1970 |
0.39 |
0.124 |
463 |
|
185 |
23.0 |
1.6 |
30.8 |
2370 |
0.37 |
0.0991 |
528 |
|
240 |
25.5 |
1.6 |
33.5 |
2960 |
0.34 |
0.0754 |
623 |
|
300 |
27.7 |
1.6 |
36.1 |
3610 |
0.31 |
0.0601 |
710 |
|
400 |
31.0 |
2.0 |
40.5 |
4600 |
0.22 |
0.0470 |
808 |
|
500 |
36.0 |
2.0 |
44.2 |
5680 |
0.20 |
0.0366 |
915 |
|
630 |
40.0 |
2.0 |
48.8 |
7160 |
0.18 |
0.0283 |
1030 |
|
800 |
45.8 |
2.5 |
55.4 |
9150 |
0.13 |
0.0221 |
1119 |
|
1000 |
50.8 |
2.5 |
60.6 |
11270 |
0.12 |
0.0176 |
1214 |
