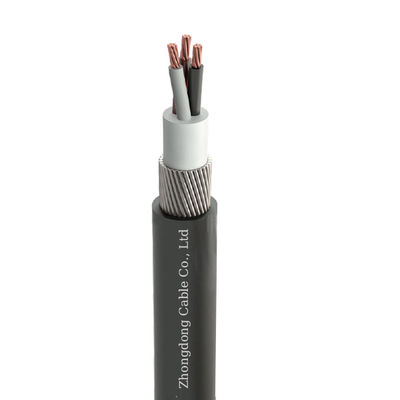

Three Core LSZH Low Smoke Zero Halogen Cable With Copper Conductor 600V Voltage

Basic Properties

Place of Origin: Hebei，China

Brand Name: LSZH Low Smoke Zero Halogen Cable

Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Trading Properties

Minimum Order Quantity: To be negotiated

Price: To be negotiated

Payment Terms: L/C,T/T

Supply Ability: 100KM/Week

Low Smoke Zero Halogen Power Cable

Low Smoke Halogen Free Cable

Specifications

Jacket:	PVC	Performance:	Good Flame Retardant Property
Usage:	Theatre, Power Station	Sheath Colour:	Customized
Screen:	AL/PET (Aluminium/Polyester Tape)	Insualtion:	XLPE
High Light:	Three Core Low Smoke Zero Halogen Cable , 600V Low Smoke Zero Halogen Cable , 600V Copper Conductor LSZH Cable

Product Description

Three core Low Smoke Zero Halogen Cable Copper Conductor For 600V Voltage

Application

Low smoke zero halogen cables are becoming more popular in military applications, aircraft, railway and maritime. This is because in these areas it is often difficult to ventilate in the event of a fire..

Besides, Low smoke halogen free material is also widely used in high pressure underground tunnels or track marking lines in railway system. when using them, reduces the possibility of harmful gases accumulating in the event of a fire. In case of fire, LSZH cable jacket helps protect personnel from flames, smoke and noxious gases emitted.

Construction

Conductor:Circular, solid, compacted or sector shaped stranded Copper
Insulation: XLPE
Filler:Non-hygroscopic material
Binder tape:: Non-hygroscopic material
Amouring steel wire
Sheath: PVC

Advantage

Free of halogens: Low Smoke Zero Halogen cables are made with environmentally friendly insulation, coating and special materials. This means that it not only has good electrical and physical-mechanical properties, but also avoid secondary pollution by toxic combustion gases.
Low smoke emission and low toxicity: This type of cable uses special new sheathing materials. So, no toxic gases are produced during its production and use and it does not pollute the environment. The use of low-smoke, zero-halogen cables is essential in areas with special needs and where there is a high concentration of people.
Environmentally friendly: LSZH cable insulation and sheath do not contain heavy metals harmful to human, like lead and cadmium. And the cable is disposed of without contaminating the soil or water. It is more environmentally friendly than conventional cables. So, also known as green cable.
High flame retardancy: Green cables can meet the high fire requirements of buildings. The LSZH wires and cables are not easily combustible and prevent the spread of fire and the spread of disasters.. Especially in high-rise buildings, the use of LSZH cables can increase the rescue time and reduce the danger of harmful gases to people.

Specification

Conductor Area	Approximate Diameter			Approximate cableWt	Maximum armour resistance at 20C	Maximum conductor resistance at 20C	(Free air (Method 13
Conductor Area	Under Armour	Armour wire Dia	Overall	Approximate cableWt	Maximum armour resistance at 20C	Maximum conductor resistance at 20C	Current Rating	Volt Drop Per Amp per Metre
mm²	mm	mm	mm	kg/km	Ohm/km	Ohm/km	Amp	mV/A/m
VCopper Power and Control Cables 600/1000							Three phase a.c
1.5	8.3	0.9	12.4	320	9.5	12.1	25	27
2.5	9.6	0.9	13.5	390	8.2	7.41	33	16
4	10.4	0.9	14.5	470	7.5	4.61	44	10
6	11.6	0.9	16.0	565	6.7	3.08	56	6.8
10	13.6	1.25	19.0	850	4.0	1.83	78	4.0
16	16.0	1.25	21.6	1130	3.5	1.15	99	2.5
25	20.0	1.6	26.7	1710	2.5	0.727	131	1.65
35	22.7	1.6	29.4	2100	2.3	0.524	162	1.15
50	23.0	1.6	28.5	2450	2.0	0.387	197	0.87
70	26.0	1.6	32.2	3120	1.8	0.268	251	0.60
95	30.0	2.0	37.0	4310	1.3	0.193	304	0.45
120	32.8	2.0	40.4	5160	1.2	0.153	353	0.37
150	36.8	2.5	45.5	7160	0.78	0.124	406	0.30
185	41.5	2.5	49.8	8600	0.71	0.0991	463	0.26
240	46.0	2.5	55.1	10755	0.63	0.0754	546	0.21
300	51.5	2.5	60.2	13080	0.58	0.0601	628	0.185
400	56.4	2.5	66.6	15810	0.52	0.0470	728	0.165
